UVLO

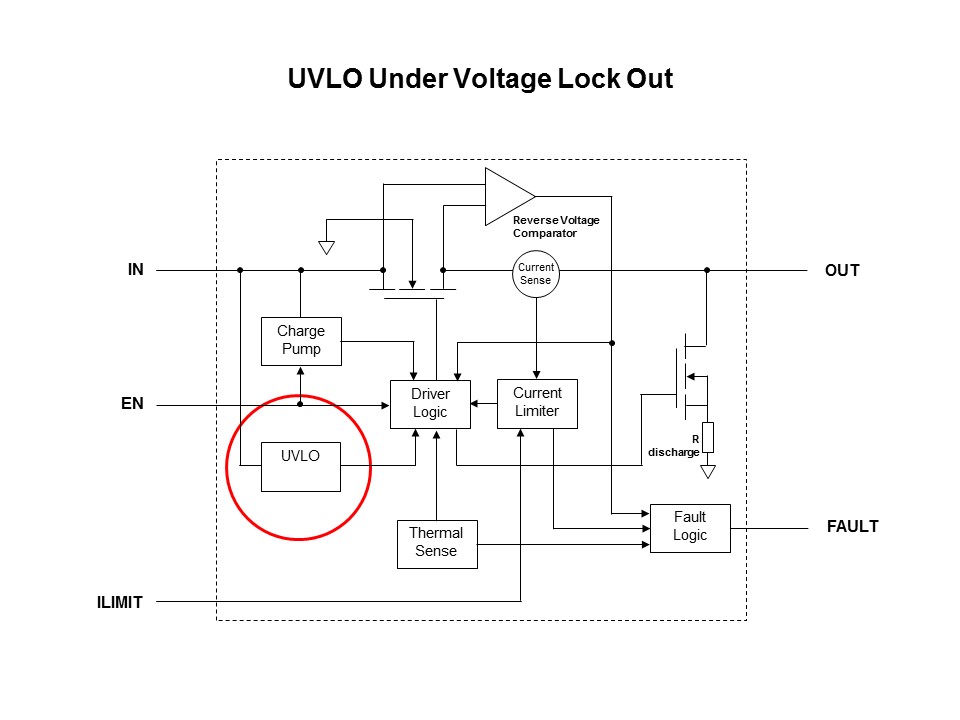

Sometimes even with the charge pump, the voltage may still be too low for the FET to operate correctly. In this case, it is useful to have a protection circuit called the Under Voltage Lock Out, which shuts down the entire load switch if the supply voltage is too low.
