Safety

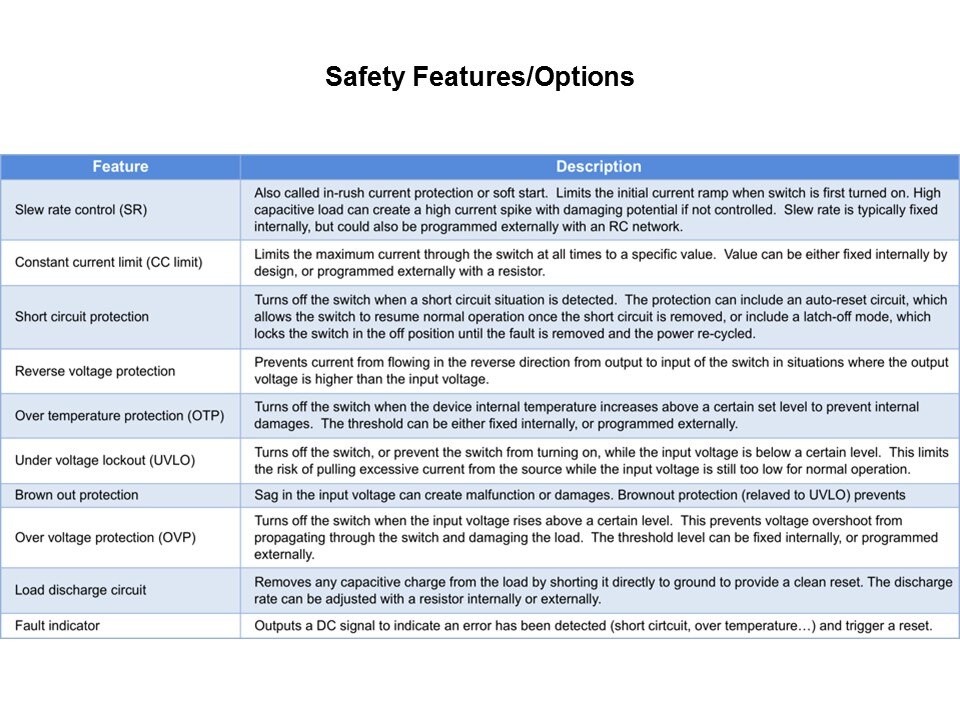

This list summarizes the load switch features just discussed as well as several others, such as Overvoltage protection, Brown Out protection and Short Circuit Protection. Some advanced load switches now feature Constant Current Limit where the output of the load switch will maintain a regulated current instead of disconnecting at a current limit.

PTM Published on: 2014-03-21
