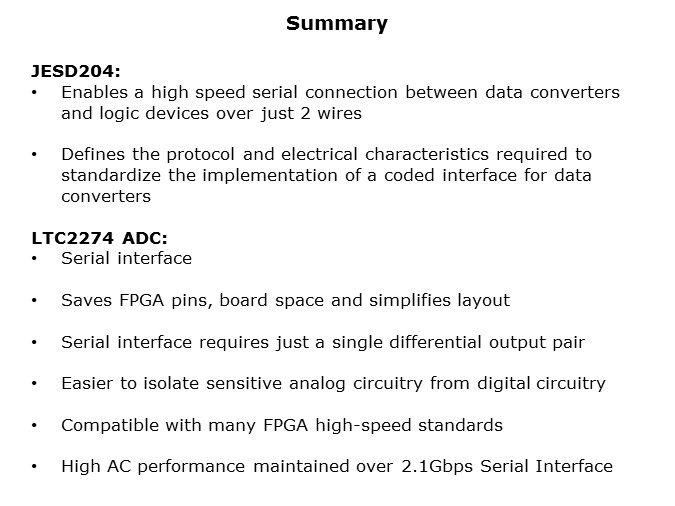

LTC2274-Slide13

In summary, Analog Devices' LTC2274 is a 105Msps, 16-bit A/D converter with a high-speed serial interface that is designed for digitizing high frequency, wide dynamic range signals with an input bandwidth of 700MHz. In addition to these features, the ADC’s serial interface meets JESD204 specifications, which makes it compatible with many FPGAs and other high-speed ASICs.

PTM Published on: 2011-05-19
