LTC2274-Slide11

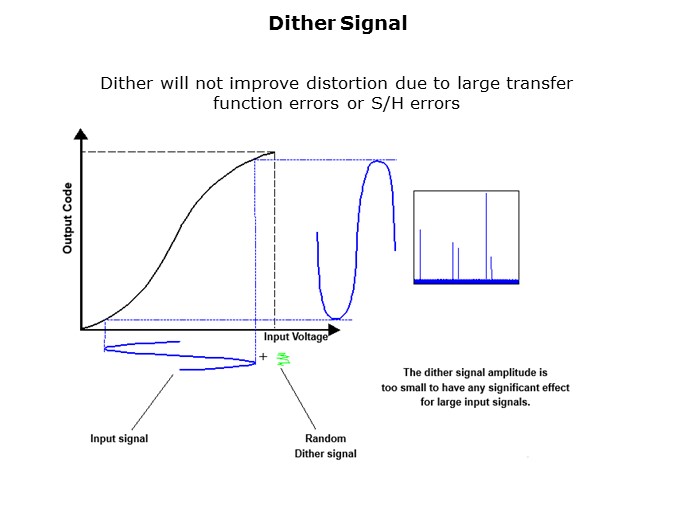

One thing to note is that dither provides no improvement for full scale input signals and gross errors in the transfer function. Fortunately, the LTC2274 has good DC specifications of ±4.5LSB max INL (integral nonlinearity) error and ±1LSB max DNL (differential nonlinearity) error, which help to maintain high AC performance over frequency.

PTM Published on: 2011-05-19
