LTC2274-Slide12

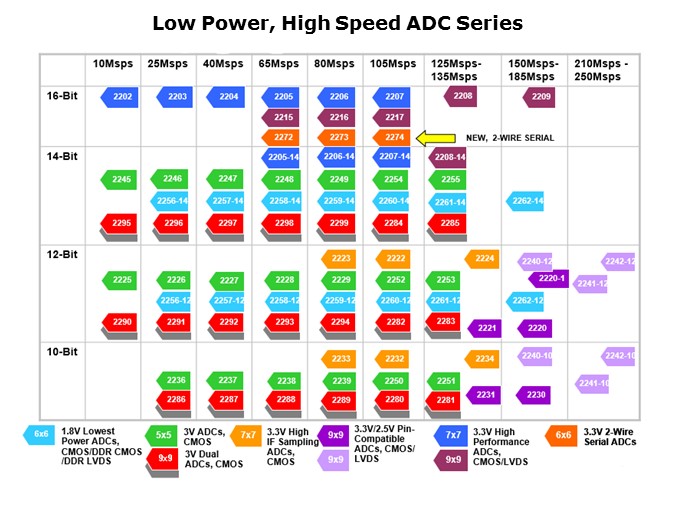

Analog Devices has an expansive family of high-speed, pipelined ADCs offering the combination of lowest power, smallest size and highest performance across resolution and sampling rate. Each color in this chart represents a pin-compatible family, allowing easy product migration between various speeds and resolutions. The pin-compatible LTC2272, LTC2273, and LTC2274 serial ADCs are shown in orange. Analog Devices has also recently released the LTC2261 ultra-low power ADC family, which consumes only 30mW at 25Msps and 127mW at 125Msps. These are also offered in a 6mm x 6mm QFN package and are shown in light blue above.

PTM Published on: 2011-05-19
