SRN Series Semi-Shielded Power Inductors
Bourns offers their SRN series of semi-shielded power inductors
Bourns introduces eight new semi-shielded power inductor series - models SRN2010, SRN2012, SRN2510, SRN2512, SRN4012, SRN4026, SRN5040 and SRN6028, designed using semi-magnetic shielding technology. Instead of the conventional ferrite shield, the magnetic shield of the SRN series utilizes an epoxy-ferrite powder mixture resin. This compound is applied to the perimeter of the inductor which envelops the winding. As a result, the SRN model series inductors provide an effective magnetic shielding while emitting lower radiation compared to non-shielded inductors. In addition, the models offer a reduced footprint and cost savings to comparably-sized conventional ferrite shield inductors.
The semi-shielded SRN model series combines the features of non-shielded and shielded inductors, making them ideal for use in DC/DC converters which provide power management to mobile electronic devices, computers, data storage devices and consumer electronics. The SRN series is also well-suited for industrial applications such as LED lighting, control circuits and GPS.
Features
- Semi-shielded construction
- High inductance
- Inductance range: 0.24 μH to 220 μH
- High rated current - Irms up to 4.7 A, Isat up to 8 A
- RoHS compliant and halogen free
Applications
- DC/DC converters
- Notebook computers
- Data storage devices
- Digital video cameras
- Televisions, LCD displays
- LED lighting

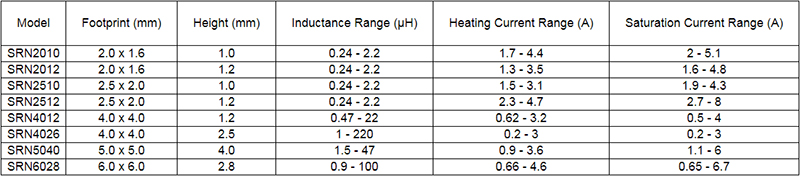

Specifications
SRN2010 Series
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Shielding | Available Quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
 |  | SRN2010-R24M | FIXED IND 240NH 4.4A 28 MOHM SMD | 4.4 A | Shielded | 468 - Immediate | $0.21 | View Details |
| | SRN2010-R47M | FIXED IND 470NH 3.3A 42 MOHM SMD | 3.3 A | Shielded | 43721 - Immediate | $0.21 | View Details |
| | SRN2010-1R0M | FIXED IND 1UH 2.4A 72 MOHM SMD | 2.4 A | Shielded | 1080 - Immediate | $0.21 | View Details |
| | SRN2010-2R2M | FIXED IND 2.2UH 1.7A 170 MOHM | 1.7 A | Shielded | 4577 - Immediate | $0.21 | View Details |
SRN2012 Series
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Shielding | Available Quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
|  | SRN2012-R24M | FIXED IND 240NH 3.5A 33 MOHM SMD | 3.5 A | Shielded | 0 - Immediate | $0.21 | View Details |
| | SRN2012-R47M | FIXED IND 470NH 2.9A 46 MOHM SMD | 2.9 A | Shielded | 0 - Immediate | $0.21 | View Details |
| | SRN2012-1R0M | FIXED IND 1UH 2.3A 104 MOHM SMD | 2.3 A | Shielded | 656 - Immediate | $0.21 | View Details |
| | SRN2012-1R5M | FIXED IND 1.5UH 1.8A 108 MOHM | 1.8 A | Shielded | 1359 - Immediate | $0.21 | View Details |
| | SRN2012-2R2M | FIXED IND 2.2UH 1.3A 186 MOHM | 1.3 A | Shielded | 3404 - Immediate | $0.21 | View Details |
SRN2510 Series
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Shielding | Available Quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
|  | SRN2510-R47M | FIXED IND 470NH 3.1A 42 MOHM SMD | 3.1 A | Shielded | 1050 - Immediate | $0.21 | View Details |
| | SRN2510-1R0M | FIXED IND 1UH 2.2A 80 MOHM SMD | 2.2 A | Shielded | 0 - Immediate | $0.21 | View Details |
| | SRN2510-2R2M | FIXED IND 2.2UH 1.5A 169 MOHM | 1.5 A | Shielded | 874 - Immediate | $0.21 | View Details |
SRN2512 Series
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Shielding | Available Quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
|  | SRN2512-R24M | FIXED IND 240NH 4.7A 24 MOHM SMD | 4.7 A | Shielded | 3299 - Immediate | $0.21 | View Details |
| | SRN2512-R33M | FIXED IND 330NH 4.5A 32 MOHM SMD | 4.5 A | Shielded | 0 - Immediate | $0.21 | View Details |
| | SRN2512-R47M | FIXED IND 470NH 4.4A 32 MOHM SMD | 4.4 A | Shielded | 0 - Immediate | $0.21 | View Details |
| | SRN2512-R68M | FIXED IND 680NH 3.6A 43 MOHM SMD | 3.6 A | Shielded | 2629 - Immediate | $0.21 | View Details |
| | SRN2512-1R0M | FIXED IND 1UH 3.5A 57 MOHM SMD | 3.5 A | Shielded | 4655 - Immediate | $0.21 | View Details |
| | SRN2512-1R5M | FIXED IND 1.5UH 2.5A 96 MOHM SMD | 2.5 A | Shielded | 728 - Immediate | $0.21 | View Details |
| | SRN2512-2R2M | FIXED IND 2.2UH 2.3A 102 MOHM | 2.3 A | Shielded | 1437 - Immediate | $0.21 | View Details |
SRN4026 Series
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Shielding | Available Quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
|  | SRN4026-1R0Y | FIXED IND 1UH 3A 16 MOHM SMD | 3 A | Shielded | 12051 - Immediate | $0.27 | View Details |
| | SRN4026-1R2Y | FIXED IND 1.2UH 2.75A 24 MOHM | 2.75 A | Shielded | 1975 - Immediate | $0.27 | View Details |
| | SRN4026-2R2Y | FIXED IND 2.2UH 2.1A 29 MOHM SMD | 2.1 A | Shielded | 16935 - Immediate | $0.27 | View Details |
| | SRN4026-3R3M | FIXED IND 3.3UH 1.6A 36 MOHM SMD | 1.6 A | Shielded | 823 - Immediate | $0.27 | View Details |
| | SRN4026-4R7M | FIXED IND 4.7UH 1.4A 48 MOHM SMD | 1.4 A | Shielded | 9 - Immediate | $0.27 | View Details |
| | SRN4026-6R8M | FIXED IND 6.8UH 1.2A 84 MOHM SMD | 1.2 A | Shielded | 2970 - Immediate | $0.27 | View Details |
| | SRN4026-100M | FIXED IND 10UH 970MA 102 MOHM | 970 mA | Shielded | 574 - Immediate | $0.27 | View Details |
| | SRN4026-150M | FIXED IND 15UH 770MA 144 MOHM | 770 mA | Shielded | 5886 - Immediate | $0.27 | View Details |
| | SRN4026-220M | FIXED IND 22UH 670MA 234 MOHM | 670 mA | Shielded | 11468 - Immediate | $0.27 | View Details |
| | SRN4026-330M | FIXED IND 33UH 500MA 366 MOHM | 500 mA | Shielded | 42099 - Immediate | $0.27 | View Details |
| | SRN4026-470M | FIXED IND 47UH 400MA 594 MOHM | 400 mA | Shielded | 9 - Immediate | $0.27 | View Details |
| | SRN4026-680M | FIXED IND 68UH 350MA 852 MOHM | 350 mA | Shielded | 2536 - Immediate | $0.27 | View Details |
| | SRN4026-101M | FIXED IND 100UH 300MA 1.2 OHM | 300 mA | Shielded | 3403 - Immediate | $0.27 | View Details |
| | SRN4026-151M | FIXED IND 150UH 220MA 1.92 OHM | 220 mA | Shielded | 13094 - Immediate | $0.27 | View Details |
| | SRN4026-221M | FIXED IND 220UH 200MA 2.76 OHM | 200 mA | Shielded | 3186 - Immediate | $0.27 | View Details |
SRN5040 Series
| Image | Manufacturer Part Number | Description | Current Rating (Amps) | Shielding | Available Quantity | Price | ||
|---|---|---|---|---|---|---|---|---|
|  | SRN5040-1R5Y | FIXED IND 1.5UH 3.6A 18 MOHM SMD | 3.6 A | Shielded | 2090 - Immediate | $0.29 | View Details |
| | SRN5040-2R2Y | FIXED IND 2.2UH 3.5A 21 MOHM SMD | 3.5 A | Shielded | 7106 - Immediate | $0.29 | View Details |
| | SRN5040-3R3M | FIXED IND 3.3UH 3.3A 27 MOHM SMD | 3.3 A | Shielded | 5736 - Immediate | $0.29 | View Details |
| | SRN5040-4R7M | FIXED IND 4.7UH 3.1A 35 MOHM SMD | 3.1 A | Shielded | 499 - Immediate | $0.29 | View Details |
| | SRN5040-6R8M | FIXED IND 6.8UH 2.3A 59 MOHM SMD | 2.3 A | Shielded | 0 - Immediate | $0.29 | View Details |
| | SRN5040-8R2M | FIXED IND 8.2UH 2.2A 65 MOHM SMD | 2.2 A | Shielded | 4019 - Immediate | $0.29 | View Details |
| | SRN5040-100M | FIXED IND 10UH 2.1A 68 MOHM SMD | 2.1 A | Shielded | 8 - Immediate | $0.29 | View Details |
| | SRN5040-150M | FIXED IND 15UH 1.8A 96 MOHM SMD | 1.8 A | Shielded | 3198 - Immediate | $0.29 | View Details |
| | SRN5040-220M | FIXED IND 22UH 1.4A 152 MOHM SMD | 1.4 A | Shielded | 5849 - Immediate | $0.29 | View Details |
| | SRN5040-270M | FIXED IND 27UH 1.3A 198 MOHM SMD | 1.3 A | Shielded | 5525 - Immediate | $0.29 | View Details |
| | SRN5040-330M | FIXED IND 33UH 1.2A 216 MOHM SMD | 1.2 A | Shielded | 361 - Immediate | $0.29 | View Details |
| | SRN5040-470M | FIXED IND 47UH 900MA 324 MOHM | 900 mA | Shielded | 18616 - Immediate | $0.29 | View Details |
Published: 2014-07-17
