Current Sense Resistors Slide 7

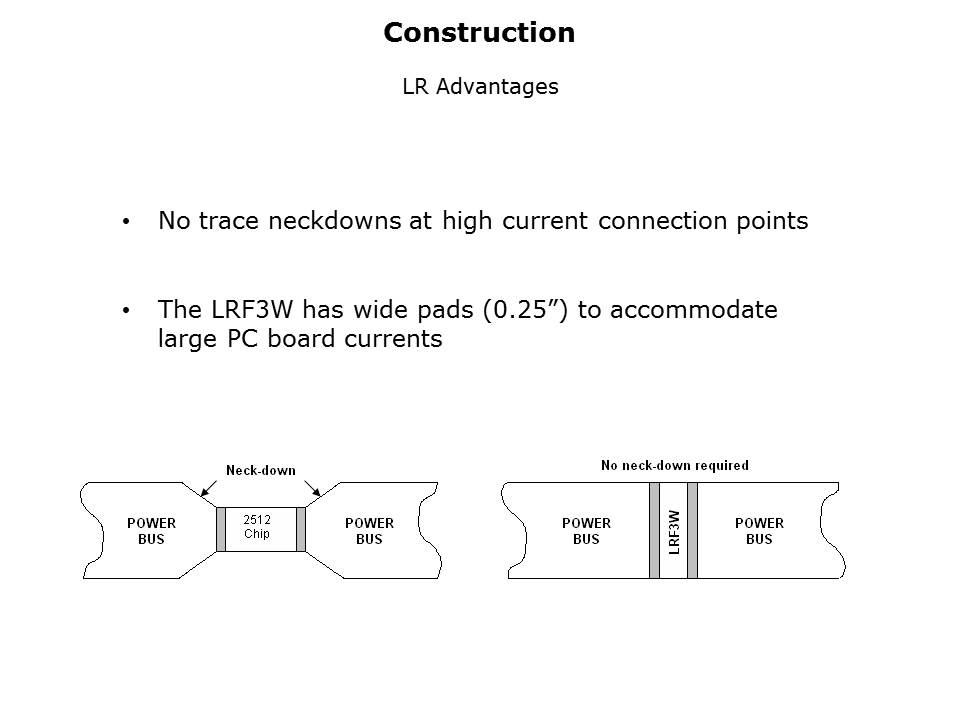

The “necked down” region of the circuit board trace requires the use of thicker copper to carry the current to the resistor, whereas a 1225 aspect ratio does not require the trace to be reduced. This improves the overall performance of the circuit and simplifies the PC board layout.
