Current Sense Resistors Slide 16

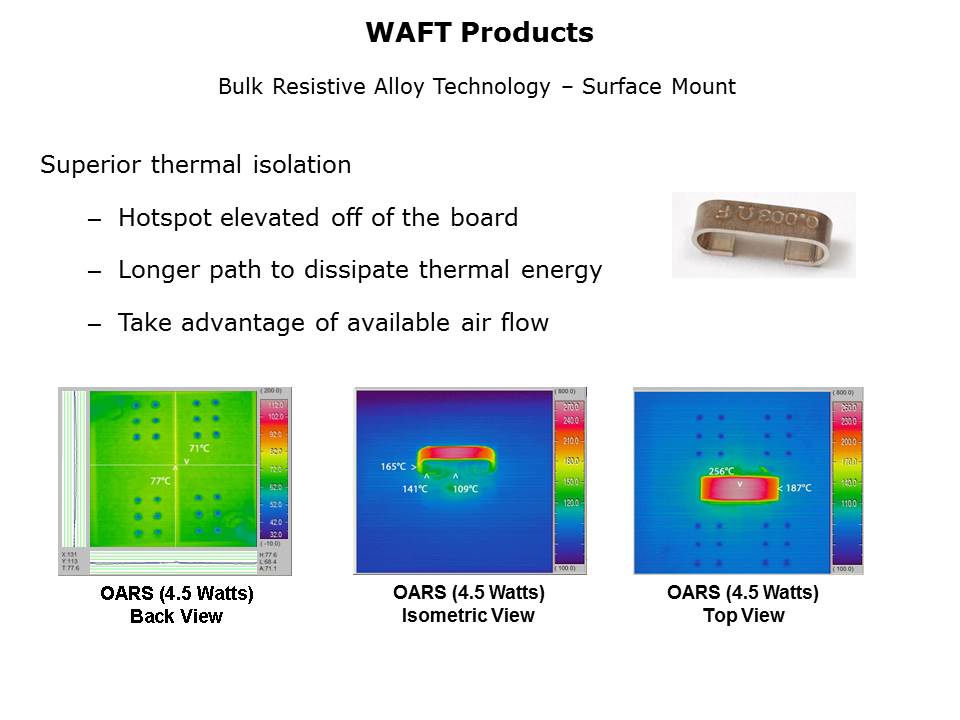

Shown in this slide, thermal images demonstrate the similar isolation of the previous slide, this time showing the surface mount part. An additional advantage is the construction of the featured products is that the shape reduces mechanical stresses that would be applied to the solder joint. This improves long term product reliability.

PTM Published on: 2011-10-11
