Current Sense Resistors Slide 15

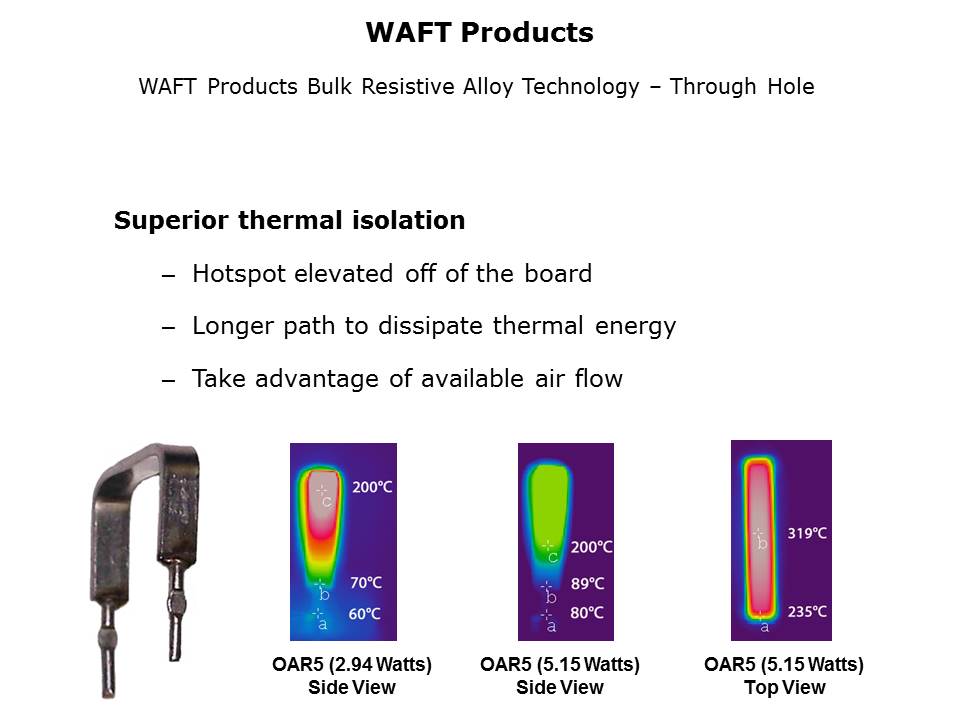

The thermal images shown in this slide help illustrate the hot spot isolation. Notice the top view and the subsequent temperature reduction as readings are taken toward the outer edge of the part. This type of isolation will also prevent the circuit board material from being burned during temporary surge excursions.

PTM Published on: 2011-10-11
