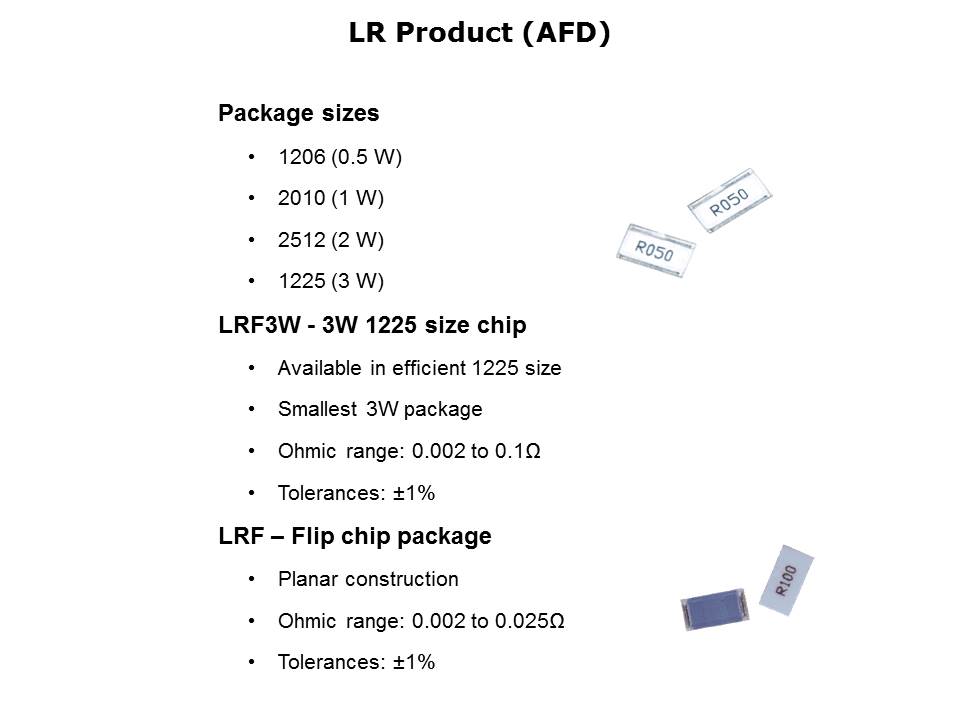

Current Sense Resistors Slide 4

The LRF3W is capable of handling high power applications as well as featuring the benefit of reduced solder joint stresses from a side termination design. The side termination reduces the effects of differences in thermal expansion because the length is reduced. The LRF offers a low resistance range and provides a more traditional footprint layout.
