Bel Power Solutions

FLS400 and MFLS400 Series AC/DC Converters

Bel Power Solutions’ EOS Power FLS400 and MFLS400 provide forced air cooling with high power density of 23.70 W/inch3

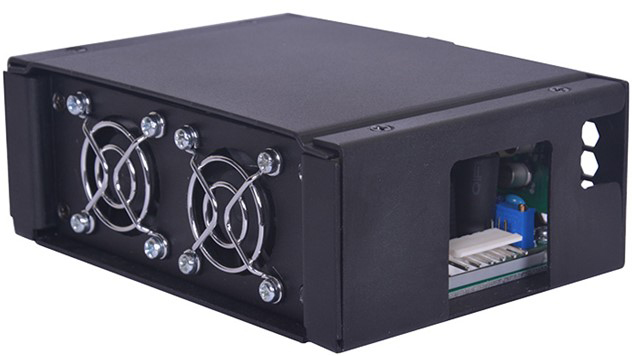

Image of Bel Power Solutions' EOS Power FLS400/MFLS400 Series AC/DC ConvertersBel Power Solutions’ EOS Power FLS400 and MFLS400 series AC/DC converters offer a 400 W maximum output power, efficiency up to 90%, and 12 V to 58 V voltage range. These power supplies are designed to work with forced air cooling and feature thermal shutdown. Both series are available in casings with either a side fan or a top fan.

The FLS400 ITE Grade AC/DC power supplies are suitable for commercial industrial applications.

The MFLS400 Medical Grade AC/DC power supplies meet EN60601-1-2, 4th edition, making them suitable for medical and BF applications.

Features
  • Thermal shutdown
  • Dual fusing
  • Delivers up to 400 W with air
  • Two options available
    • Casing with side fan
    • Casing with top fan
  • 400 W max. output power
  • 12 V to 58 V voltage range
  • 6.9 A to 25 A max. load range
  • 2% or 5% ripple ratings
  • Efficiency up to 90%
  • 23.70 W/inch3 power density
  • Wide -40°C to +70°C operating temperature range
Applications
  • Industrial
  • Medical

FLS400 and MFLS400 Series AC/DC Converters

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
AC/DC CONVERTER 48V 398WFLS400-1348-SFAC/DC CONVERTER 48V 398W22 - Immediate$225.70View Details
AC/DC CONVERTER 48V 398WFLS400-1348-TFAC/DC CONVERTER 48V 398W21 - Immediate$225.58View Details
AC/DC CONVERTER 24V 401WFLS400-1324-SFAC/DC CONVERTER 24V 401W19 - Immediate$225.72View Details
AC/DC CONVERTER 24V 401WFLS400-1324-TFAC/DC CONVERTER 24V 401W0 - Immediate$225.63View Details
AC/DC CONVERTER 24V 401WMFLS400-1324-SFAC/DC CONVERTER 24V 401W12 - Immediate$252.58View Details
AC/DC CONVERTER 12V 300WMFLS400-1312-SFAC/DC CONVERTER 12V 300W12 - Immediate$252.59View Details
AC/DC CONVERTER 24V 401WMFLS400-1324-TFAC/DC CONVERTER 24V 401W12 - Immediate$252.48View Details
AC/DC CONVERTER 12V 300WFLS400-1312-SFAC/DC CONVERTER 12V 300W11 - Immediate$225.72View Details
AC/DC CONVERTER 12V 300WFLS400-1312-TFAC/DC CONVERTER 12V 300W12 - Immediate$130.79View Details
AC/DC CONVERTER 48V 398WMFLS400-1348-TFAC/DC CONVERTER 48V 398W24 - Immediate$252.45View Details
AC/DC CONVERTER 48V 398WMFLS400-1348-SFAC/DC CONVERTER 48V 398W12 - Immediate$252.58View Details
AC/DC CONVERTER 12V 300WMFLS400-1312-TFAC/DC CONVERTER 12V 300W12 - Immediate$252.47View Details
AC/DC CONVERTER 30V 399WFLS400-1330-TFAC/DC CONVERTER 30V 399W0 - Immediate$195.68View Details
AC/DC CONVERTER 15V 300WFLS400-1315-TFAC/DC CONVERTER 15V 300W0 - Immediate$195.68View Details
AC/DC CONVERTER 58V 400WFLS400-1358-SFAC/DC CONVERTER 58V 400W0 - Immediate$195.68View Details
AC/DC CONVERTER 58V 400WFLS400-1358-TFAC/DC CONVERTER 58V 400W0 - Immediate$195.68View Details
AC/DC CONVERTER 30V 399WFLS400-1330-SFAC/DC CONVERTER 30V 399W0 - Immediate$195.68View Details
AC/DC CONVERTER 15V 300WFLS400-1315-SFAC/DC CONVERTER 15V 300W0 - Immediate$195.68View Details
AC/DC CONVERTER 58V 400WMFLS400-1358-TFAC/DC CONVERTER 58V 400W0 - Immediate$218.97View Details
AC/DC CONVERTER 15V 300WMFLS400-1315-TFAC/DC CONVERTER 15V 300W0 - Immediate$218.97View Details
Published: 2022-06-20
