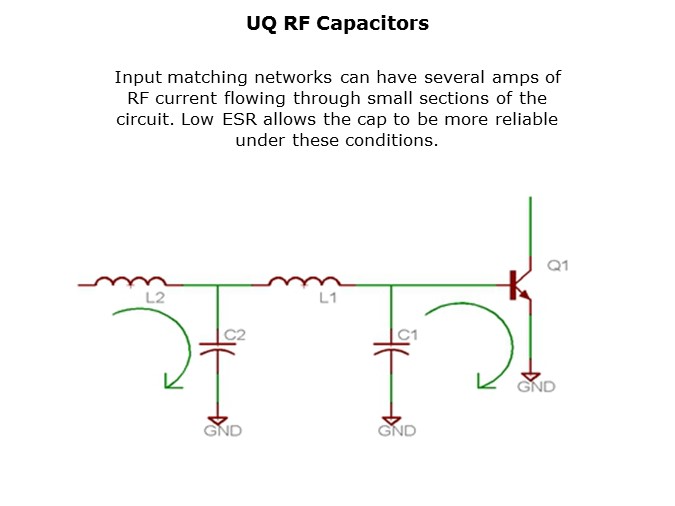

UQRF-Slide7

Capacitors can have low impedances in parallel with the transistor at RF frequencies, so RF amplifiers can have current flowing through small sections of the circuit at any given time. A small change in ESR can easily lead to a large power loss in the circuit. The lowest ESR and highest Q are an absolute must in these cases.
