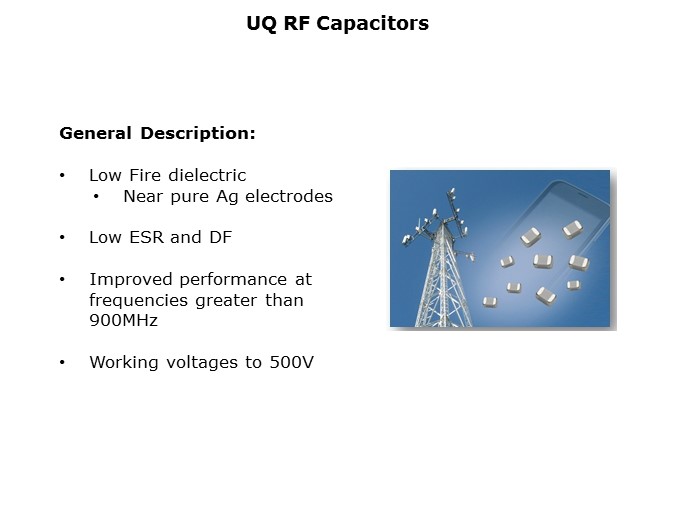

UQRF-Slide2

The UQ series capacitors are low fire dielectric capacitors with near pure silver electrodes for superior conductivity. They are designed to minimize ESR and maximize high Q to improve the performance of RF and microwave circuit designs. The UQ series has the lowest ESR and highest Q of any RF capacitor at frequencies greater than 900MHz.

PTM Published on: 2011-03-28
