CIT Relay and Switch

STV Series IP67 Right Angle Through-Hole Tact Switches

CIT Relay & Switch's IP67 with silicon rubber seal, right angle through-hole PC pin tactile switch with actuator length and gram force options

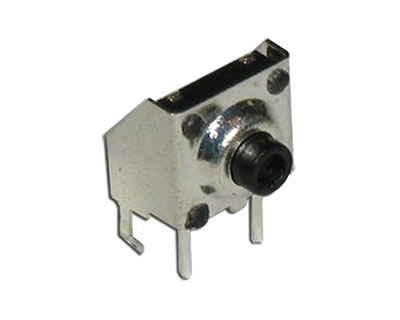

Image of CIT's STV Series IP67 Right Angle Through-Hole Tact Switches With IP67 sealing degree, CIT Relay & Switch's right angle ST series tact switch offers actuator length options of 4.35 mm or 8.35 mm and actuation force from 160 gF up to 520 gF, along with a stainless steel dome for long life.

Features and Specifications
  • Contact arrangement: SPST, momentary function
  • Electrical rating: 50 mA at 48 VDC
  • Electrical life: 1,000,000 cycles on stainless steel dome
  • Contact resistance: less than 50 milliohms
  • Right angle
  • Surface mount
  • Actuator travel: 0.45 mm ±0.1 mm
  • Dielectric strength: 250 VRMS
  • Operating temperature: -40°C to +85°C
  • Dust proof
  • Stainless steel dome option
  • Multiple actuation force options

STV Series IP67 Right Angle Through-Hole Tact Switches

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV4.35LF260QSWITCH TACTILE SPST-NO 0.05A 48V923 - Immediate$0.61View Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV8.35LF200QSWITCH TACTILE SPST-NO 0.05A 48V968 - Immediate$0.46View Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV8.35LF260QSWITCH TACTILE SPST-NO 0.05A 48V993 - Immediate$0.61View Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV8.35LF520QSWITCH TACTILE SPST-NO 0.05A 48V958 - Immediate$0.61View Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV8.35LF160QSWITCH TACTILE SPST-NO 0.05A 48V970 - Immediate$0.46View Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV4.35LF200QSWITCH TACTILE SPST-NO 0.05A 48V991 - Immediate$0.46View Details
SWITCH TACTILE SPST-NO 0.05A 48VSTV4.35LF520QSWITCH TACTILE SPST-NO 0.05A 48V847 - Immediate$0.61View Details
Published: 2022-12-12
