LUXEON XF-3014 CV Flexible LED Strips

LUMILEDS offers a flexible light source, distributing uniform light across user selectable lengths

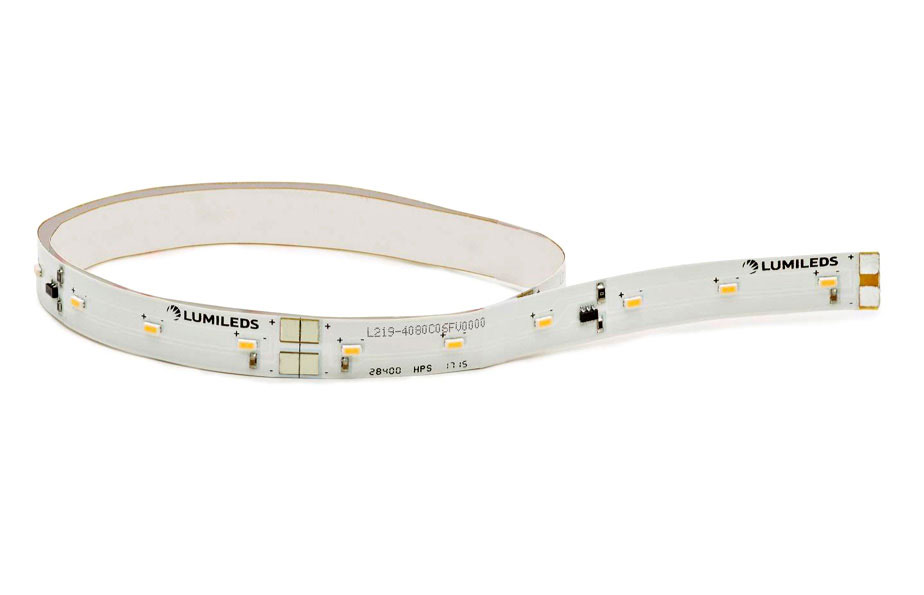

Image of LUMILEDS' LUXEON XF-3014 CV Flexible LED StripsLUMILEDS' LUXEON XF-3014 CV is for constant voltage driven applications that require a flexible design capable of maintaining uniform light distribution over long lengths. These current regulated flexible strips come in variable length options and are either cuttable or include snap-together connectors for precision design. LUXEON XF-3014 CV is designed for ease of system integration, faster time to market, and best-in-class reliability.

LUXEON XF-3014 CV is available in the following configurations:

  • 6 LEDs per segment, cuttable every 96 mm
  • 6 LED, 96 mm segments with connectors
  • 30 LED, 480 mm segments with connectors
Features and Benefits Applications
  • Lumens per 96 mm segment with 105 lm/W efficacy at 24 V, Tj=50°C
  • 2,700 K; 3,000 K; and 4,000 K CCT offerings with 80CRI
  • <2% light output attenuation over 10 m length
  • Backside adhesive for attachment to heat sink allows for ease of mounting and assembly
  • Complete integrated solution guarantees simplified supply chain and faster time to market
  • Five-year limited warranty
  • Downlights
  • Indoor area lighting
    • Under cabinet
  • Specialty lighting
    • Cove
    • Accent

LUXEON XF-3014 CV Series

ImageManufacturer Part NumberDescriptionWavelengthAvailable QuantityView Details
LED ENG LUXEON WH LNR STR 4000KL219-4080C06FV0000LED ENG LUXEON WH LNR STR 4000K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 2700KL219-2780006FV0C00LED ENG LUXEON WH LNR STR 2700K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 3000KL219-3080006FV0C00LED ENG LUXEON WH LNR STR 3000K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 4000KL219-4080006FV0C00LED ENG LUXEON WH LNR STR 4000K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 2700KL219-2780030FV0C00LED ENG LUXEON WH LNR STR 2700K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 3000KL219-3080030FV0C00LED ENG LUXEON WH LNR STR 3000K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 4000KL219-4080030FV0C00LED ENG LUXEON WH LNR STR 4000K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 2700KL219-2780C06FV0000LED ENG LUXEON WH LNR STR 2700K-0 - ImmediateView Details
LED ENG LUXEON WH LNR STR 3000KL219-3080C06FV0000LED ENG LUXEON WH LNR STR 3000K-0 - ImmediateView Details
