Solutions for Motion Control PowerSTEP01 Pt2 Slide 8

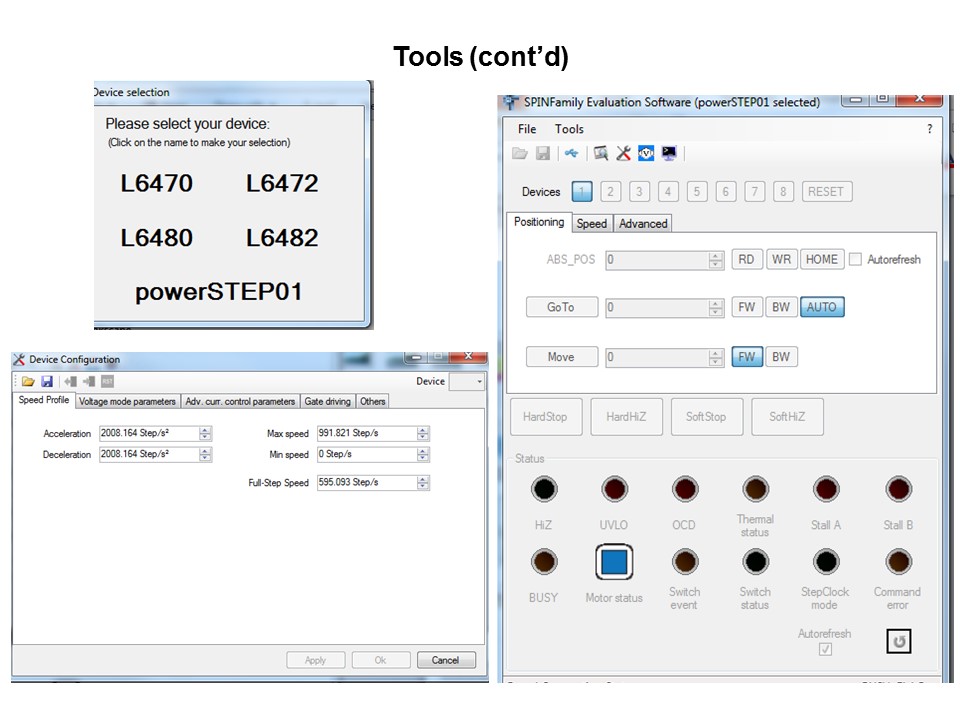

Screen images of the GUI are shown on this slide. Users choose the desired device when the first window opens. There are several windows available, beginning with the main window which allows the commands to be sent. The device configuration window has several tabs to enter the configuration of the device, such as maximum speed, minimum speed, stall threshold, and gate drivers.

PTM Published on: 2015-05-06
