            TEA2093 Synchronous Rectifier Controller
                    NXP's synchronous rectifier controller is ideal for asymmetrical half-bridge and flyback converters

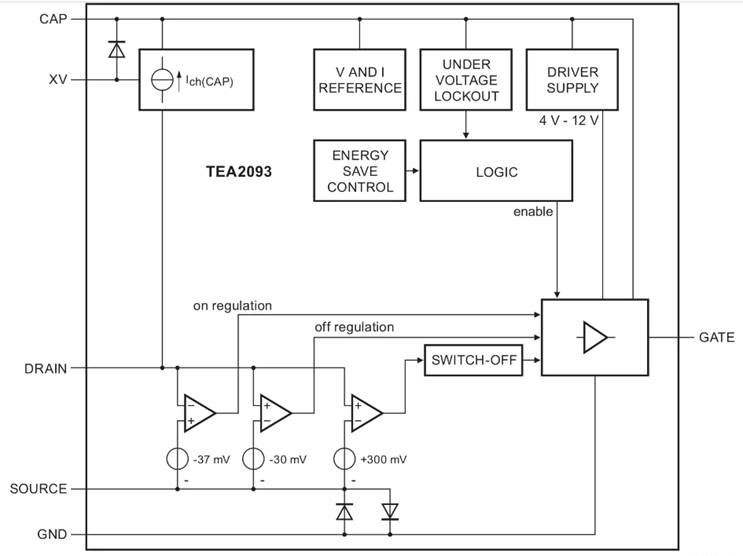

Image of NXP's TEA2093 Synchronous Rectifier Controller NXP's TEA2093TS is a synchronous rectifier (SR) controller IC for switched-mode power supplies. It includes an adaptive gate drive for maximum efficiency at any load.

The TEA2093TS is a dedicated controller IC for synchronous rectification on the secondary side of asymmetrical half-bridge converters and standard flyback converters. It incorporates the sensing stage and driver stage for driving the SR MOSFET, which rectifies the output of the secondary transformer winding.

The TEA2093TS can generate its own supply voltage for battery-charging applications with low output voltage or applications with high-side rectification.

Features

Operates in a wide output voltage range down to 0 V
Drain sense pin is capable of handling input voltages up to 120 V
Self-supplying for operation with low output voltage
Self-supplying for high-side rectification without the use of an auxiliary winding
Operates with standard and logic level SR MOSFETs
Supports USB BC, USB PD, and quick charge applications
