Product Highlights > Next-Gen Automotive High-Current Pressed Powder Inductors – EXLA1V Series

            Next-Gen Automotive High-Current Pressed Powder Inductors – EXLA1V Series

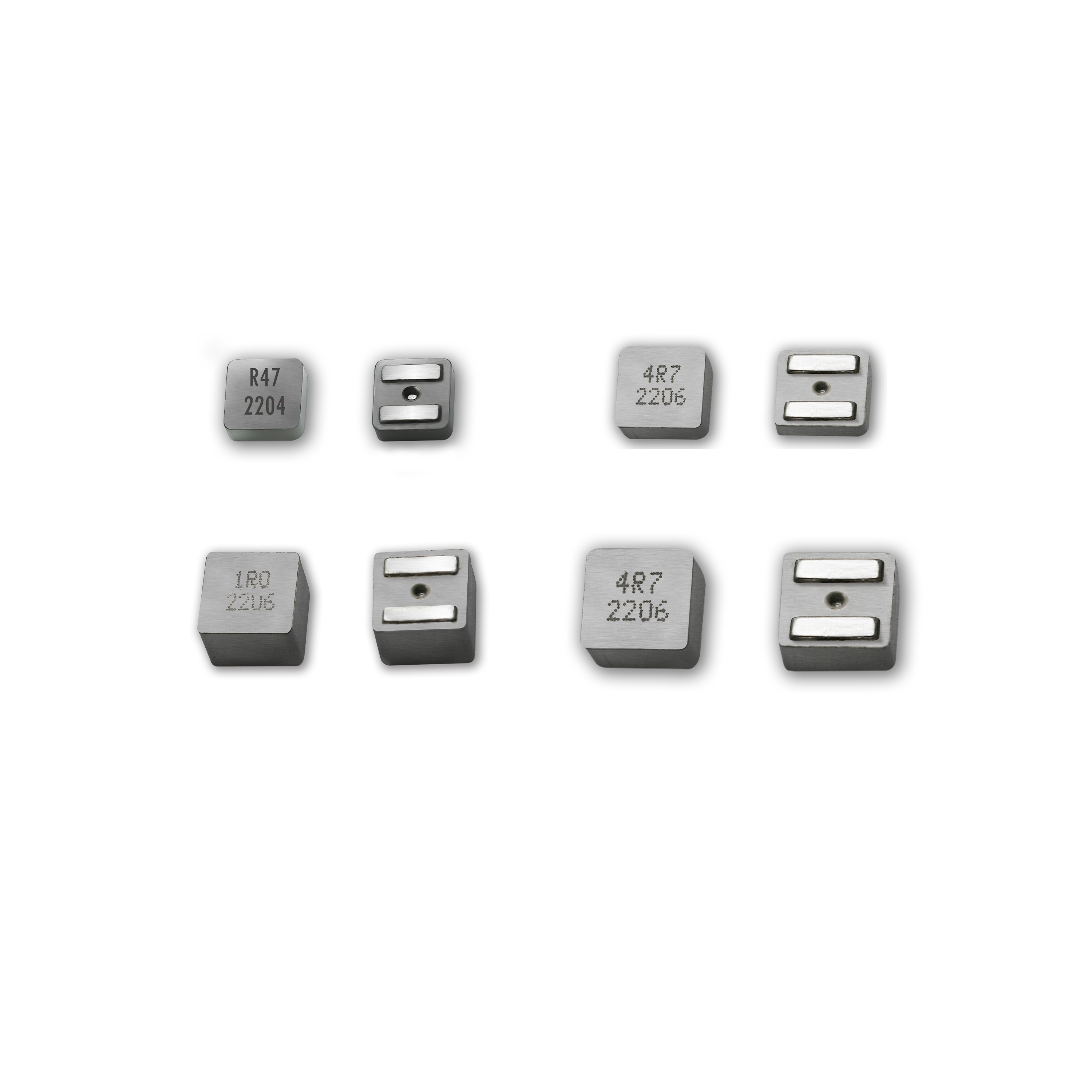

                    Eaton's EXLA1V inductors are available in six high-power density sizes: 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, and 10 mm


Eaton's EXLA1V is an automotive-grade family of next-generation pressed powder high-current inductors provided in a wide range of inductances from 0.185 µH to 22 µH. Eaton's EXL inductors are available in 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, and 10 mm high power density sizes. Their advanced molded construction is excellent for higher currents requiring low saturation and stability across a wide operating temperature range from -55°C to +155°C. Each product in the EXLA line is magnetically shielded for superior EMI immunity.

Features

High current carrying capacity
Low DCR, high efficiency
Magnetically shielded, low EMI

Soft saturation
Alloy powder core material

Applications

Voltage regulator modules (VRM)
Multi-phase regulators
Point-of-load (POL) converters
Desktop and server VRMs and EVRDs
Base station equipment

Laptop and notebook regulators
Tablets and e-readers
Battery power systems
Data networking and storage systems

Resources

Use Case: Eaton EXLA High-Performance Inductors for Vehicle Electrification
Product Aid: Eaton EXLA1V High-Performance Molded Inductors

KIT for EXL1V Series: 283-EXLA1V-KIT-ND

EXLA1V04 Series

Manufacturer Part Number	Description	Inductance	Current Rating (Amps)	Available Quantity	Price	View Details
EXLA1V0402-R47-R	FIXED IND 470NH 13.2A 6.8 MOHM	470 nH	13.2 A	880 - Immediate	$0.44	View Details
EXLA1V0402-R56-R	FIXED IND 560NH 12.6A 7.8 MOHM	560 nH	12.6 A	2546 - Immediate	$0.48	View Details
EXLA1V0402-R60-R	FIXED IND 600NH 12.4A 7.8 MOHM	600 nH	12.4 A	2858 - Immediate	$0.48	View Details
EXLA1V0402-R68-R	FIXED IND 680NH 12A 8.2 MOHM SMD	680 nH	12 A	2080 - Immediate	$0.48	View Details
EXLA1V0402-R82-R	FIXED IND 820NH 11.5A 9.5 MOHM	820 nH	11.5 A	2755 - Immediate	$0.48	View Details
EXLA1V0402-1R0-R	FIXED IND 1UH 11A 11.7 MOHM SMD	1 µH	11 A	2801 - Immediate	$0.50	View Details
EXLA1V0402-1R2-R	FIXED IND 1.2UH 9.5A 13.4 MOHM	1.2 µH	9.5 A	2484 - Immediate	$0.48	View Details
EXLA1V0402-1R5-R	FIXED IND 1.5UH 9.1A 15.8 MOHM	1.5 µH	9.1 A	4361 - Immediate	$0.44	View Details
EXLA1V0402-2R0-R	FIXED IND 2UH 8.2A 23.3 MOHM SMD	2 µH	8.2 A	3021 - Immediate	$0.50	View Details
EXLA1V0402-2R2-R	FIXED IND 2.2UH 8A 23.5 MOHM SMD	2.2 µH	8 A	1181 - Immediate	$0.48	View Details

EXLA1V05 Series

Manufacturer Part Number	Description	Inductance	Current Rating (Amps)	Available Quantity	Price	View Details
EXLA1V0503-R27-R	FIXED IND 270NH 25.5A 2.55 MOHM	270 nH	25.5 A	1970 - Immediate	$0.64	View Details
EXLA1V0503-R56-R	FIXED IND 560NH 21A 3.8 MOHM SMD	560 nH	21 A	2258 - Immediate	$0.55	View Details
EXLA1V0503-R60-R	FIXED IND 600NH 18A 4.3 MOHM SMD	600 nH	18 A	1970 - Immediate	$0.64	View Details
EXLA1V0503-2R2-R	FIXED IND 2.2UH 11.5A 12 MOHM	2.2 µH	11.5 A	1404 - Immediate	$0.64	View Details
EXLA1V0503-5R6-R	FIXED IND 5.6UH 5.9A 34.1 MOHM	5.6 µH	5.9 A	2164 - Immediate	$0.61	View Details
EXLA1V0505-4R7-R	FIXED IND 4.7UH 8.1A 21 MOHM SMD	4.7 µH	8.1 A	7047 - Immediate	$0.64	View Details
EXLA1V0505-5R6-R	FIXED IND 5.6UH 7.2A 24.2 MOHM	5.6 µH	7.2 A	87 - Immediate	$0.64	View Details
EXLA1V0505-6R8-R	FIXED IND 6.8UH 6.4A 28.6 MOHM	6.8 µH	6.4 A	0 - Immediate	$0.70	View Details
EXLA1V0505-8R2-R	FIXED IND 8.2UH 6.1A 32.5 MOHM	8.2 µH	6.1 A	924 - Immediate	$0.64	View Details
EXLA1V0505-100-R	FIXED IND 10UH 5A 43 MOHM SMD	10 µH	5 A	0 - Immediate	$0.70	View Details

EXLA1V06 Series

Manufacturer Part Number	Description	Inductance	Current Rating (Amps)	Available Quantity	Price	View Details
EXLA1V0603-R18-R	FIXED IND 180NH 32A 1.75 MOHM	180 nH	32 A	856 - Immediate	$0.68	View Details
EXLA1V0603-R33-R	FIXED IND 330NH 25A 2.5 MOHM SMD	330 nH	25 A	2813 - Immediate	$0.63	View Details
EXLA1V0603-R56-R	FIXED IND 560NH 22A 3.31 MOHM	560 nH	22 A	717 - Immediate	$0.68	View Details
EXLA1V0603-R68-R	FIXED IND 680NH 20A 5.17 MOHM	680 nH	20 A	990 - Immediate	$0.68	View Details
EXLA1V0603-1R0-R	FIXED IND 1UH 18A 6.05 MOHM SMD	1 µH	18 A	59 - Immediate	$0.56	View Details
EXLA1V0603-1R2-R	FIXED IND 1.2UH 16A 7.4 MOHM SMD	1.2 µH	16 A	969 - Immediate	$0.68	View Details
EXLA1V0603-1R5-R	FIXED IND 1.5UH 15A 9.13 MOHM	1.5 µH	15 A	0 - Immediate	$0.73	View Details
EXLA1V0603-1R8-R	FIXED IND 1.8UH 14A 10.2 MOHM	1.8 µH	14 A	14 - Immediate	$0.68	View Details
EXLA1V0603-2R2-R	FIXED IND 2.2UH 10A 12.2 MOHM	2.2 µH	10 A	930 - Immediate	$0.68	View Details
EXLA1V0603-3R3-R	FIXED IND 3.3UH 8A 20.8 MOHM SMD	3.3 µH	8 A	895 - Immediate	$0.61	View Details

EXLA1V07 Series

Manufacturer Part Number	Description	Inductance	Current Rating (Amps)	Available Quantity	Price	View Details
EXLA1V0703-1R0-R	FIXED IND 1UH 21.8A 5 MOHM SMD	1 µH	21.8 A	1330 - Immediate	$0.90	View Details
EXLA1V0703-1R5-R	FIXED IND 1.5UH 15.3A 8.25 MOHM	1.5 µH	15.3 A	1732 - Immediate	$0.79	View Details
EXLA1V0703-2R2-R	FIXED IND 2.2UH 13A 13.7 MOHM	2.2 µH	13 A	1387 - Immediate	$0.90	View Details
EXLA1V0703-2R7-R	FIXED IND 2.7UH 11.4A 15.4 MOHM	2.7 µH	11.4 A	919 - Immediate	$0.90	View Details
EXLA1V0703-3R3-R	FIXED IND 3.3UH 10A 18 MOHM SMD	3.3 µH	10 A	1484 - Immediate	$0.90	View Details
EXLA1V0703-4R7-R	FIXED IND 4.7UH 9A 26.7 MOHM SMD	4.7 µH	9 A	1563 - Immediate	$0.79	View Details
EXLA1V0703-5R6-R	FIXED IND 5.6UH 7.3A 33.2 MOHM	5.6 µH	7.3 A	1350 - Immediate	$0.90	View Details
EXLA1V0703-6R8-R	FIXED IND 6.8UH 6.8A 42.5 MOHM	6.8 µH	6.8 A	1360 - Immediate	$0.90	View Details
EXLA1V0703-8R2-R	FIXED IND 8.2UH 5.9A 48.73 MOHM	8.2 µH	5.9 A	1495 - Immediate	$0.90	View Details
EXLA1V0703-100-R	FIXED IND 10UH 5A 56.1 MOHM SMD	10 µH	5 A	1197 - Immediate	$0.93	View Details

EXLA1V08 Series

Manufacturer Part Number	Description	Inductance	Current Rating (Amps)	Available Quantity	Price	View Details
EXLA1V0808-3R3-R	FIXED IND 3.3UH 18A 7.3 MOHM SMD	3.3 µH	18 A	1009 - Immediate	$1.47	View Details
EXLA1V0808-4R7-R	FIXED IND 4.7UH 14.6A 9.8 MOHM	4.7 µH	14.6 A	0 - Immediate	$1.59	View Details
EXLA1V0808-6R8-R	FIXED IND 6.8UH 11.3A 14.3 MOHM	6.8 µH	11.3 A	0 - Immediate	$1.59	View Details
EXLA1V0808-100-R	FIXED IND 10UH 8.7A 22.9 MOHM	10 µH	8.7 A	985 - Immediate	$1.47	View Details

EXLA1V10 Series

Manufacturer Part Number	Description	Inductance	Current Rating (Amps)	Available Quantity	Price	View Details
EXLA1V1003-R28-R	FIXED IND 280NH 35A 1.6 MOHM SMD	280 nH	35 A	2362 - Immediate	$1.35	View Details
EXLA1V1003-R56-R	FIXED IND 560NH 32A 2.75 MOHM	560 nH	32 A	975 - Immediate	$1.35	View Details
EXLA1V1003-R82-R	FIXED IND 820NH 25A 4.1 MOHM SMD	820 nH	25 A	900 - Immediate	$1.35	View Details
EXLA1V1003-R90-R	FIXED IND 900NH 24A 4.2 MOHM SMD	900 nH	24 A	975 - Immediate	$1.35	View Details
EXLA1V1003-1R0-R	FIXED IND 1UH 23A 4.95 MOHM SMD	1 µH	23 A	2437 - Immediate	$1.35	View Details
EXLA1V1003-1R5-R	FIXED IND 1.5UH 18A 6.6 MOHM SMD	1.5 µH	18 A	11 - Immediate	$1.35	View Details
EXLA1V1006-2R2-R	FIXED IND 2.2UH 20A 4.84 MOHM	2.2 µH	20 A	0 - Immediate	$1.85	View Details
EXLA1V1006-3R3-R	FIXED IND 3.3UH 16.8A 7.7 MOHM	3.3 µH	16.8 A	440 - Immediate	$1.71	View Details
EXLA1V1006-4R7-R	FIXED IND 4.7UH 14A 10.72 MOHM	4.7 µH	14 A	62 - Immediate	$1.63	View Details
EXLA1V1006-5R6-R	FIXED IND 5.6UH 12A 11.9 MOHM	5.6 µH	12 A	480 - Immediate	$1.71	View Details
