Diotec Semiconductor

BYG10J-AQ Controlled Avalanche Rectifier

Diotec’s avalanche rectifier is ideally suited for on-board electronics in motorbikes, snowmobiles, and boats

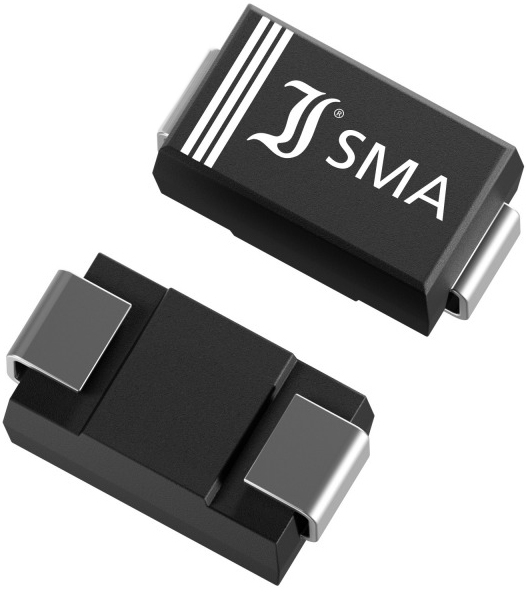

Image of Diotec's BYG10J-AQ Controlled Avalanche RectifierDiotec’s BYG10J-AQ controlled avalanche rectifier with full AEC-Q101 qualification offers 10 mJ of single pulse energy rating at breakdown >650 V, 1.5 A of forward current, and 27 A/30 A of surge current rating. This makes it ideally suited for all kinds of on-board electronics in motorbikes, snowmobiles, and boat engines. These include engine control units (ECU), automatic start-stop systems, ignition circuits, and many more. The part comes in the industry standard DO-214AC/SMA case outline, allowing for automatic board assembly.

Resources:
Features
  • Robust reverse characteristic due to defined avalanche rating
  • High average forward current
  • High forward surge current
  • Nominal 1.5 A (IFAV)
  • Nominal 600 V (VRRM)
  • Avalanche breakdown: >650 V
  • Avalanche energy: 10 mJ (ERSM)
  • Forward voltage: <1.15 V at 1.5 A/+25°C (VF)
  • Reverse current: <50 µA at 1000 V/+125°C (IR)
  • DO-214AC/SMA case outline
Applications
  • ECU
  • Automatic start-stop systems
  • Ignition circuits
  • Auxiliary power supply units (PSU) in electric vehicles (EV)
  • Battery management systems (BMS)

BYG10J-AQ Controlled Avalanche Rectifier

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
DIODE AVAL 600V 1.5A DO214ACBYG10J-AQDIODE AVAL 600V 1.5A DO214AC7500 - Immediate$0.25View Details
Published: 2023-01-31
