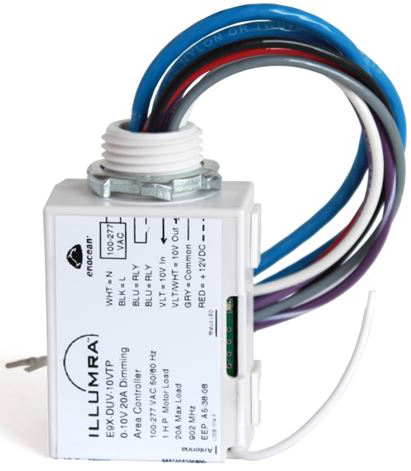

E9X-DUV-10VTP 20 A 902 MHz Dimming Dry Contact Area Controller Relay

ILLUMRA’s E9X-DUV-10VTP diverse and highly advanced four-wire dry contact area controller can control the on/off or 0 V to 10 V dimmable function of a light, group of lights, or up to 1 hp motors and pumps. The E9X-DUV-10VTP relay uses a 902 MHz EnOcean protocol signal and can receive up to 25 unique switch or sensor signals from up to 150 feet away. The E9X-DUV-10VTP area controller has a built-in repeater programmable function that can be activated to extend a signal from switches or sensors an additional 150 feet or more. The repeater function can be done twice per switch signal, making the total range from a switch or sensor to relay up to 450 feet.

The E9X-DUV-10VTP has a wide variety of building control applications or building management solutions (BMS). Some of the notable advanced networking capabilities include dry contact functions, BACnet compatible, high/low-end trim, daylight harvesting, load shedding, and other programmable features.

ILLUMRA 902 MHz products are BACnet compatible and can allow information to be incorporated into a BMS. Most of the products are made in the United States and qualify for Buy American Act (BAA) projects.

ILLUMRA self-powered wireless light switches and sensors are the primary products used to communicate with 0 V to 10 V dimming area controllers.

ILLUMRA can pre-link the products to make it easier for customers and to save on installation costs. For advanced setups, ILLUMRA has developed a scan and link app that is designed to create groups, zones, and make changes using barcodes and a mobile app. The scan and link app can be downloaded on Android or iOS for free.
