PO(M2) Series Compact Push-On Lock Coaxial Connectors

Product Highlights > PO(M2) Series Compact Push-On Lock Coaxial Connectors

            PO(M2) Series Compact Push-On Lock Coaxial Connectors

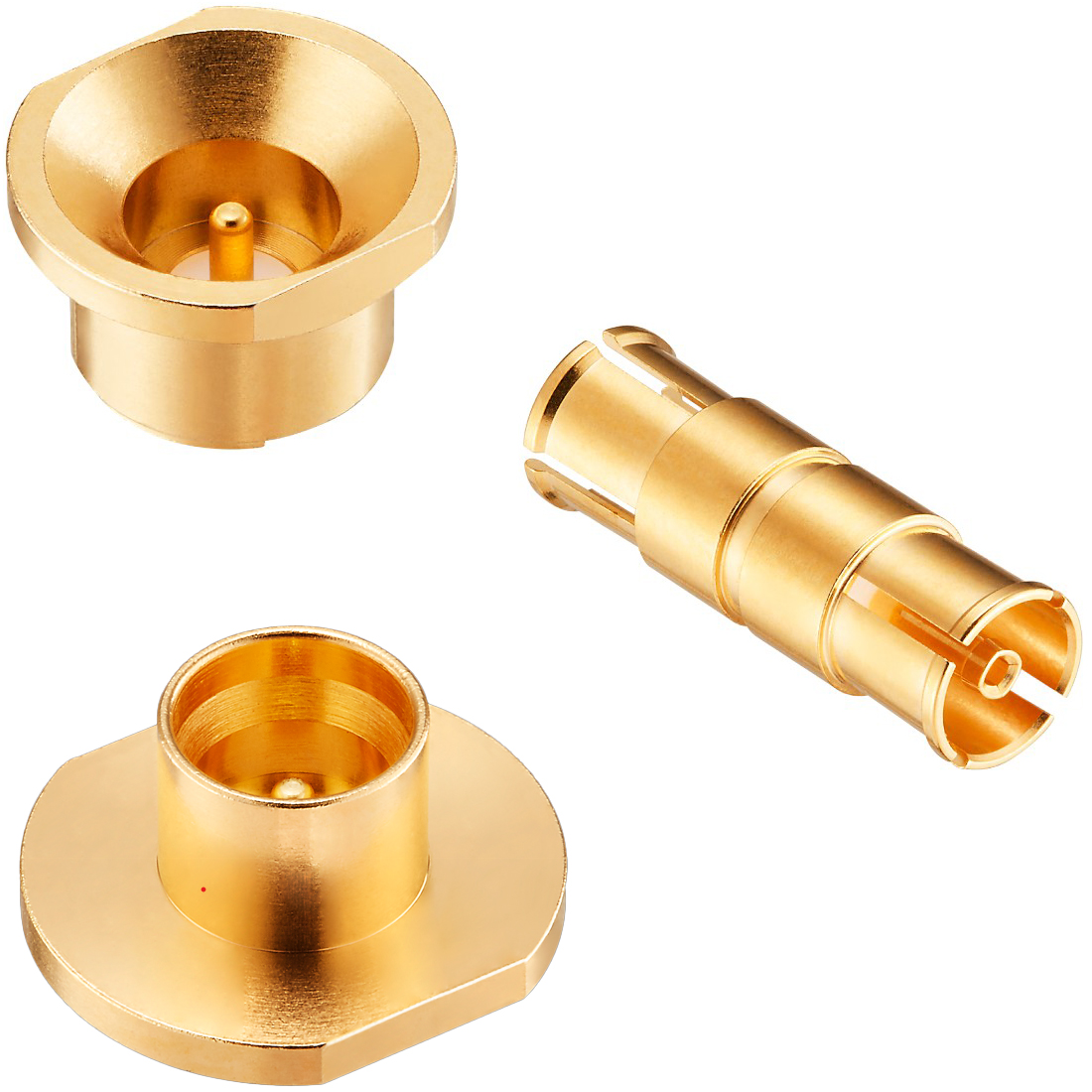

                    Hirose PO(M2) series supports both cable-to-board and board-to-board configurations with a 15 mm stacking height using a three-piece connection structure


The Hirose PO(M2) series is a compact push-on lock coaxial connector engineered for stable high-frequency signal transmission up to 6 GHz. The PO(M2) supports both cable-to-board and board-to-board configurations with a 15 mm stacking height using a three-piece connection structure. It features ±0.4 mm displacement tolerance in X/Y and a +1 mm range in Z to support flexible assembly and board alignment. With 50 Ω characteristic impedance, low voltage standing wave ratio (VSWR) of 1.4 maximum to 6 GHz, durable gold-plated contacts, and an operating range of -40°C to +85°C, the PO(M2) delivers reliable RF performance for 5G base stations, communication equipment, and test and evaluation systems.

Features

Connection method

3-piece parallel connection between boards
Plug receptacle ×2 + interposer
Cable connection
Plug receptacle with locking + right angle jack

Superior high-frequency performance up to 6 GHz
Displacement tolerance of ± 0. 4 mm in X/Y
Z direction: 1 mm range
RoHS2 compliant

PO(M2) Series Compact Push-On Lock Coaxial Connector

Image	Manufacturer Part Number	Description	Available Quantity	Price	View Details
New Product	PO(M2)-PR(LD)-SMT	PLUG, 6.0 GHZ, 1 POS., 100 CYCL	1000 - Immediate	$6.07	View Details
New Product	PO(M2)-PR(SB)-SMT	PLUG, 6.0 GHZ, 1 POS., 100 CYCL	1000 - Immediate	$5.92	View Details
New Product	PO(M2)-A-JJ-1500	JACK, 6.0 GHZ, 1 POS., 50 CYCLE	50 - Immediate	$11.73	View Details
New Product	PO(M2)-PR(LD)-SMT(01)	PLUG, 6.0 GHZ, 1 POS., 100 CYCL	20 - Immediate	$10.92	View Details
New Product	PO(M2)-PR(SB)-SMT(01)	PLUG, 6.0 GHZ, 1 POS., 100 CYCL	20 - Immediate	$10.31	View Details
New Product	PO(M2)-A-JJ-1500(01)	JACK, 6.0 GHZ, 1 POS., 50 CYCLE	20 - Immediate	$14.50	View Details
