PmodTMP2™: Temperature Sensor

Digilent's high accuracy digital temperature sensor for embedded and IoT systems

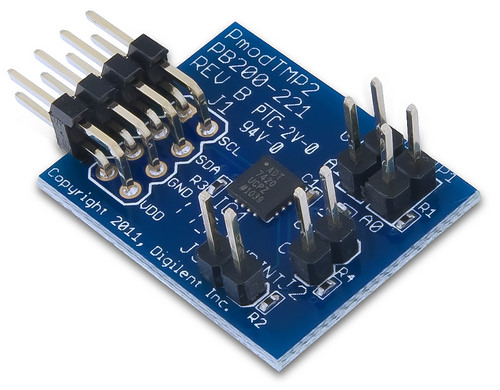

Image of Digilent's Pmod TMP2 Temperature Sensor Digilent PmodTMP2, powered by the Analog Devices® ADT7420, is a temperature sensor module allowing users to detect ambient temperature ranges from -40°C to +150°C with a ±0.25°C accuracy. The 16-bit ADC in the sensor digitizes the temperature to 0.0078°C resolution. The PmodTMP2 is easy to use since it requires no calibration or correction from the user. Users can communicate the PmodTMP2 with any system or development board through the standard I2C protocol.

ADI's ADT7420 is a 16-bit digital I2C temperature sensor in a small 4 mm x 4 mm 16-pin LFCSP package. This ADC feature rich with one-shot mode, output switch, programmable limit, programmable resolution and shutdown mode. The device can operate from a wide voltage range from 2.7 V to 5.5 V with low current consumption of 210 µA at 3.3 V. The ADT7420 is ideal for industrial test and control, medical, and environmental monitoring applications.

Features
  • Analog Devices ADT7420 temperature sensor
  • ±0.25°C accuracy
  • 240 ms continuous conversion time
  • Programmable overtemperature and undertemperature control pins
  • 2×4-pin connector with I2C interface
  • No calibration required
  • Small PCB size for flexible designs 1.0" x 0.8" (2.5 cm x 2.0 cm)
  • Follows Digilent Pmod interface specification type 2
  • Library and example code available
Applications
  • Industrial control and test
  • Environmental monitoring and HVAC
  • Laser diode temperature control
Application Notes

TMP2 Temperature Sensor

ImageManufacturer Part NumberDescriptionFunctionContentsNoteAvailable QuantityPriceView Details
PMODTMP2 THERMOMETER/THERMOSTAT410-221PMODTMP2 THERMOMETER/THERMOSTATTemperatureBoard(s)-20 - Immediate$11.21View Details

Related Product

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SENSOR DGTL -40C-150C 16LFCSPADT7420UCPZ-R2SENSOR DGTL -40C-150C 16LFCSP1926 - Immediate$7.45View Details
SENSOR DGTL -40C-150C 16LFCSPADT7420UCPZ-RL7SENSOR DGTL -40C-150C 16LFCSP6423 - Immediate$7.45View Details
