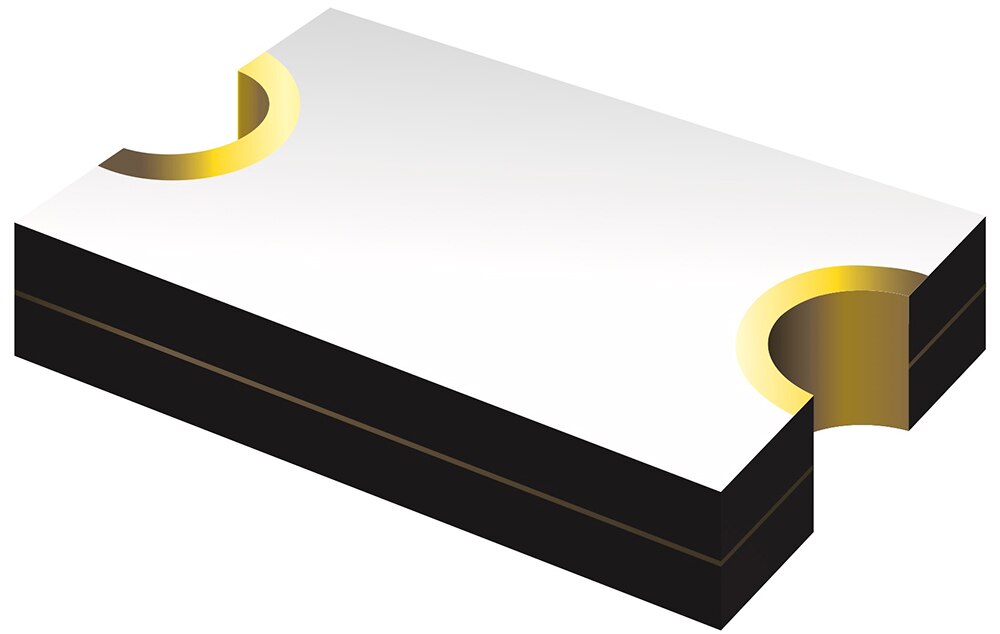

Model MF-FSHT Series High-Temperature PPTC Resettable Fuses
Bourns’ MF-FSHT series fuses have a high hold current rating, improved resistance stability, and provide a high maximum voltage rating
Bourns’ model MF-FSHT series high-temperature surface mount polymer positive temperature coefficient (PPTC) resettable fuses provide Ihold current ratings from 0.05 A to 0.16 A at the 12 V maximum rated voltage and a maximum operating temperature up to +125°C. These fuses provide a broader standard high-temperature PPTC offering to customers with high working temperature requirements, particularly in industrial and other demanding applications.
The MF-FSHT series utilizes Bourns’ innovative freeXpansion™ design that increases the performance of the resettable fuse with higher hold current ratings (Ihold), improved resistance stability, provide higher maximum voltage ratings (Vmax), and have smaller footprints.
Features
- Operating temperature range up to +125°C
- Higher hold currents at elevated temperatures
- Surface mount packaging for automated assembly
- Low thermal derating factor
- Small 0603 footprint size with low profile for space-constrained applications
- RoHS compliant
- cUL and TÜV recognized
Applications
- Overcurrent surge protection of electronic equipment required to operate at elevated temperature
- Resettable fault protection for industrial and consumer electronic equipment
Model MF-FSHT Series High-Temperature PPTC Resettable Fuses
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | MF-FSHT010KX-2 | 0603 HIGH TEMP SMD POLYMER PTC 0 | 3891 - Immediate | $0.93 | View Details |
| | MF-FSHT005KX-2 | 0603 HIGH TEMP SMD POLYMER PTC 0 | 3166 - Immediate | $0.93 | View Details |
| | MF-FSHT016KX-2 | 0603 HIGH TEMP SMD POLYMER PTC 0 | 13516 - Immediate | $0.93 | View Details |
Published: 2021-01-15
