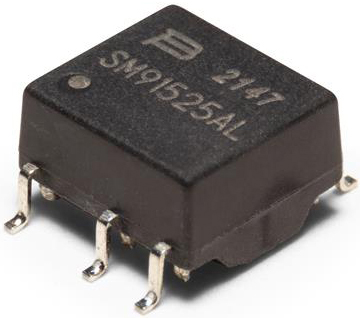

Automotive Grade BMS Signal Transformer – SM91525AL
Bourns’ SM91525AL noise rejection transformer is designed for use with Texas Instruments’ BQ79616 BMS
Bourns’ SM91525AL automotive grade battery management systems (BMS) signal transformer is AEC-Q200 compliant. This single-channel functional insulation transformer includes common mode chokes for noise rejection in BMS applications. Developed for use with the Texas Instruments BQ79616 series, this BMS transformer offers a working voltage of up to 1,000 VDC and a hipot isolation voltage of up to 4,300 VDC with an extended operating temperature range of -40°C to +125°C.
Features
- Superior quality from full automation of critical manufacturing processes
- Up to 1,000 VDC working voltage and hipot up to 4,300 VDC
- Supports serial daisy chain/IsoSPI communication
- Developed for use with Texas Instruments' BQ79616 series
- Expanded temperature range: -40°C to +125°C
- AEC-Q200 compliant, automotive grade
Applications
- BMS
- Energy storage systems (ESS)
Automotive Grade BMS Signal Transformer – SM91525AL
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | SM91525AL-E | TRANSFORMER CMC BMS 4.3KVDC | 2048 - Immediate | $2.02 | View Details |
Published: 2023-04-18
