IoT Starter Kit

Particle's kit is powered by the Particle Argon Wi-Fi development board and allows users to monitor the conditions around them

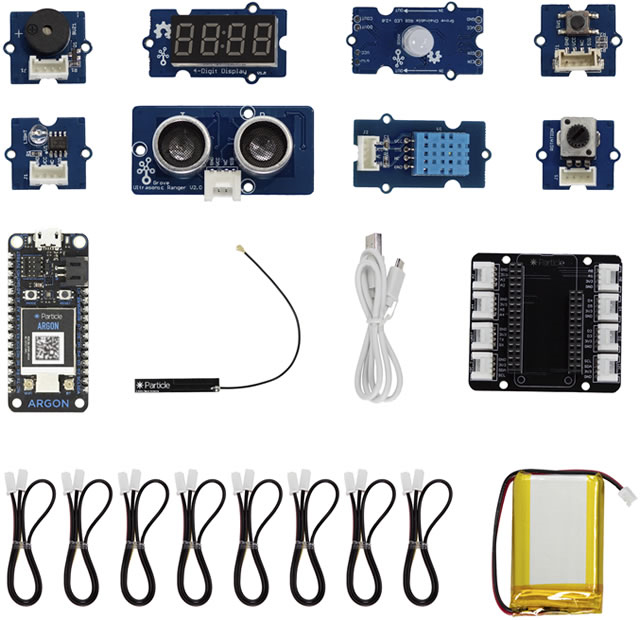

Image of Particle's IoT Starter Kit (click to enlarge)Particle's IoT starter kit is designed to teach users how to build IoT solutions using Particle's hardware and software. This kit includes tutorials, documentation, and everything needed to build an IoT project. The starter kit is built around the Particle Argon Wi-Fi development board. Connect the Argon to a home network and use the included sensors to monitor the surrounding conditions.

The kit includes eight Grove modules that feature their own sensory or informational ability. These modules include a button, a rotary encoder, an ultrasonic range finder, a temperature and humidity sensor, a light sensor, an RGB LED, a buzzer, and a four-digit display. A soldering iron is not required with this kit. Simply attach the included Grove adapter to the Particle Argon and use the provided wires to connect it to the desired modules.

Once the physical build is complete, use the Particle software tools including Web IDE and Console to simplify the code developing process for the project. These tools will teach users how to write code that monitors real-time sensor measurements, how to send the firmware code to the Argon over-the-air (OTA), and how to quickly add new features to an existing project by simply changing a few lines of code.

Kit Contents
  • Particle Argon Wi-Fi development board:
    • Wi-Fi antenna
    • Micro-USB cable
    • LiPo battery
  • Grove FeatherWing adapter
  • Eight Grove wires
  • Button
  • Rotary encoder
  • Ultrasonic range finder
  • Temperature and humidity sensor
  • Light sensor
  • Chainable RGB LED
  • Buzzer
  • Four-digit display
Features
  • Skill level: ideal for inexperienced IoT project builders; components and content are appropriate for all levels of experience
  • Sensors and wires included for a variety of projects
  • Wire sensors and build a circuit without the solder
  • Simplifies writing and deploying code
  • Trigger actions based on the sensor values (when the temperature drops below freezing, sound the buzzer)

IoT Starter Kit

ImageManufacturer Part NumberDescriptionInterconnect SystemSuggested Programming EnvironmentUtilized IC / PartAvailable QuantityPriceView Details
PARTICLE ARGON IOT STARTER KITARG-STRTKTPARTICLE ARGON IOT STARTER KITGrove-ESP32-D0WD, nRF528400 - Immediate$78.55View Details
Published: 2020-01-27
