SCHROFF

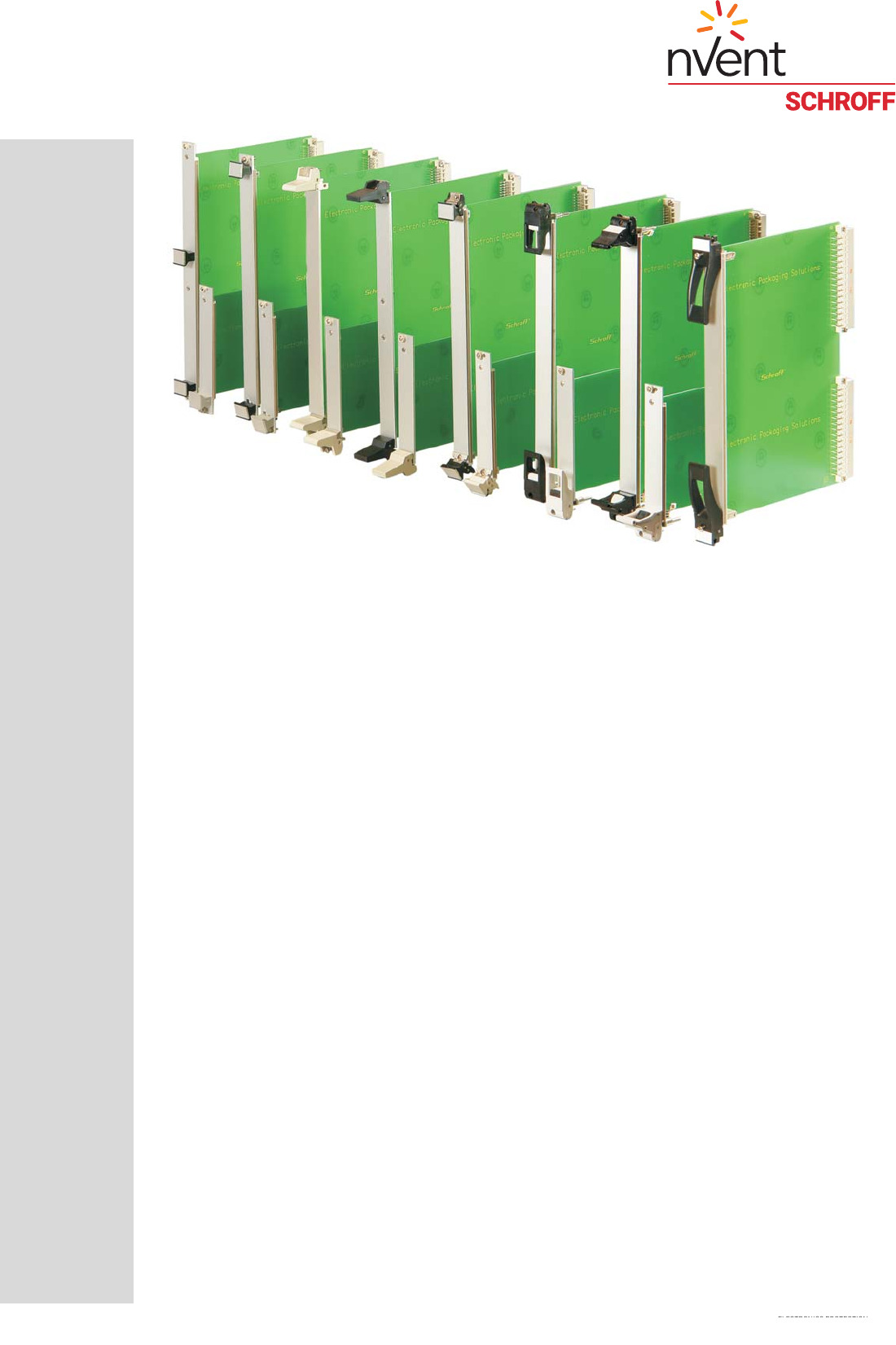

Plug-in Units
2"— m/ent SCHROFF
ELECTRONICS PROTECTIONSCHROFF PRODUCT CATALOG 05/2018
nVent.com/SCHROFF
Plug-in units – Plug-in units
|
7.16
OVERVIEW
MAIN KATALOG
Cabinets . . . . . . . 1
Wall mounted
cases . . . . . . . . . 2
Accessories for
cabinets and wall
mounted cases . . 3
Climate control . . 4
Electronics
cases . . . . . . . . . 5
Subracks/
19" chassis . . . . . 6
Front panels,
plug-in units . . . . 7
Systems . . . . . . . 8
Power supply
units . . . . . . . . . . 9
Backplanes . . . . 10
Connectors, front
panel component
system . . . . . . . 11
Appendix . . . . . 12
Main Catalogue
Plug-in unitsMain CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
PLUG-IN UNITS AS KITS OR FROM INDIVIDUAL PARTS
• Handles in different designs for various applications
•Inserter/extractor handles for forces up to 1500 N
• Upgradable EMC shielding
04612001
STANDARDS
•IEC 60297-3-101 / IEEE 1101.1/11
IEC 60297-3-102 / IEEE 1101.10
IEC 60297-3-103
IEC 1296
SERVICEPLUS
e.g. individual configuration and assembly
e.g. modifications (special colours or sizes)
e.g. custom solutions with modification
to the plug-in units
SCHROFF
Plug-in units – Plug-in units
7.17nVent.com/SCHROFF |

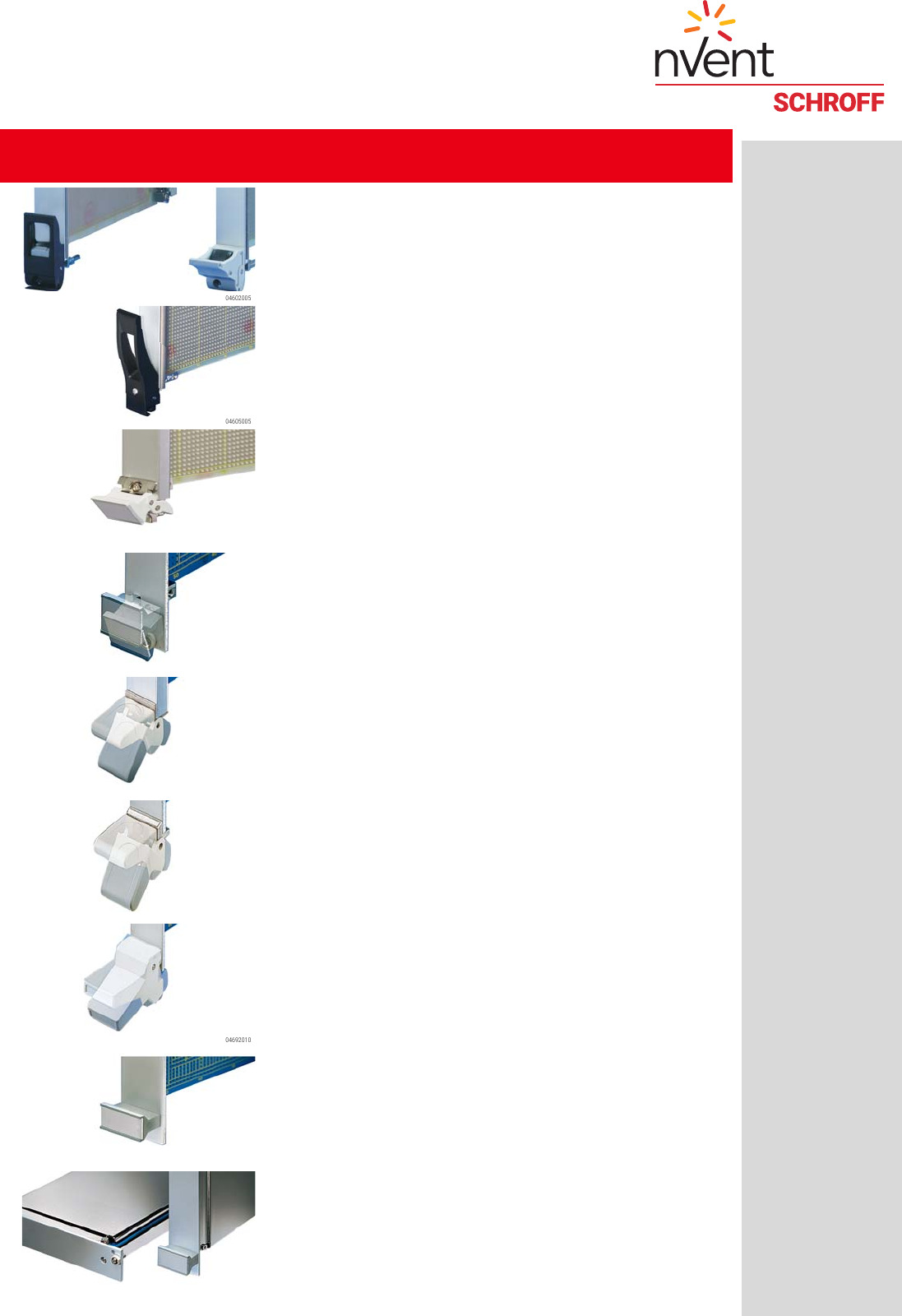

Handles for plug-in units Kit Individual
components
Page Page
For CompactPCI and VME64x applications
Inserter/extractor handle, type IEL/IET, allows keying/
coding and insertion/extraction forces up to 700 N per
pair
7.18 7.20
04602005
For VPX, VXS, CompactPCI and VME64x
applications
Inserter/extractor handle, type XL, allows keying/
coding and insertion/extraction forces up to 1500 N
per pair
7.30 7.31
04605005
For e.g. VMEbus applications
Trapeziform extractor handle, type 2 7.33 7.35
04604059
For e.g. VMEbus applications
Trapeziform extractor handle, type 1 7.40 7.42
04692005
For Multibus® II applications
Extractor handle, multibus type II, IEC 60297 – 7.46
04692011
For plug-in units in accordance with IEC 60297
Extractor handle in key form 1 – 7.48
04692008
For plug-in units in accordance with IEC 60297
Extractor handle in key form 2 – 7.51
04692010
For plug-in units in accordance with IEC 60297
Static handle 7.54 7.56
04692003

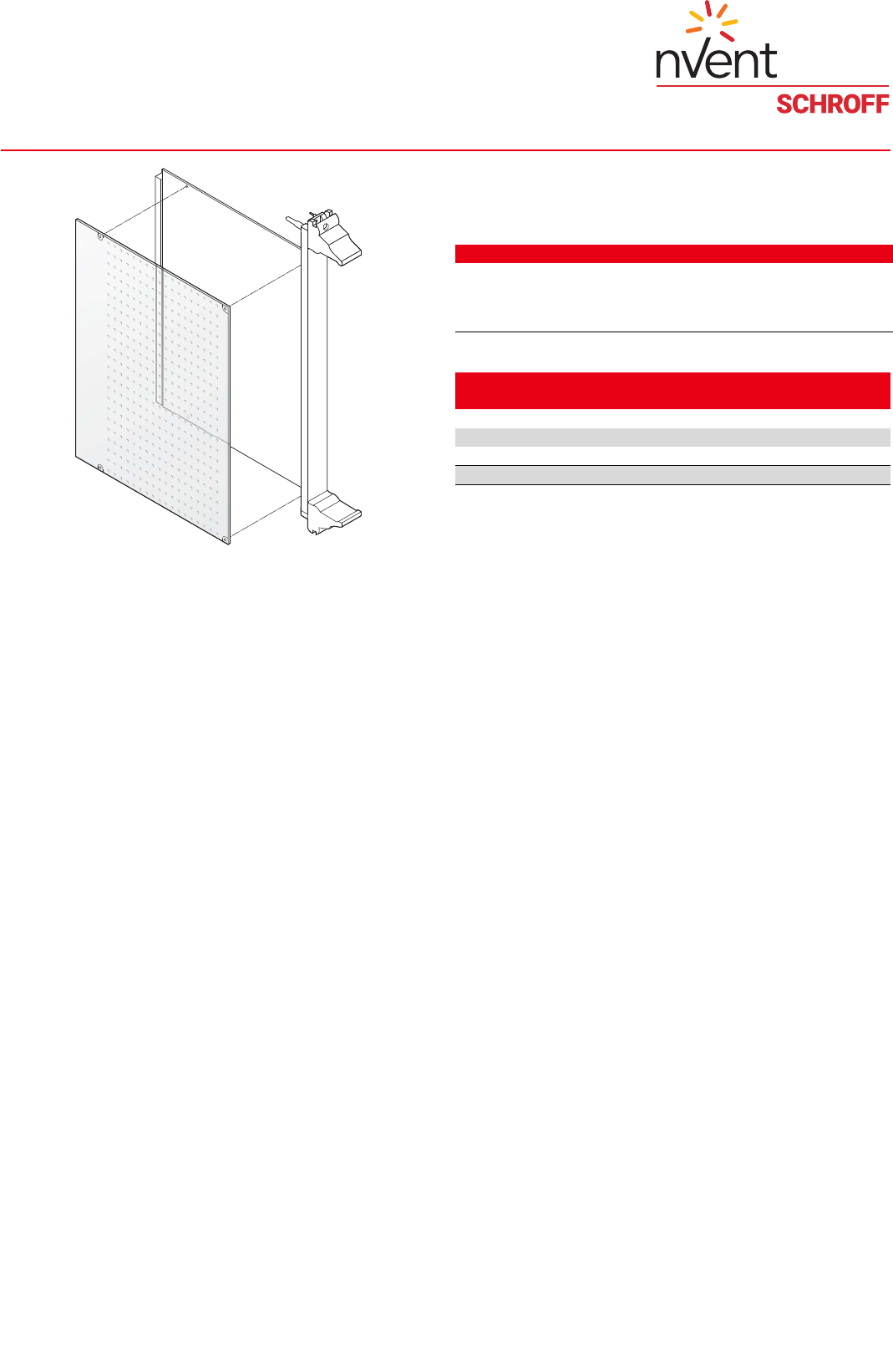

Accessories for plug-in units
Mechanical protection for static trapeziform handle
and fixing materials kit
7.64 –
04692004
Overview . . . . . . 7.17
Plug-in units with injector and
extractor handles
For CompactPCI and
VME64x
applications . . . . . 7.18
For VPX, VXS,
CompactPCI and
VME64x
applications . . . . . 7.30
For e.g. VMEbus
applications
type 2 . . . . . . . . . . . . 7.33
For e.g. VMEbus
applications
type 1 . . . . . . . . . . . . 7.40
For Multibus®
II applications . . . . 7.46
For plug-in units in
accordance with IEC
60297 . . . 7.48
For plug-in units in
accordance with IEC
60297 . . . 7.51
For plug-in units in
accordance with IEC
60297 . . . 7.54
Accessories for
plug-in units . . . . . 7.62

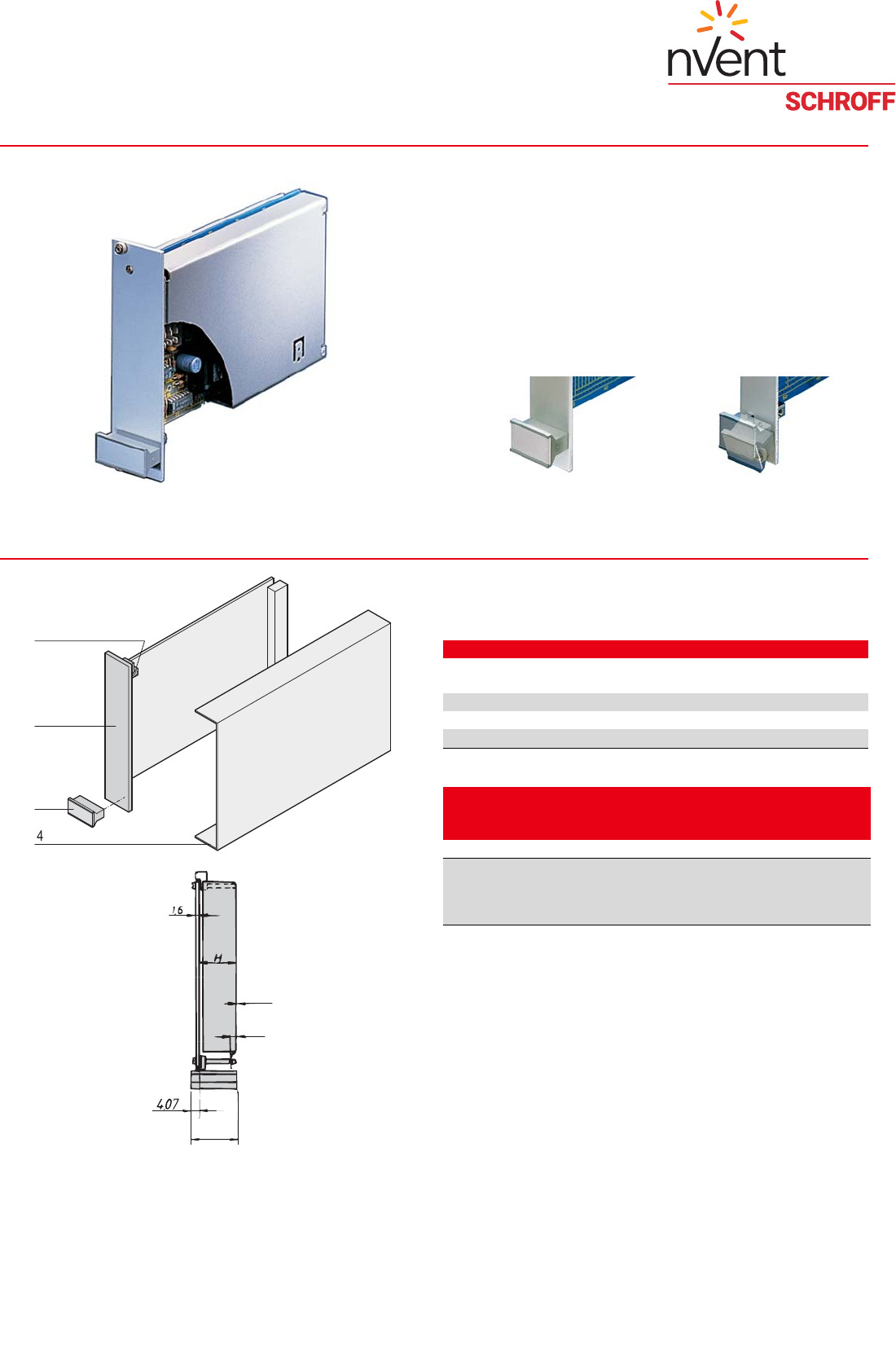

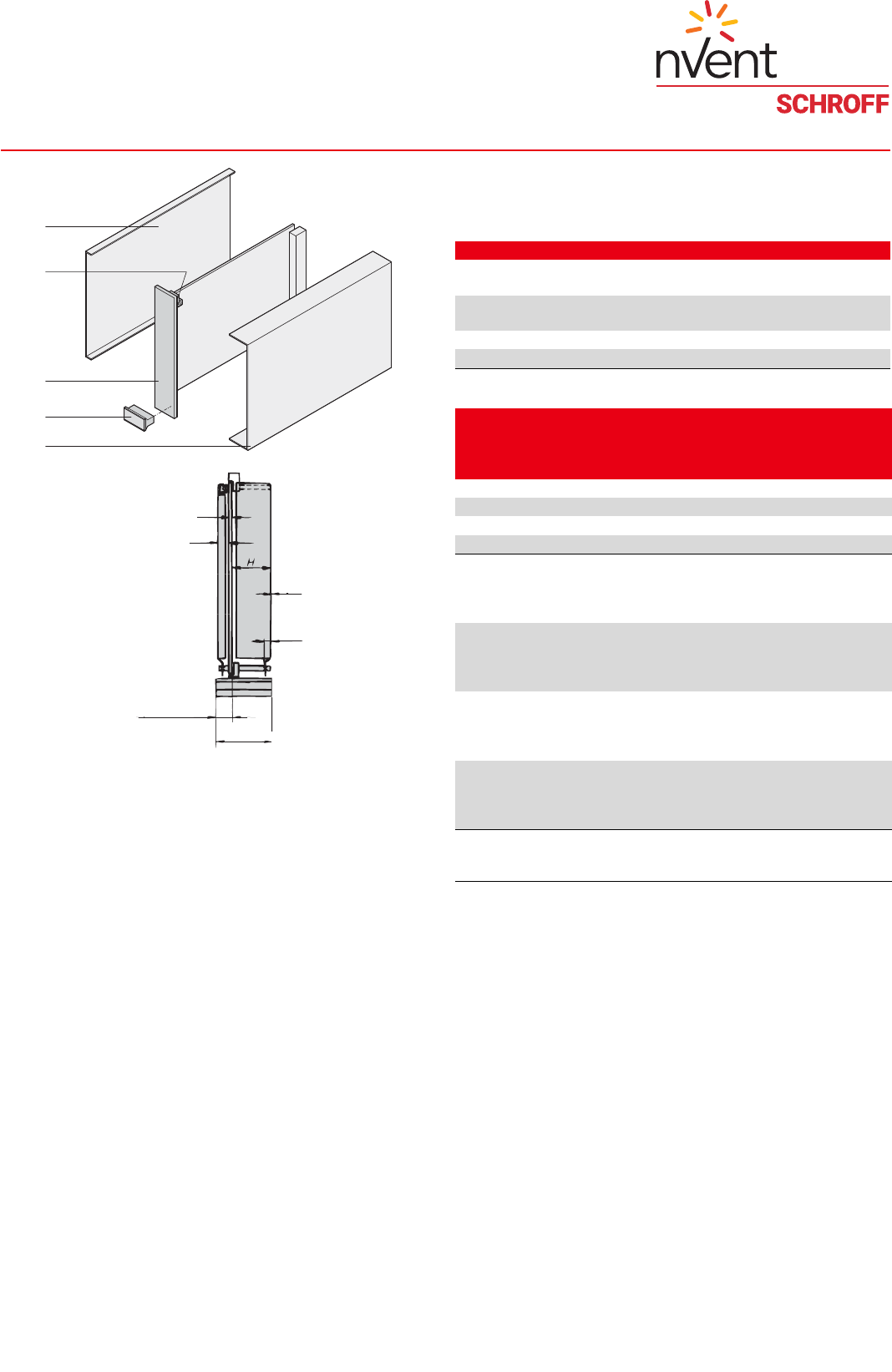

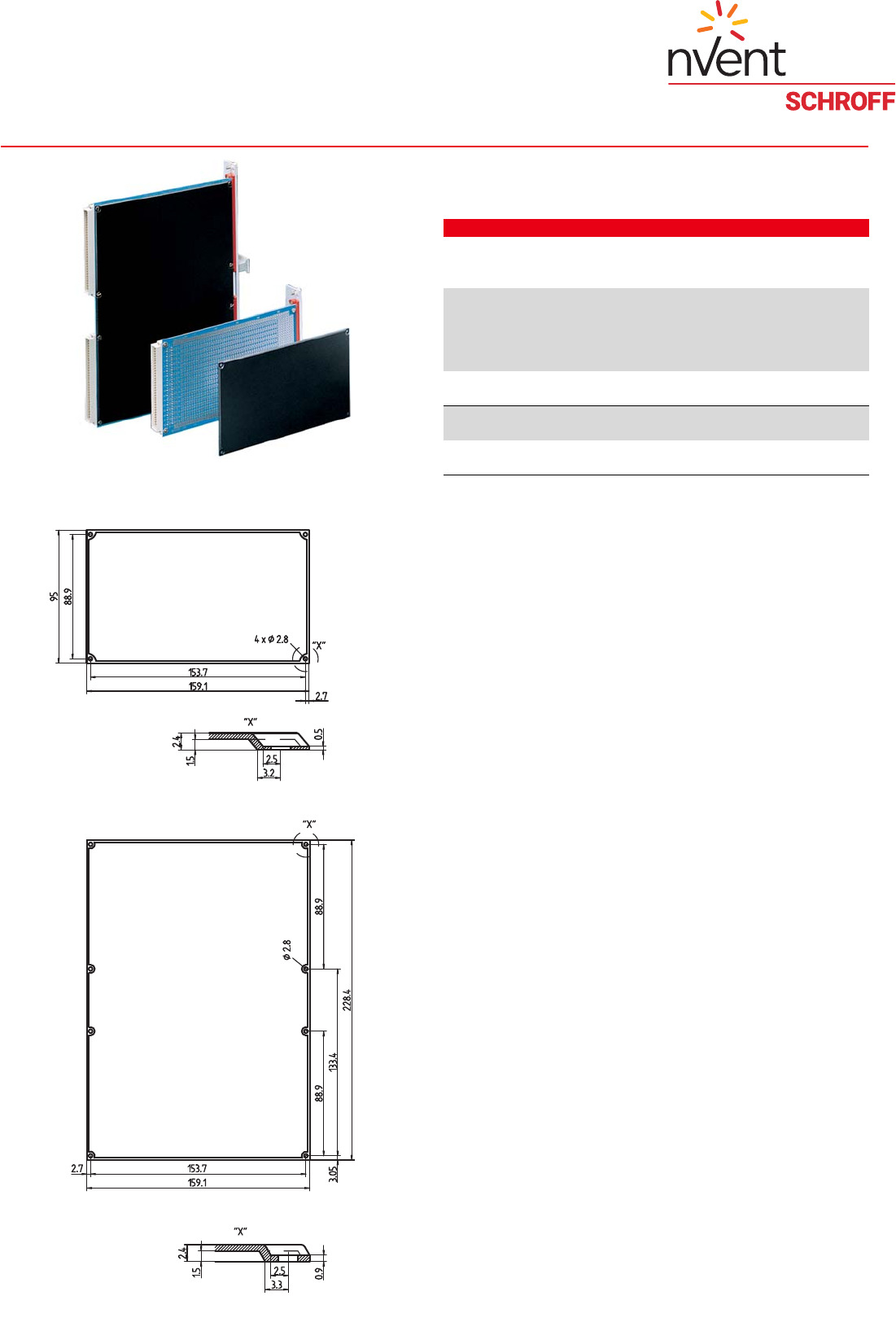

PCB cover . . . . . . . 7.64
SCHROFF 6 U Height
SCHROFF PRODUCT CATALOG 05/2018
7.18 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x
|
for CompactPCI, VME64xMain CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
•In accordance with IEEE 1101.10 and IEC 60297-3-102
•Codable to IEC 60297-3-103/ IEEE 1101.10
•Front panel shielded
•Suitable for insertion and extraction forces up to 700 N (per pair)
•Suitable for fitting microswitches
DELIVERY COMPRISES (kit)
ORDER INFORMATION

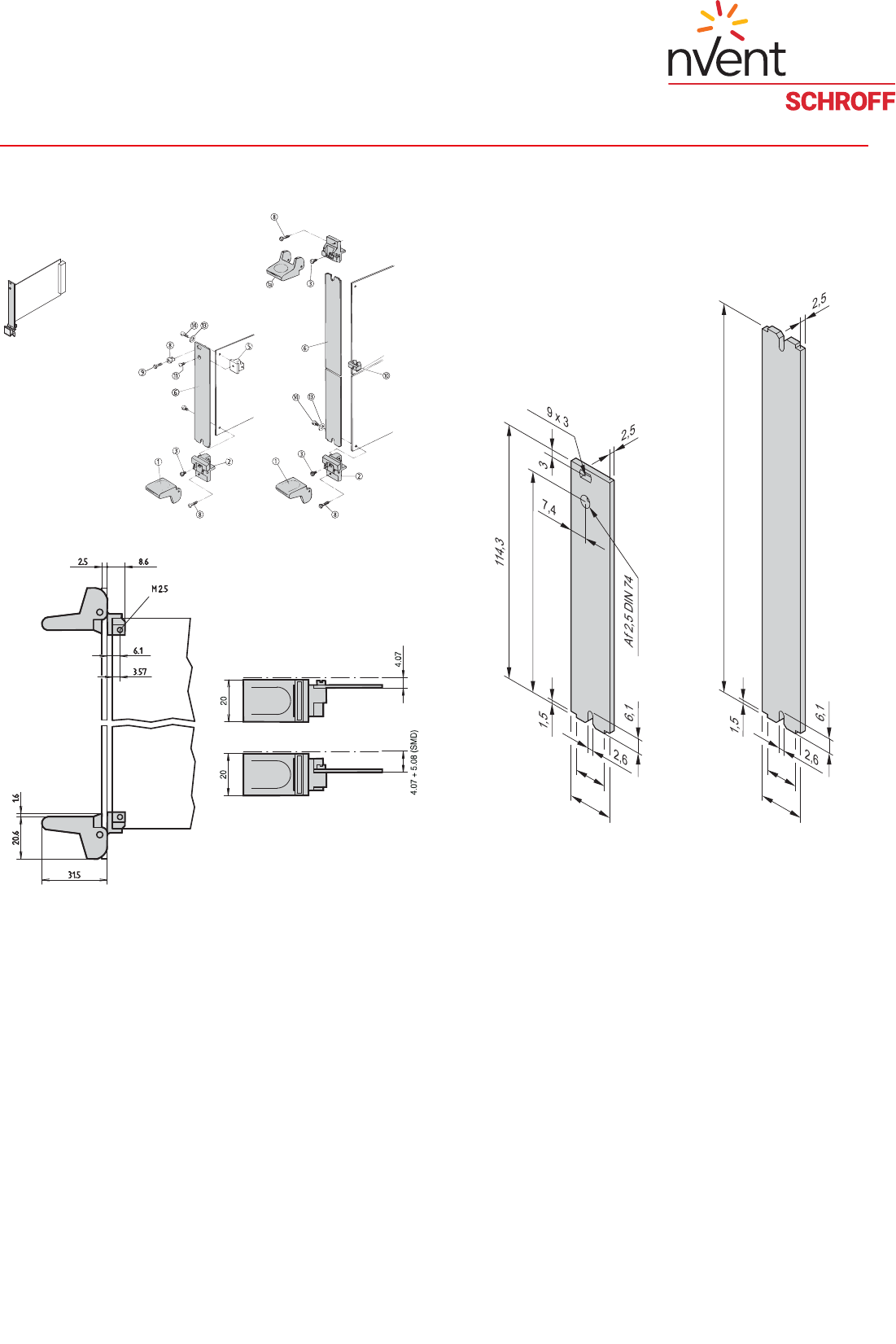

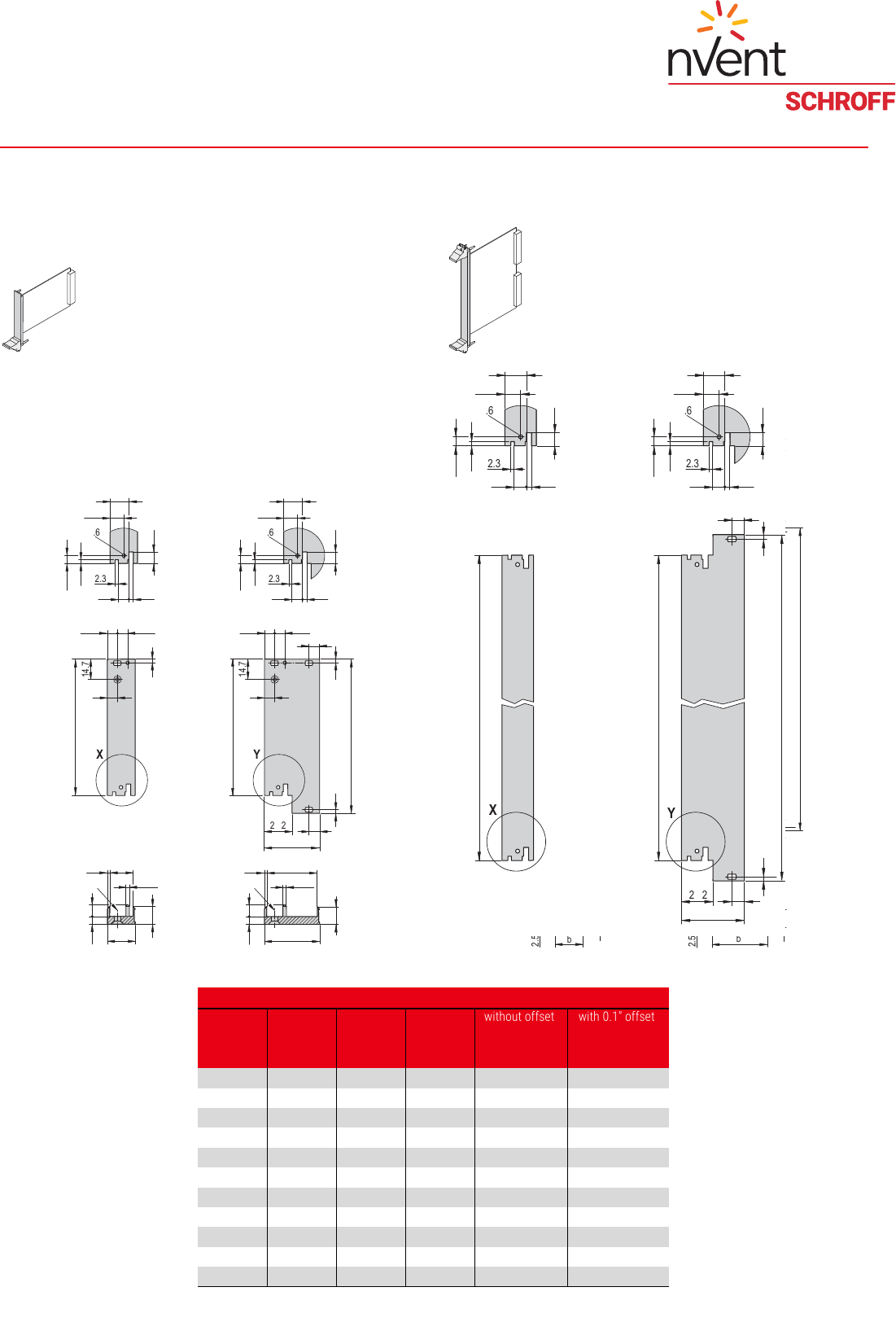

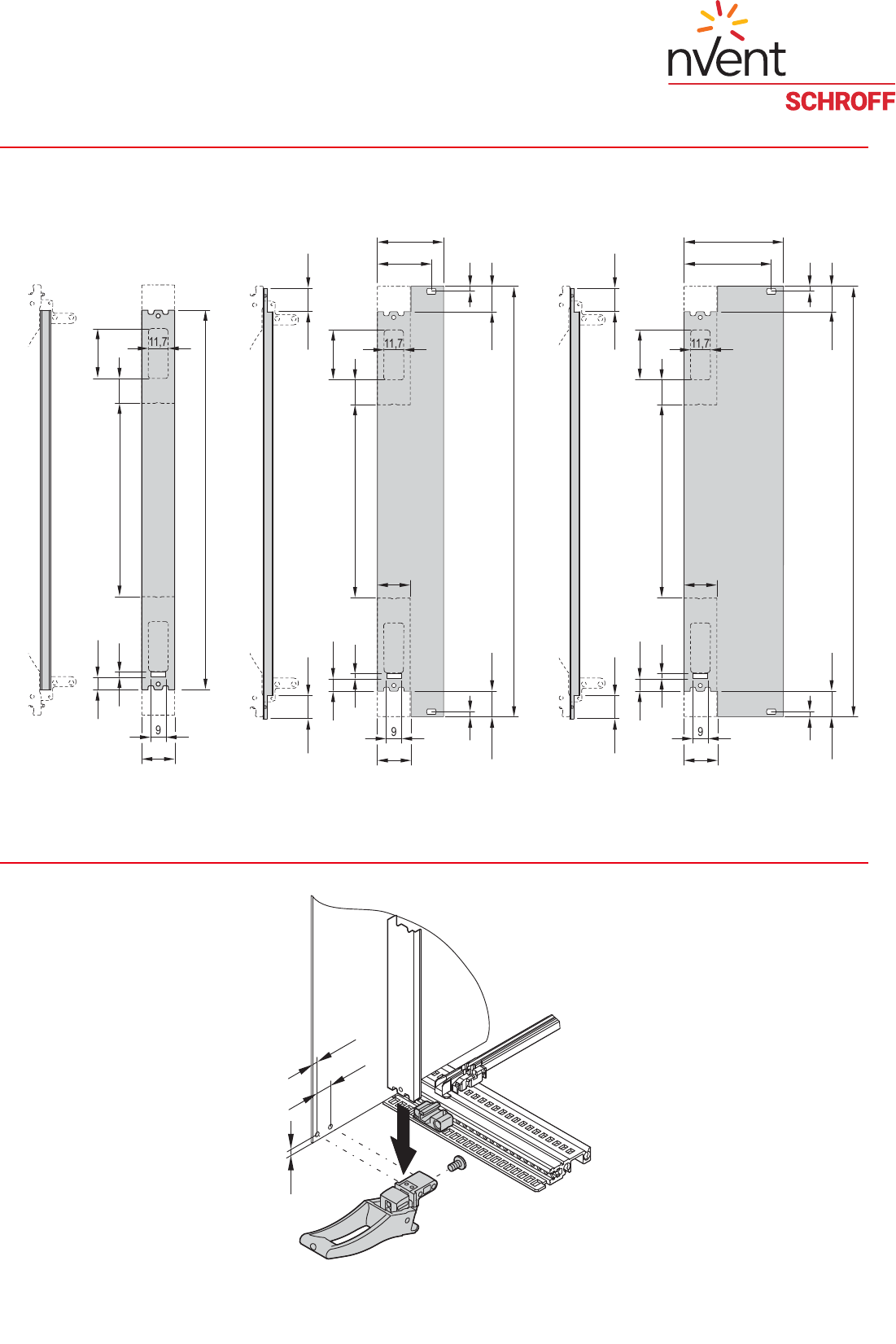

•Dimension drawing of front profile see page 7.26
•Description of microswitch see page 7.31

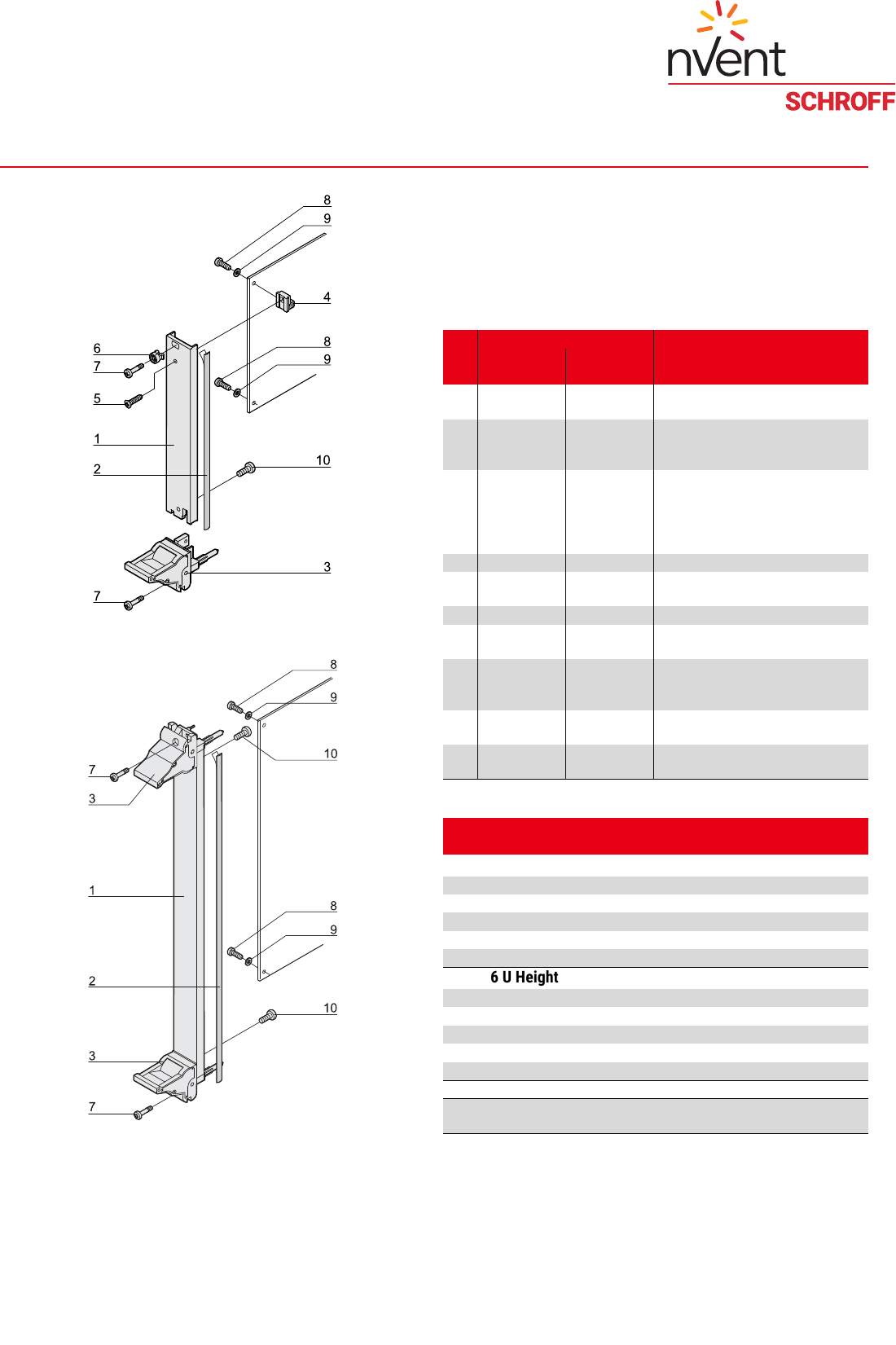

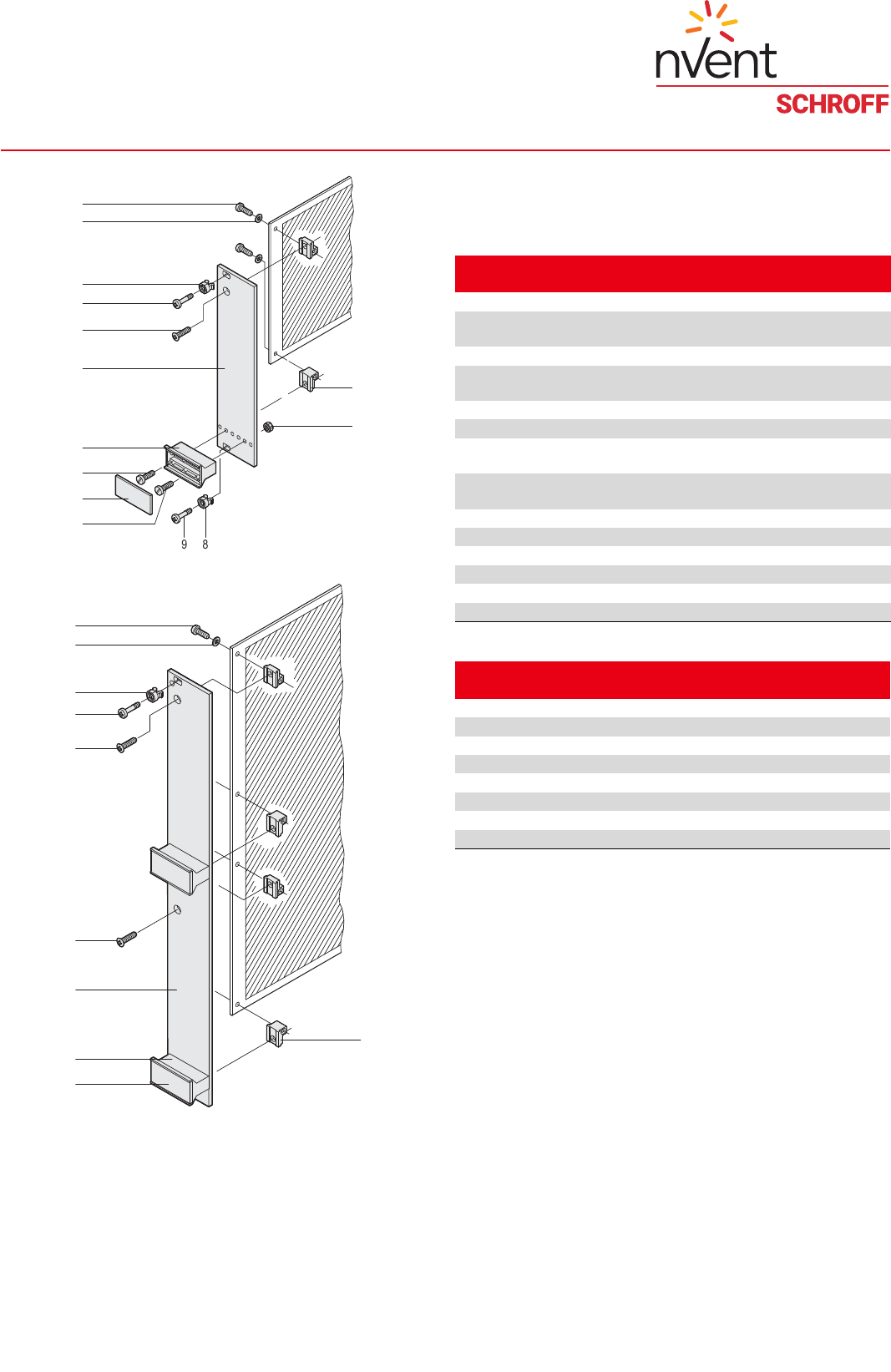

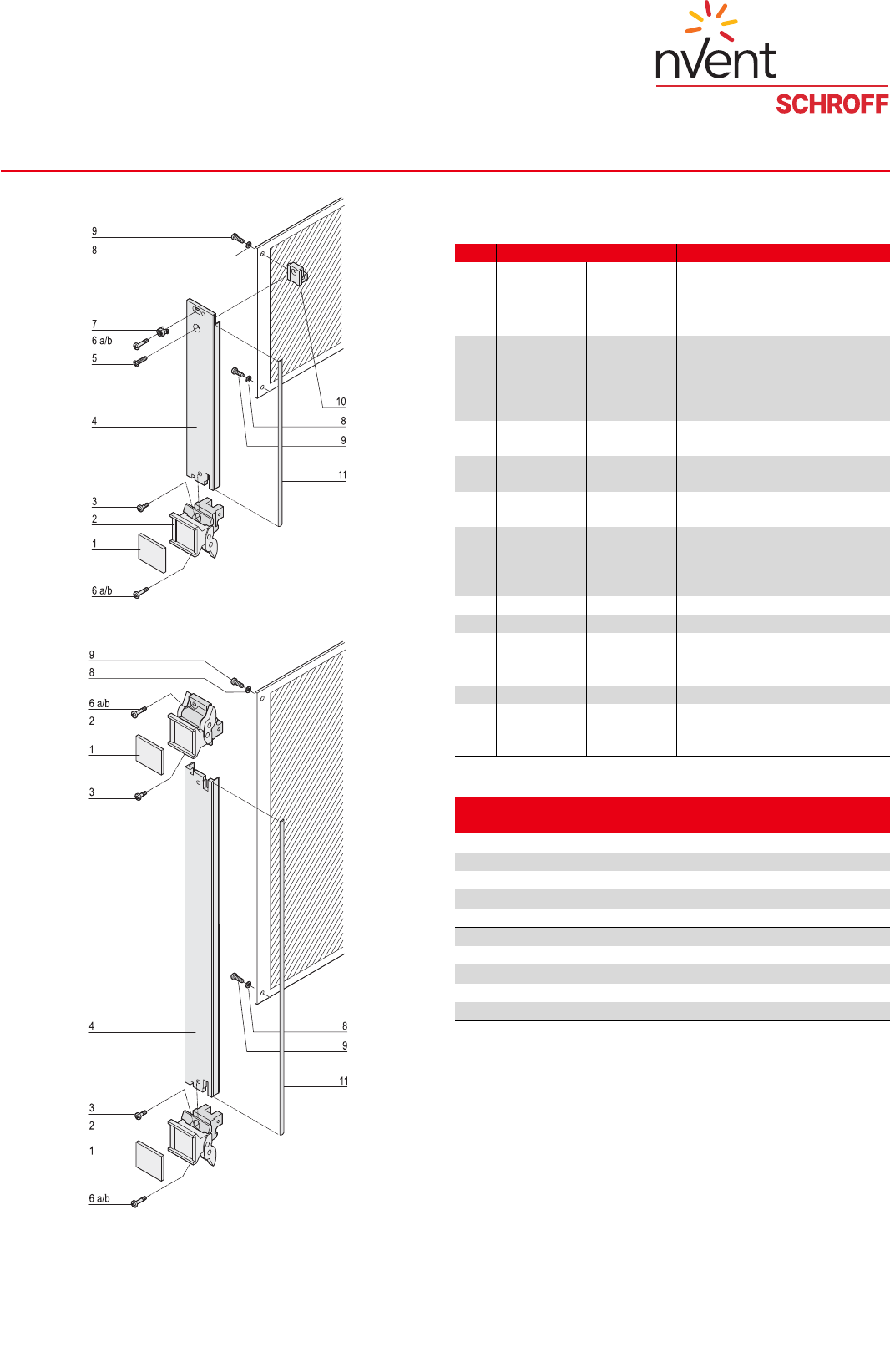

KITS PLUG-IN UNITS WITH IEL INSERTER/EXTRACTOR HANDLE
FOR COMPACTPCI/VME64X APPLICATIONS
3 U
04602073
6 U
04602074
Item Qty Description
3 U 6 U
<8HP ≥8HP <8HP ≥8HP
1 1 1 1 1 Front panel (U profile), AI,
front anodised, rear conductive
2 1 1 1 1 EMC sealing (textile),
core: foam,
sleeve: textile cladding, CuNi coated
3 1 1 2 2 Handle with integrated alignment pin for
perforated strips and guide rails,
lever: plastic, PC, black, RAL 9005
key: plastic, PC, light grey,
RAL 7035
4 1 1 - - Board support, die-cast zinc
5 1 1 - - Raised Pozidrive countersunk screw
M2.5 × 8, St, nickel-plated
6 1 3 - 2 Sleeve, PA, grey
7 2 4 2 4 Pozidrive collar screw,
M2.5 × 12.3, St, nickel-plated
8 2 2 2 2 Panhead screw with Torx/slot, M2.5 × 6,
St,
zinc-plated, self-locking
9 2 2 2 2 Washer A2.7, DIN 125, St,
nickel-plated
10 1 1 2 2 Panhead screw with Torx, M2.5 × 7, St,
nickel-plated
Width Part no. Part no.
HP Rear I/O Front assembly
3 U Height
4
20848-751 20848-585
6
- 20848-587
8
20848-752 20848-589
10
- 20848-590
12
-20848-591
6 U Height
4
-20848-592
6
- 20848-594
8
-20848-596
10
- 20848-597
12
-20848-598
Accessories
Microswitch for handles,
CompactPCI/VME64x application PU 10 pieces
20817-606
2"— m/ent SCHROFF
7.19
Plug-in units – for CompactPCI, VME64x
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
for CompactPCI, VME64xPart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
•Suitable for insertion and extraction forces up to 700 N (per pair)
•Version for telecoms applications
•To IEEE 1101.10 and IEC 60297-3-102
•Codable to IEC 60297-3-103/ IEEE 1101.10
•Front panel, shielded (3 U, 6 HP)
•designed for fitting of microswitches
•Online download of 3D CAD data
DELIVERY INCLUDES (Kit)
ORDER INFORMATION
•For description of coding peg and microswitch see page 7.23
•Description of microswitch see page 7.31

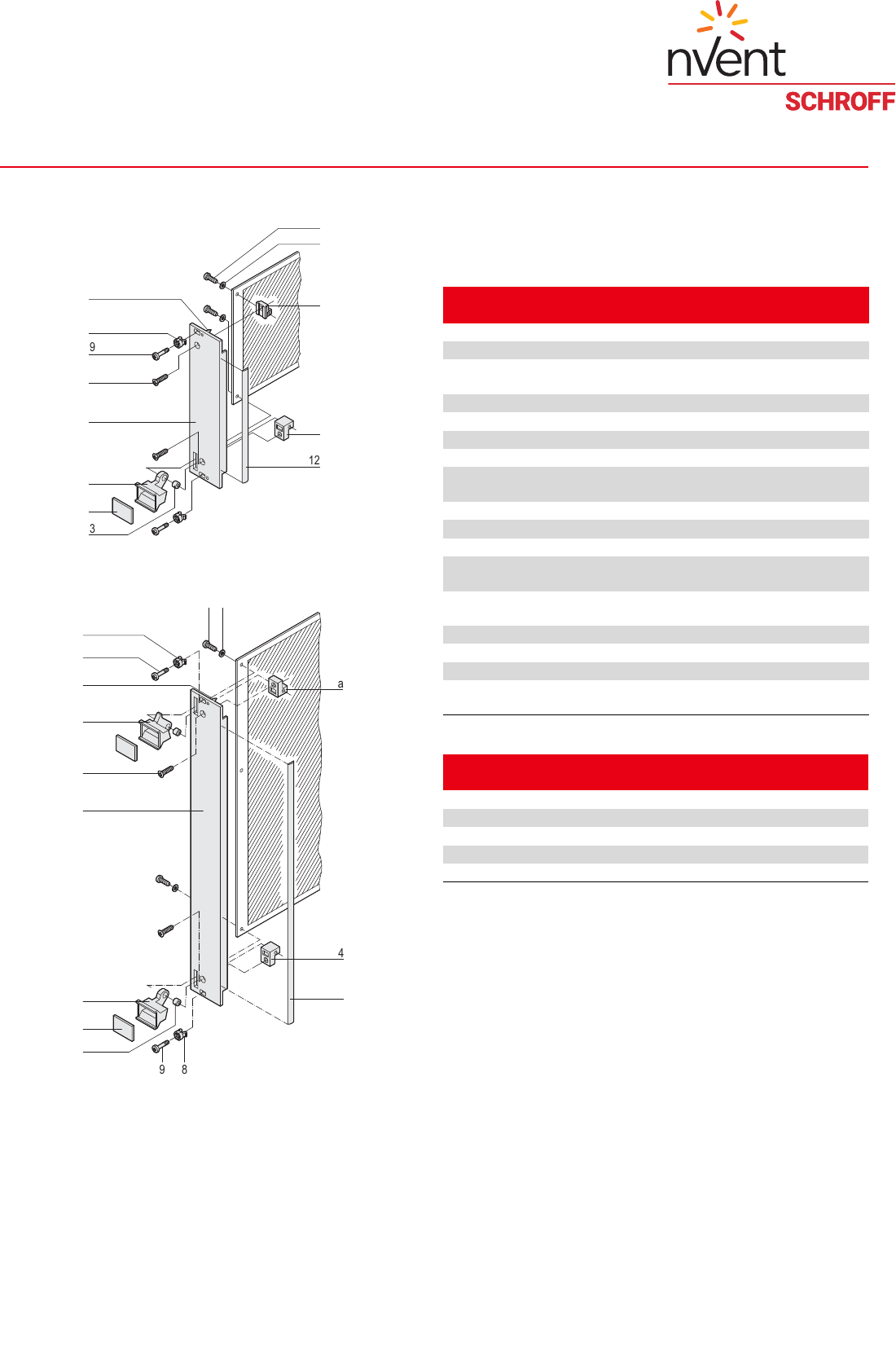

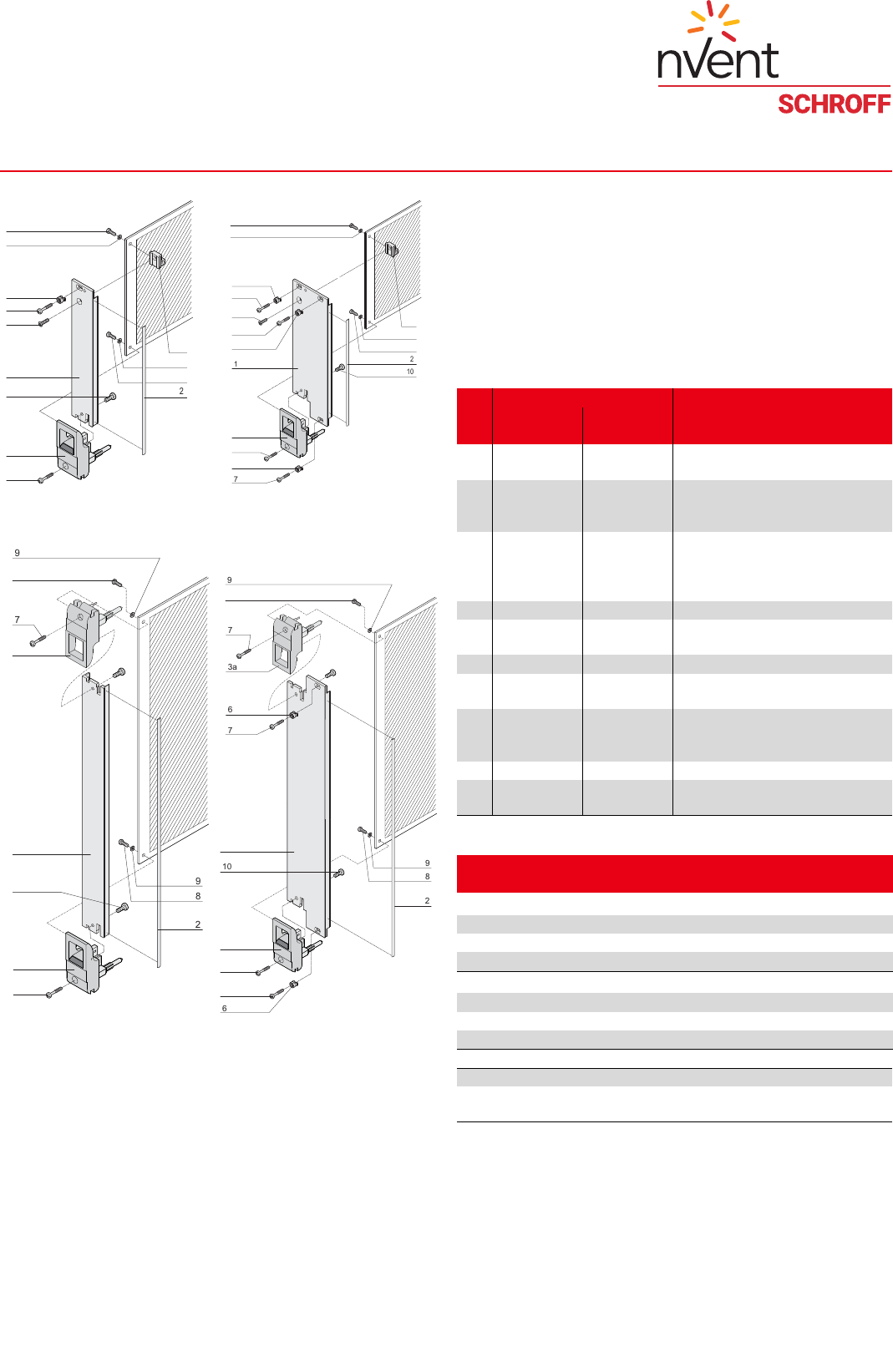

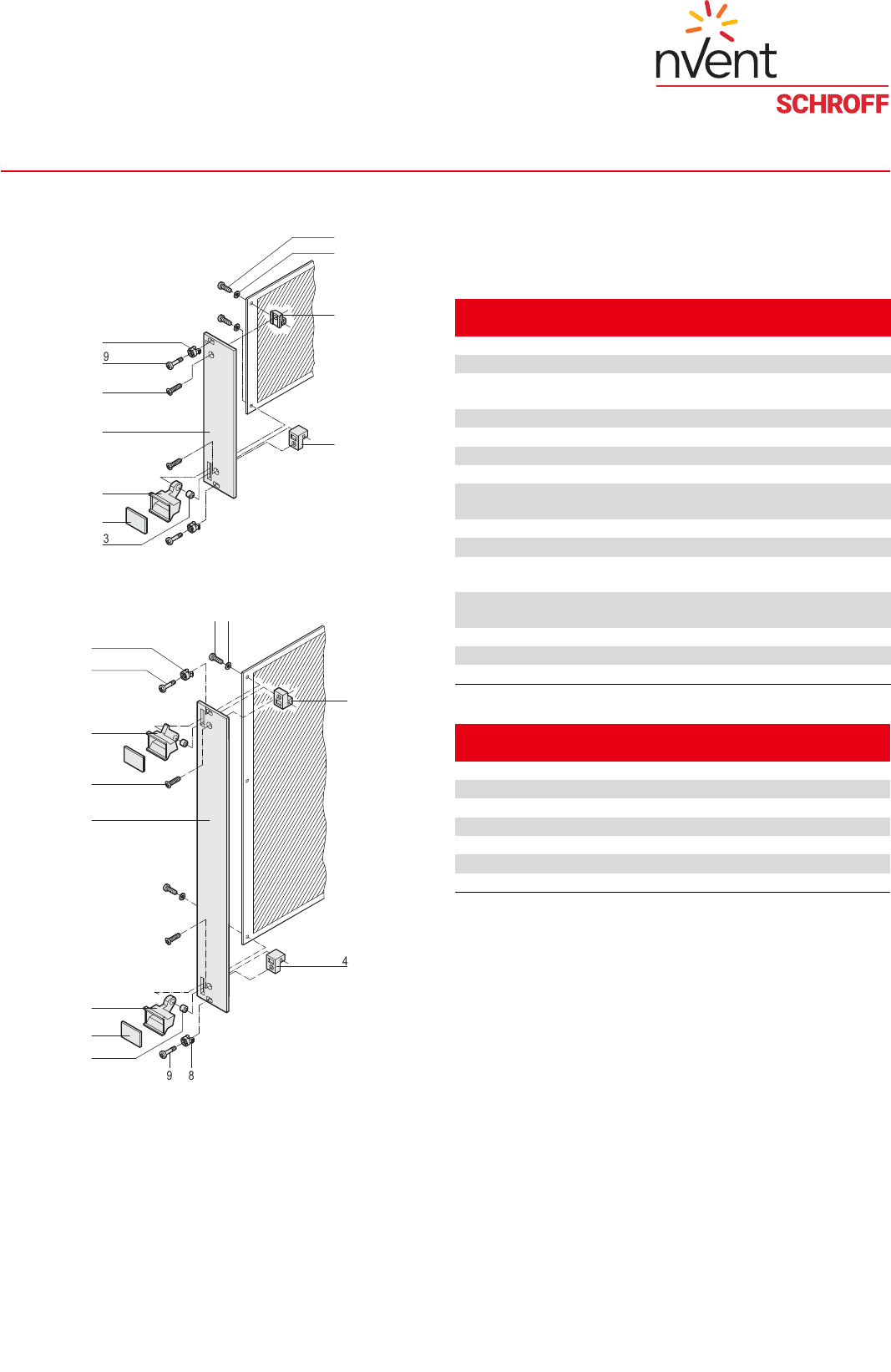

KITS PLUG-IN UNITS WITH IET INSERTION/EXTRACTOR
HANDLE FOR COMPACTPCI/VME64X APPLICATIONS
3U
04613051 04613052
< 8 HP ≥8HP
6U
04613053 04613054
< 8 HP ≥8HP
1
5
7
8
2
9
4
6
9
8
3
10
7
8
2
10
9
4
9
8
5
7
7
6
6
1
3
7
7
6
2
8
9
1
10
3a
7
8
9
3
7
2
8
9
8
9
3a
6
7
7
1
10
3
7
7
6
Item Qty Description
3U 6U
<8 HP ≥8 HP <8 HP ≥8 HP
1 1 1 1 1 Front panel (U profile), AI,
front anodized, rear conductive
2 1 1 1 1 EMC sealing (textile),
core: foam,
sleeve: textile cladding, CuNi coated
3 1 1 2 2 Handle with integrated alignment pin for
perforated strips and guide rails,
lever: plastic, PC, black, RAL 9005
Key: Plastic, PC, light gray, RAL 7035
4 1 1 - - Board support, die-cast zinc
5 1 1 - - Raised Pozidrive countersunk screw
M2.5 × 8, St, nickel-plated
6 1 3 - 2 Sleeve, PA, gray
7 2 4 2 4 Pozidrive collar screw, M2.5 × 12.3, St,
nickel-plated
8 2 2 2 2 Panhead screw with Torx/slot, M2.5 × 6,
St, zinc-plated,
self-locking
92222Washer A2.7, DIN125, St, nickel-plated
10 1 1 2 2 Panhead screw with Torx, M2.5 × 7, St,
nickel-plated
Width Part no.
HP
3 U Height
4
20848-763
8
20848-764
12
20848-765
6 U Height
4
20848-766
8
20848-767
12
20848-768
Accessories
Coding peg, PC, UL 94 V-0, grey, RAL 7035 PU 100 pieces
20817-501
Microswitch for handles,
CompactPCI/VME64x application PU 10 pieces
20817-606
SCHROFF 3 U Height W‘gfi 6 U Height
SCHROFF PRODUCT CATALOG 05/2018
7.20 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x
|

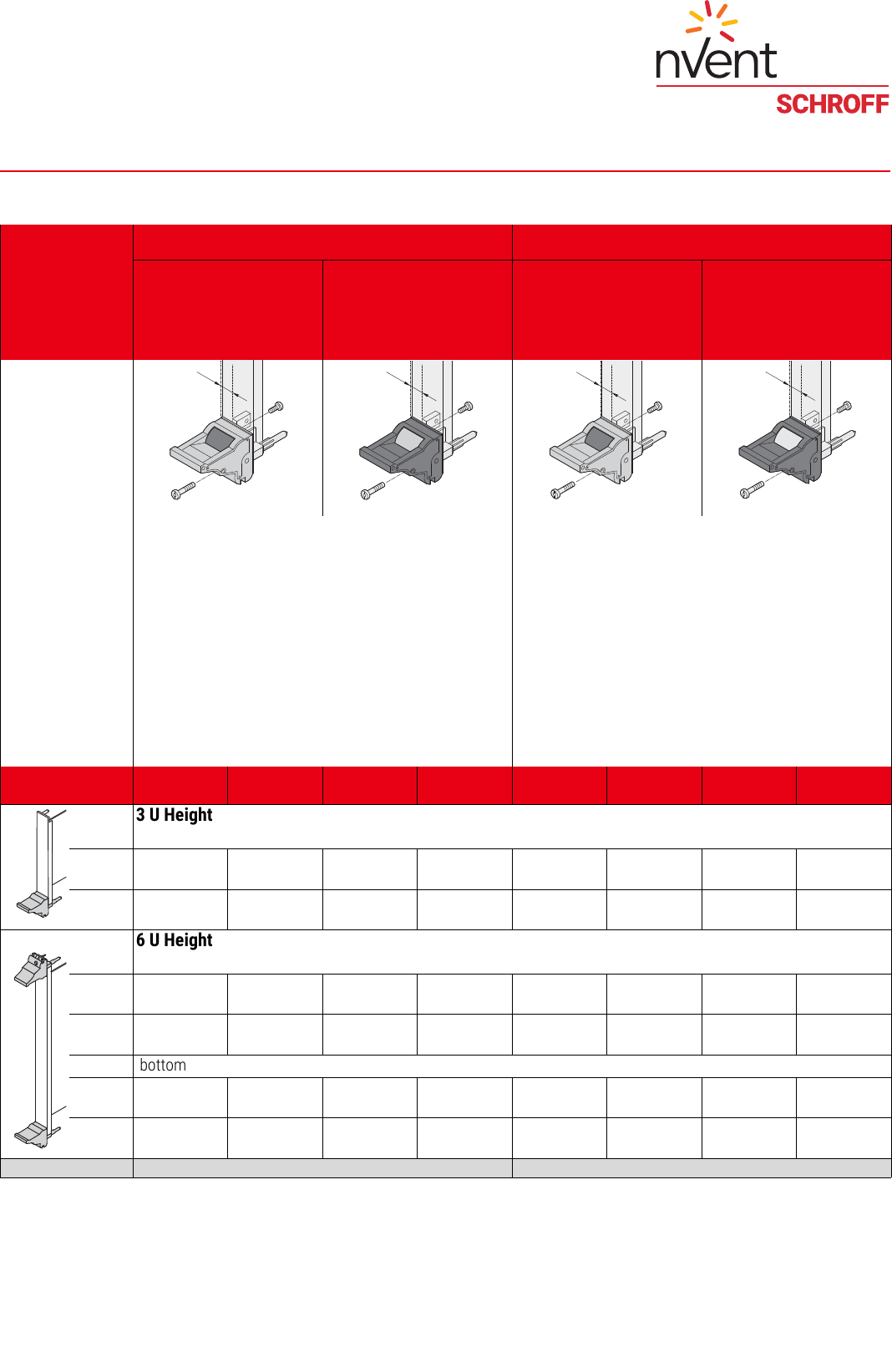

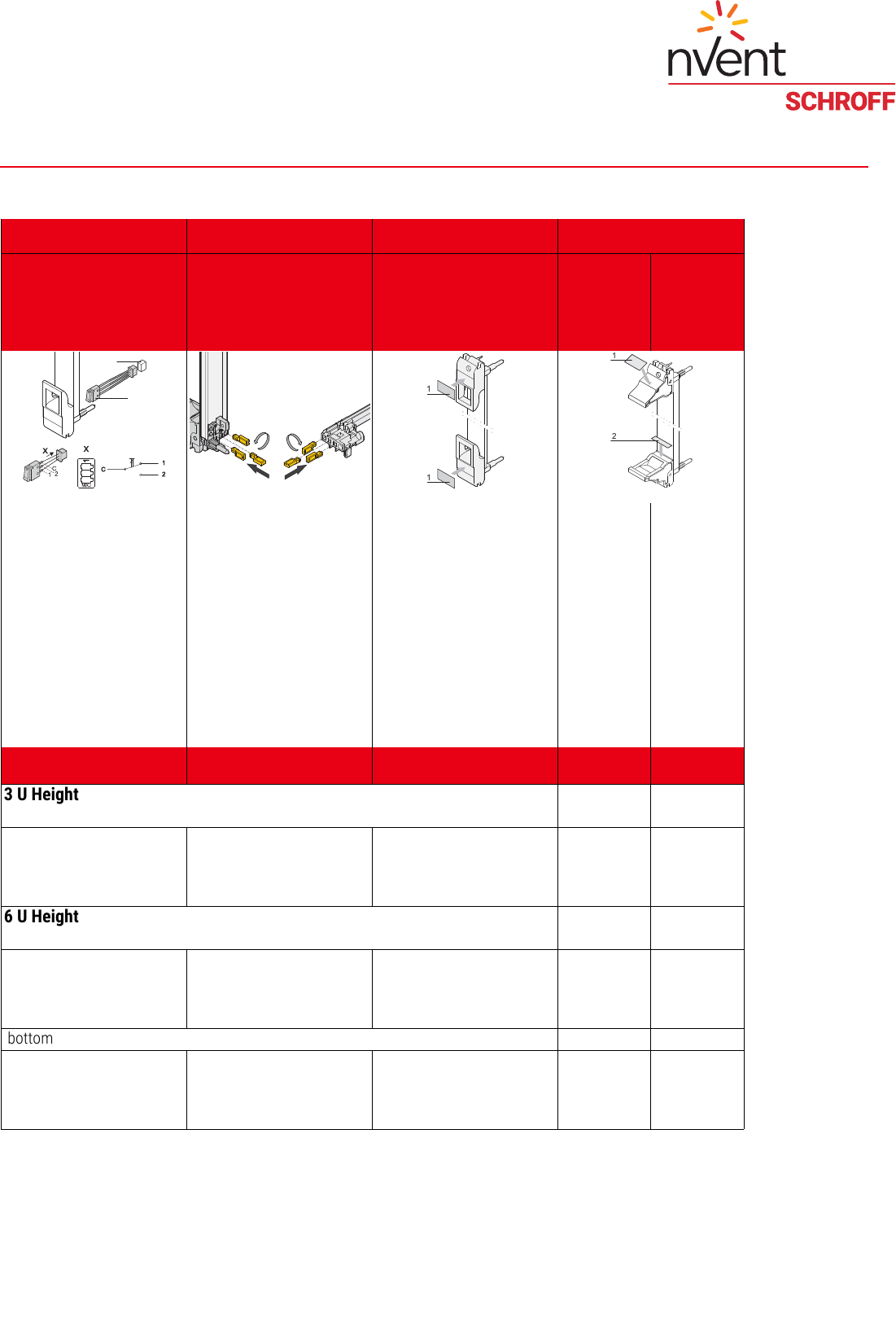

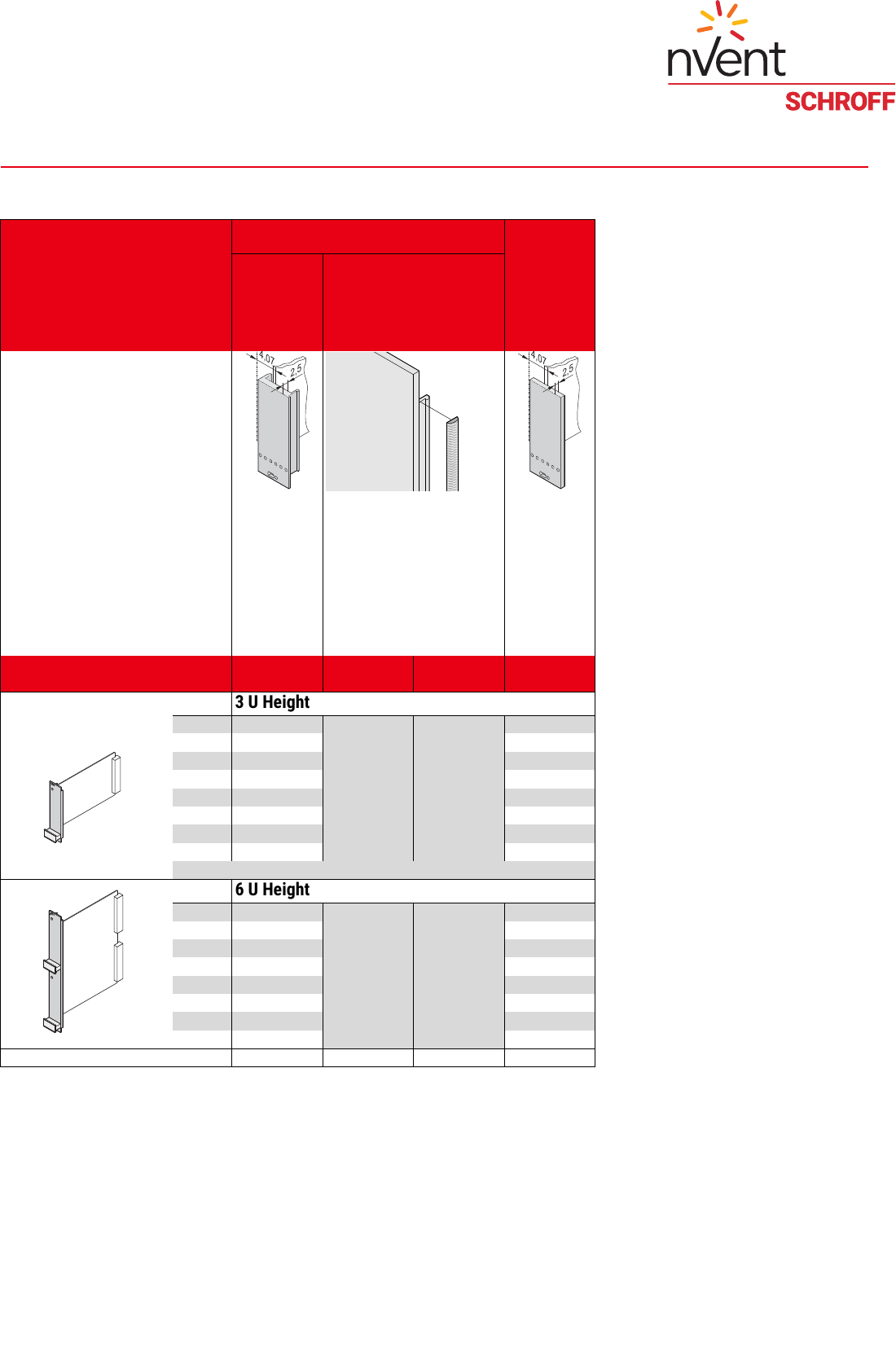

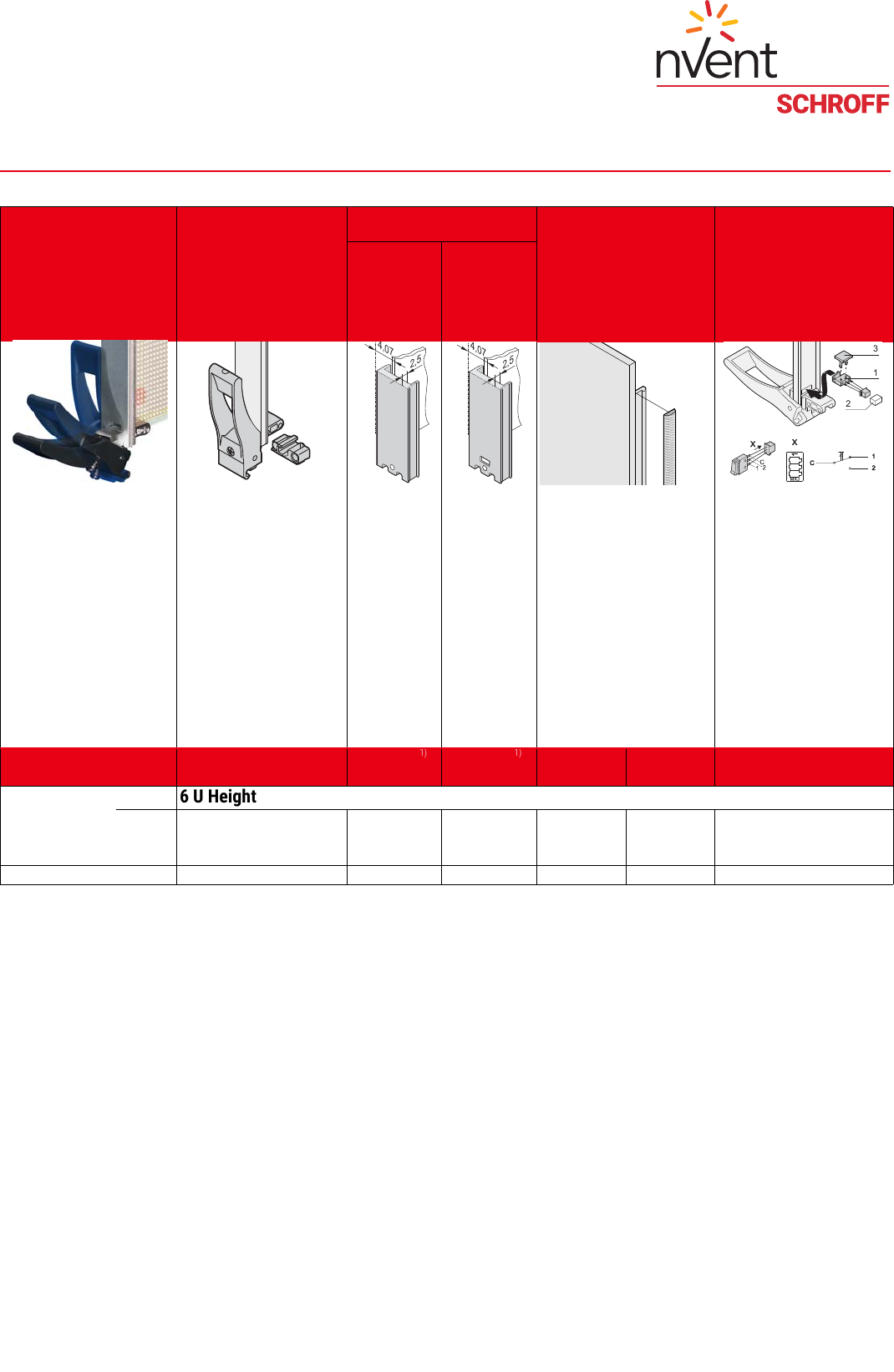

ORDER INFORMATION
INDIVIDUAL

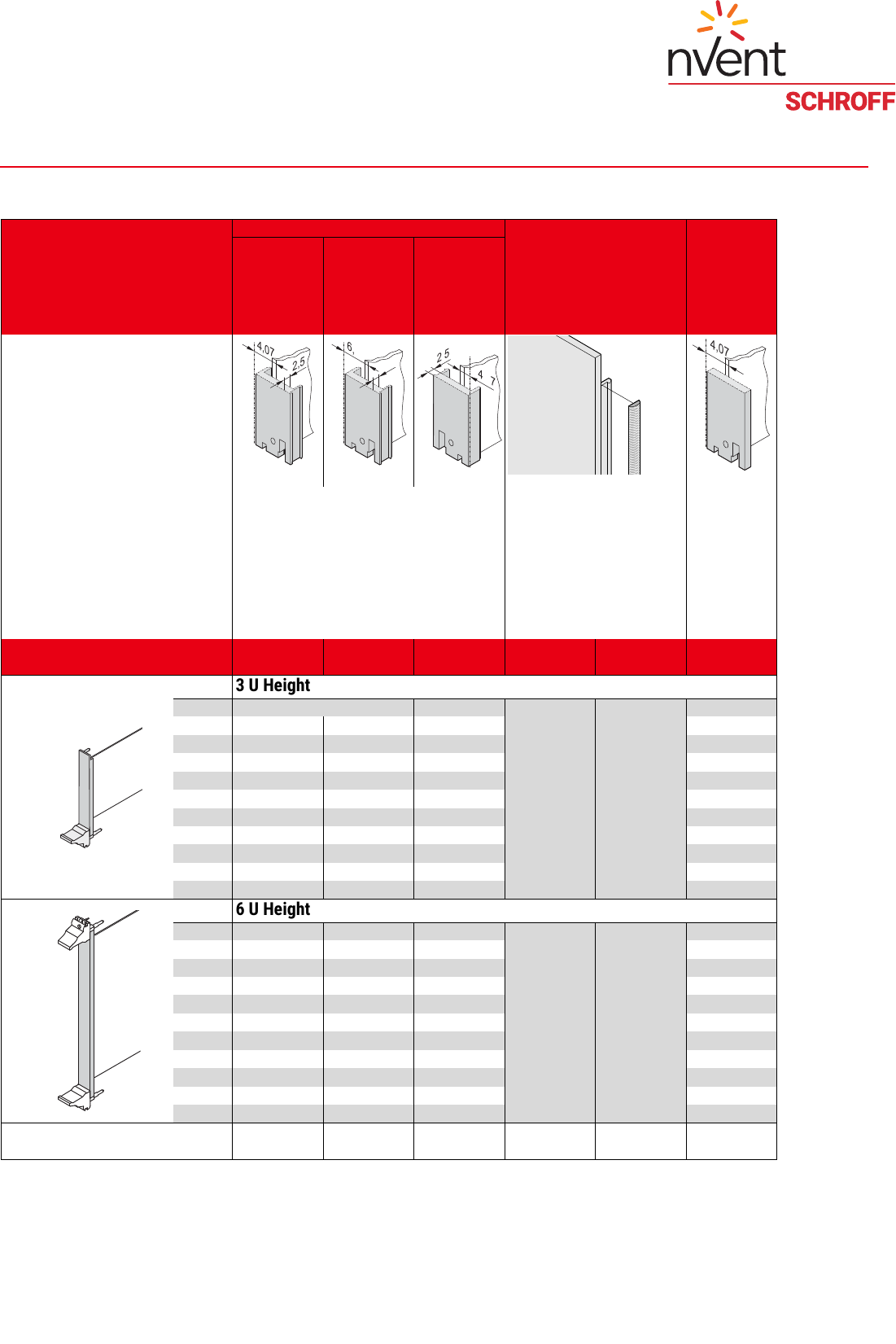

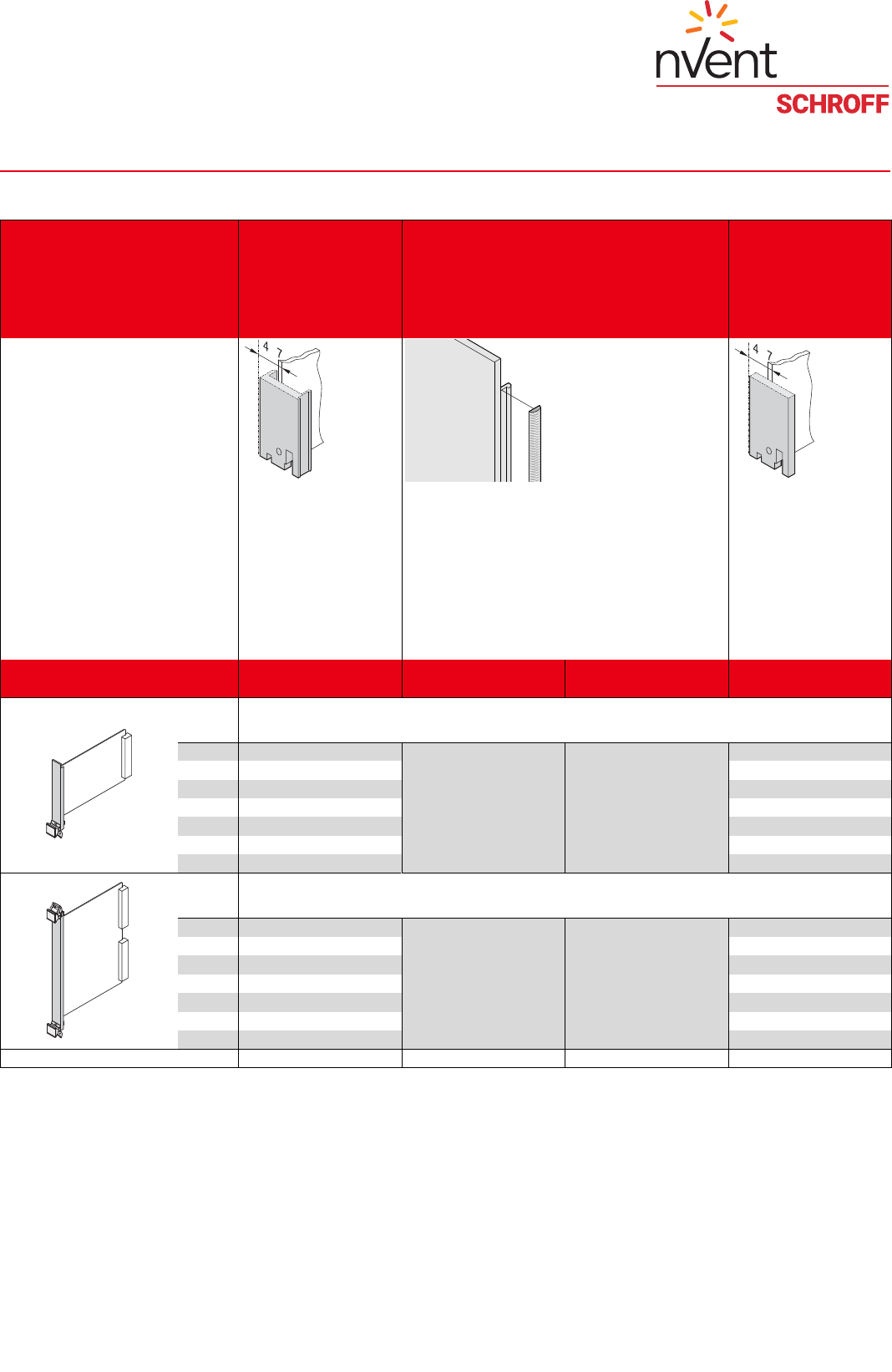

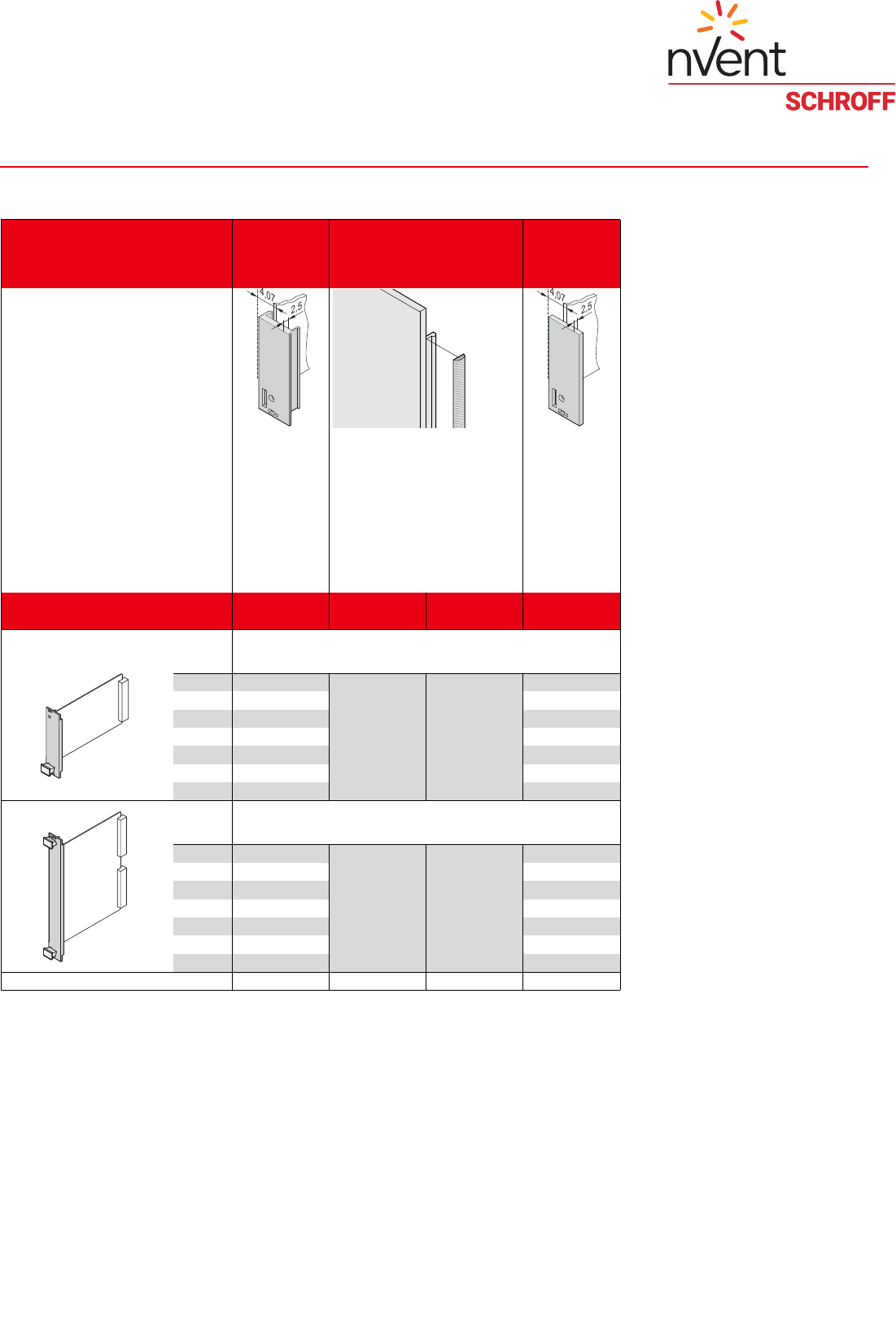

COMPONENTS FRONT PANELS, U-PROFILES, FOR EXTRACTOR HANDLES, TYPE IEL, IET
Front panel, U profile, shieldable Textile EMC gasket Front panel, flat,
unshielded,
front mounting
Front mounting Front mounting,
PCB fixing with
0.1" offset
Rear I/O
mounting
04608060 04608062 04608061 BGA45760 04608063
Al extrusion, 2.5 mm, front anodised,
rear conductive; alignment pin pressed-in (3 U only),
stainless steel; manufacturing process causes various
surface structures to appear between 4 to 12 HP and 14 to
16 HP
always fixed laterally on the front panel,
in the groove of the profile,
textile gasket, core: foam,
sleeve: textile cladding with
CuNi coating, UL 94 V-0, temperature
range -40 ... 70 °C
front panel, Al, 2.5
mm,
front anodised,
rear irisdescent
green chromated
Width 1 piece (SPQ 5)1) 1 piece (SPQ 5)1) 1 piece (SPQ 5)1) PU 10 pieces PU 100 pieces 1 piece (SPQ 5)1)
HP
3 U Height
4
30848-312 30848-426 30848-867
21101-853 21101-854
30848-327
5
30848-300 30848-427
–
30848-328
6
30848-313 30848-428
–
30848-329
7
30848-301 30848-429
–
30848-330
8
30848-314 30848-430 30848-869 30848-331
9
20848-227
–– –
10
30848-315 30848-431
–
30848-333
11
20848-228
–– –
12
30848-316 30848-432 30848-985 30848-335
14
20848-230
–– –
04608067 16
20848-232
– – –
6 U Height
4
30848-317 30848-317 30848-317
21101-855 21101-856
30848-336
5
30848-304 30848-304 30848-304 30848-337
6
30848-318 30848-318 30848-318 30848-338
7
30848-305 30848-305 30848-305 30848-339
8
30848-319 30848-319 30848-319 30848-340
9
20848-243 20848-243 20848-243
–
10
30848-320 30848-320 30848-320 30848-342
11
20848-244 20848-244 20848-244
–
12
30848-321 30848-321 30848-321 30848-344
14
20848-246 20848-246 20848-246
–
04608066 16
20848-248 20848-248 20848-248
–

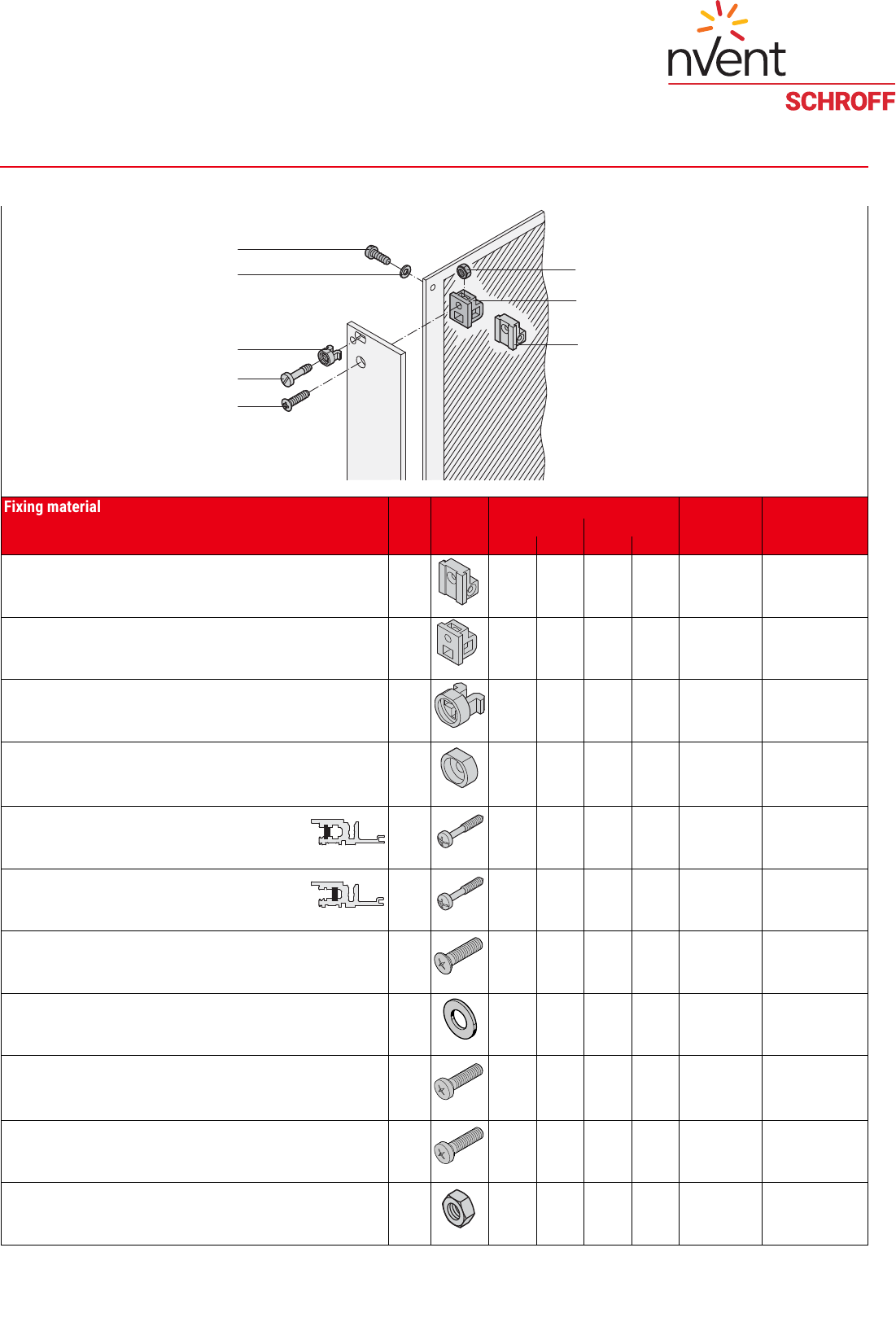

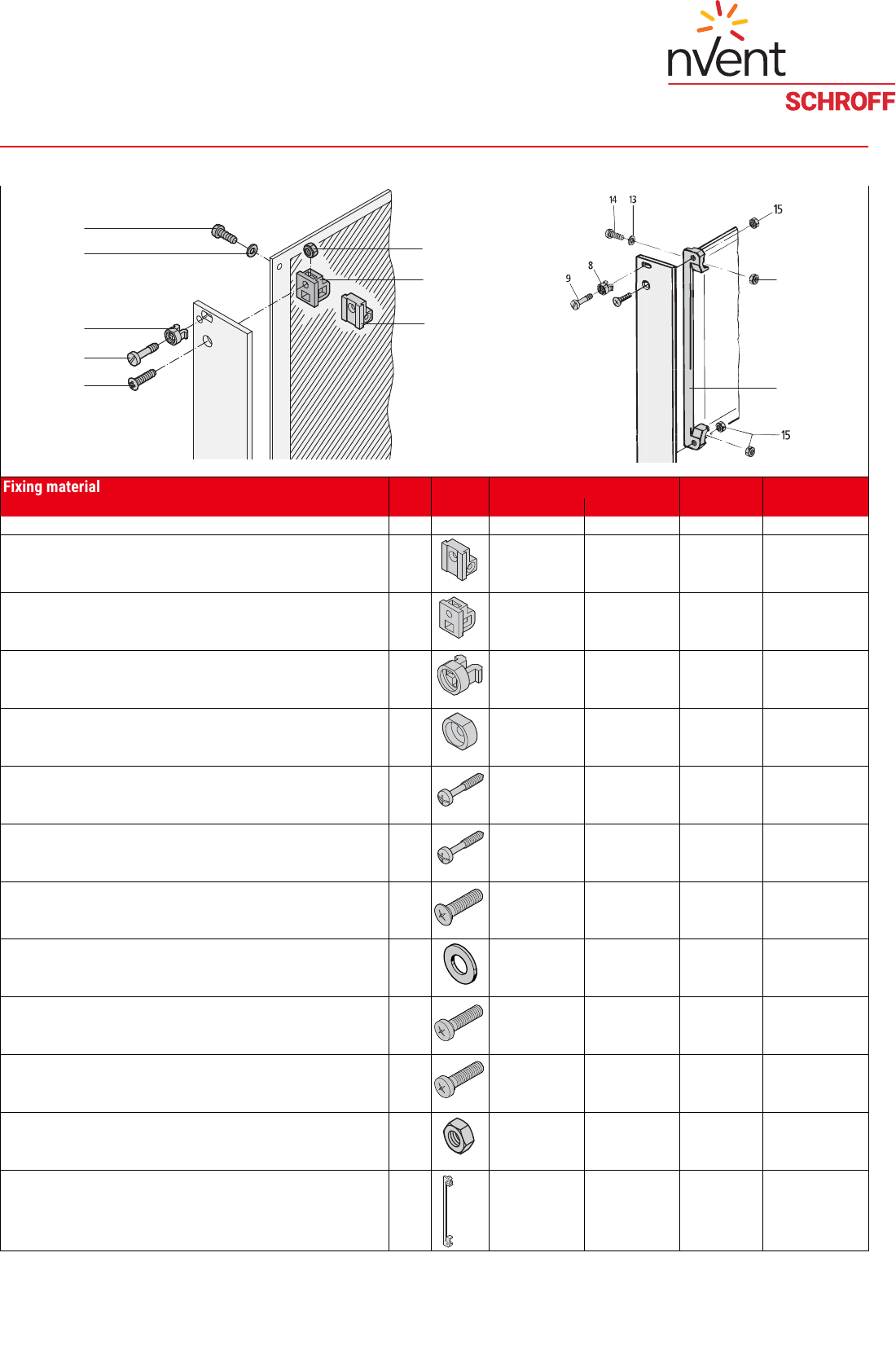

Fixing material see page 7.23 7.23 7.23 7.23
Dimensions see page 7.26 7.26 7.25 7.27
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
4,07
2,5
6,61
2,5
4,07
2,5
4,07
2"— m/ent SCHROFF 3 U Height 6 U Height bouom Mb
7.21
Plug-in units – for CompactPCI, VME64x
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL

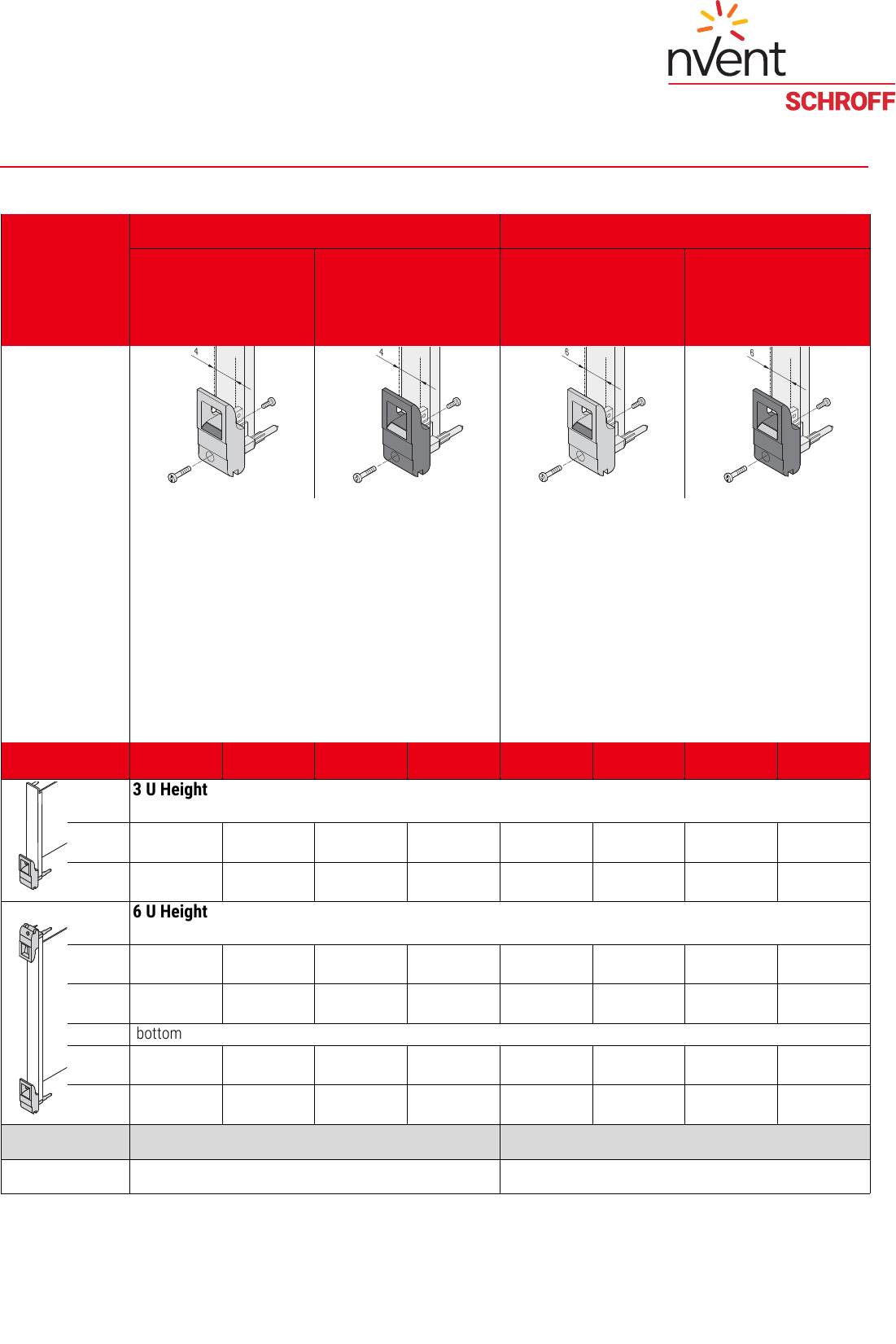

COMPONENTS INSERTER/EXTRACTOR HANDLE, TYPE IEL
Inserter/extractor handle, type IEL,
board fixing without offset
Inserter/extractor handle, type IEL,
board fixing with 0.1" offset
lever: light grey, RAL 7035 key:
black, RAL 9005
lever: black, RAL 9005 key: light
grey, RAL 7035
lever: light grey, RAL 7035 key:
black, RAL 9005
lever: black, RAL 9005 key: light
grey, RAL 7035
04608050 04608052 04608051 04608053
in accordance with IEEE 1101.10 and IEC 60297-3-102,
with locking,
suitable for insertion and extraction forces up to 700 N (per pair), suitable for fitting
of microswitches;
block die-cast zinc, nickel-plated,
with integrated alignment pin for perforated strip,
codable to IEEE 1101.10 and IEC 60297-3-103,
lever/key UL 94 V-0,
slotted Pozidrive collar screw, M2.5 x 12.3, St, nickel-plated,
panhead screw with Torx, M2.5 x 7, St, nickel-plated
in accordance with IEEE 1101.10 and IEC 60297-3-102,
with locking,
suitable for insertion and extraction forces up to 700 N (per pair), suitable for fitting
of microswitches;
0.1" offset is used for PSUs with SMD Plus,
block die-cast zinc, nickel plated;
with integrated alignment pin for perforated strip,
codable to IEEE 1101.10 and IEC 60297-3-103,
lever/key UL 94 V-0,
slotted Pozidrive collar screw, M2.5 x 12.3, St, nickel-plated,
panhead screw with Torx, M2.5 x 7, St, nickel-plated
Assembly PU 10 pieces PU 100 pieces PU 10 pieces PU 100 pieces PU 10 pieces PU 100 pieces PU 10 pieces PU 100 pieces
3 U Height
bottom
Front side
20817-620 20817-621 20817-612 20817-613 20817-690 20817-691 20817-682 20817-683
04608071
Rear I/O
20817-622 20817-623 20817-614 20817-615
––––
6 U Height
top
Front side
20817-622 20817-623 20817-614 20817-615 20817-692 20817-693 20817-684 20817-685
Rear I/O
20817-620 20817-621 20817-612 20817-613
––––
bottom
Front side
20817-620 20817-621 20817-612 20817-613 20817-690 20817-691 20817-682 20817-683
04608070
Rear I/O
20817-622 20817-623 20817-614 20817-615
––––
Dimensions see page 7.28 7.28
4,07
4,07
6,61
6,61
SCHROFF 3 U Height 6 U Height bottom Egg
SCHROFF PRODUCT CATALOG 05/2018
7.22 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x
|
Main CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL
COMPONENTS INSERTER/EXTRACTOR HANDLE, TYPE IET
Inserter/extractor handle, type IET,
board fixing without offset
Inserter/extractor handle, type IET,
board fixing with 0.1" offset
lever: light grey, RAL 7035 key:
black, RAL 9005
lever: black, RAL 9005 key: light
grey, RAL 7035
lever: light grey, RAL 7035 key:
black, RAL 9005
lever: black, RAL 9005 key: light
grey, RAL 7035
04608054 04608056 04608055 04608057
in accordance with IEEE 1101.10 and IEC 60297-3-102,
with locking,
suitable for insertion and extraction forces up to 700 N (per pair), suitable for fitting
of microswitches;
block die-cast zinc, nickel-plated,
with integrated alignment pin for perforated strip,
codable to IEEE 1101.10 and IEC 60297-3-103,
lever/key UL 94 V-0,
Slotted Pozidrive collar screw, M2.5 x 12.3, St, nickel-plated,
panhead screw with Torx, M2.5 x 7, St, nickel-plated
in accordance with IEEE 1101.10 and IEC 60297-3-102,
with locking,
suitable for insertion and extraction forces up to 700 N (per pair), suitable for fitting
of microswitches;
0.1" offset is used for PSUs with SMD Plus:
block die-cast zinc, nickel plated;
with integrated alignment pin for perforated strip,
codable to IEEE 1101.10 and IEC 60297-3-103,
lever/key UL 94 V-0,
slotted Pozidrive collar screw, M2.5 x 12.3, St, nickel-plated,
panhead screw with Torx, M2.5 x 7, St, nickel-plated
Assembly PU 10 pieces PU 100 pieces PU 10 pieces PU 100 pieces PU 10 pieces PU 100 pieces PU 10 pieces PU 100 pieces
3 U Height
bottom
Front side
20817-660 20817-661 20817-652 20817-653 20817-714 20817-715 20817-706 20817-707
04608073
Rear I/O
20817-662 20817-663 20817-654 20817-655
––––
6 U Height
top
Front side
20817-662 20817-663 20817-654 20817-655 20817-716
20817-717
20817-708 20817-709
Rear I/O
20817-660 20817-661 20817-652 20817-653
––––
bottom
Front side
20817-660 20817-661 20817-652 20817-653 20817-714 20817-715 20817-706 20817-707
04608072
Rear I/O
20817-662 20817-663 20817-654 20817-655
––––
Fixing material
see page 7.23 7.23
Dimensions
see page 7.29 7.29
4,07
4,07
6,61
6,61
2"— ML SCHROFF Fm"! material %@% %@%%a %
7.23
Plug-in units – for CompactPCI, VME64x
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL

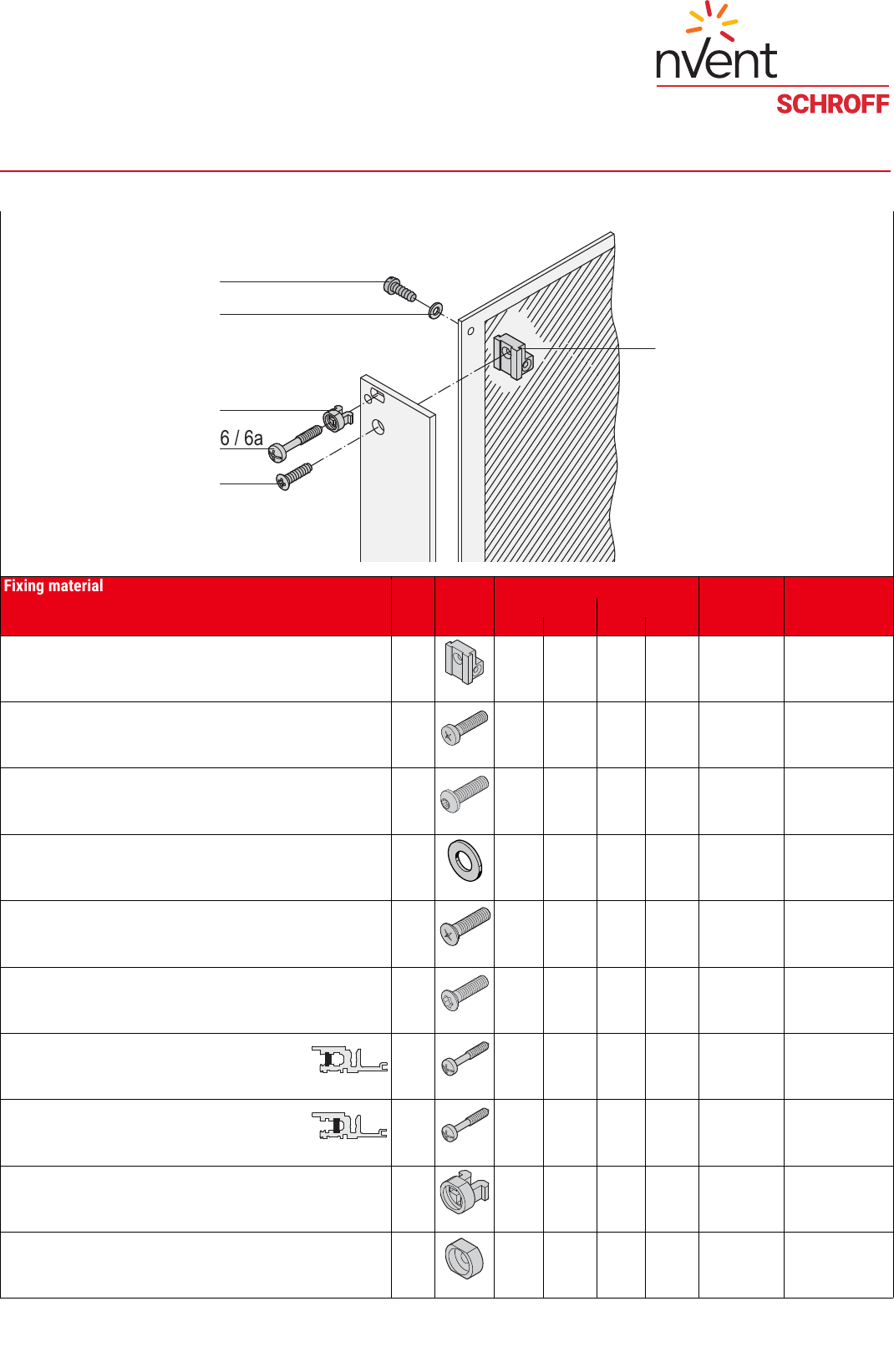

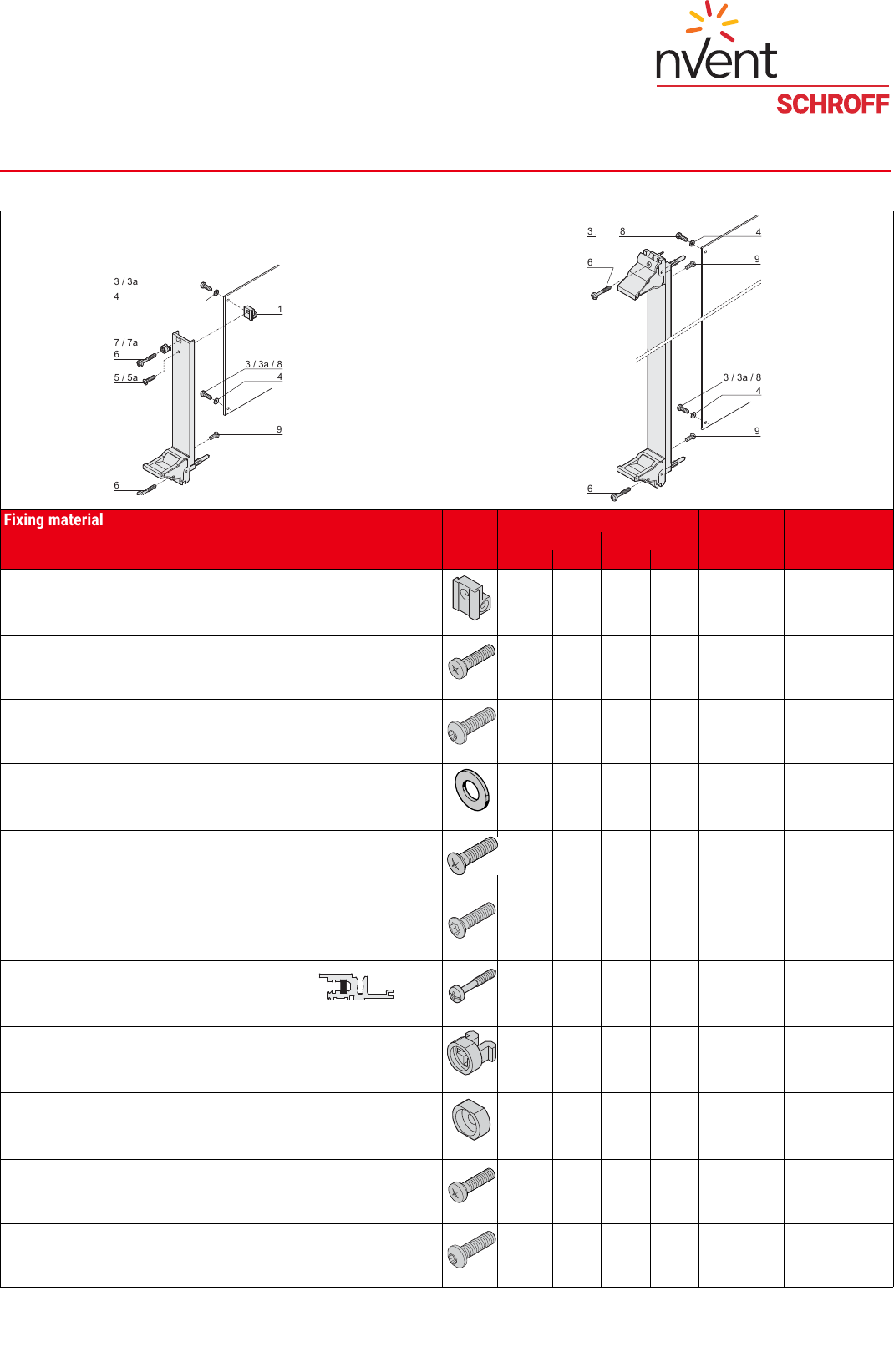

COMPONENTS INSERTER/EXTRACTOR HANDLES, TYPE IEL/IET, FIXING MATERIAL
3U 6U
top
bottom
04609050 04609051
Fixing material Item Required quantity Qty/PU Part no.
3U 3 U 6 U
< 8 HP ≥ 8 HP < 8 HP ≥ 8 HP
Printed board bracket
Zn die-cast
1 1 1 – – 1piece
(SPG 10)1)
60807-181
06707050
Pozidrive panhead screw
M2.5 × 6, St, nickel-plated , not for 0.1" offset 3 2 2 2 2 100
21101-219
AZA45177
Slotted panhead screw with Torx 8
M2.5 × 6, St, zinc-plated, self-securing thread
not for 0.1" offset
3a 2 2 2 2 100
24560-159
aza45940
Washer
2.7, DIN 125, St, nickel-plated
4 2 2 2 2 100
21100-721
AZA46586
Raised Pozidrive countersunk panhead screw
M2.5 × 8, St, nickel-plated 5 1 1 – – 100
21100-429
06702056
Raised countersunk panhead screw with Torx 8
M2.5 × 8, St, nickel-plated 5a 1 1 – – 100
24560-164
06708050
Pozidrive/slotted collar screw
M2.5 × 12.3, St, nickel-plated 6 1 3 – 2 100
21101-101
AZA46586 AZA46586
Plastic sleeve, for form hole 5.9 x 3.3
PA, UL 90 V-2, grey
7 1 3 – 2 100
21100-464
aza45933
Metal sleeve, for form hole 5.9 x 3.3, press-in
Stainless steal
7a 1 3 – 2 100
21100-662
aza45934
Pozidrive panhead screw
for IEL/IET handle with 0.1" offset
M2.5 × 10, nickel-plated steel
8 2 2 2 2 100
21101-220
AZA45177
Torx panhead screw
M2.5 × 7, St, nickel-plated, Torx 8, 9 1 1 2 2 100
24560-147
aza45940
SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
4
3/3a /8
1
5/5a
6
6
7/7a
4
3/3a /8
9
4
4
3/3a /8
6
3/3a /8
6
9
9
\‘ L ’ x W SCHROFF 3 U Height 6 U Height bollom
SCHROFF PRODUCT CATALOG 05/2018
7.24 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x
|
ORDER INFORMATION
INDIVIDUAL
COMPONENTS INSERTER/EXTRACTOR HANDLES, TYPE IEL/IET, ACCESSORIES
Microswitch Keying/coding Label strips Label strips
with cable and plug in accordance with IEC 60297-3-
103
19 x 9.5 mm 19 x 9.5 mm 19 x 4.8 mm
bga46314 bga46315 04612052 04606050 bga46317
Molex connector housing
51021-0300,
Molex crimp contact 50058-8000
and fixing clip (item 3),
plastic, PC, UL 94 V-0, max. switched
current 50 mA, operating range -25 °C to
+70 °C, mech. life
≥20,000 switching cycles,
electr. life ≥
20,000 switching cycles;
suitable mating connectors (item 2) e.g.
Molex 53261-0319,
53048-0310, 53047-0310,
53398-0319, 51047-0300 not included in
scope of delivery
The keying/coding pegs prevent plug-in
units to be mounted in wrong slots. They
are inserted in the chambers of the
codable card guides as well as in the
insertion/extraction handles IEL or IET
(4 possible positions), resulting in 64
codings per card guide;
when coding the upper and lower card
guide, 4096 codings will result;
guide rails for coding see page
6.40
Polyester, self-adhesive,white, 1 sheet
210 pieces (Item 1)
Polyester,
self-adhesive,
white,
1 sheet 210 pieces
(item 1)
Polyester,
self-adhesive,
white,
1 sheet 320 pieces
(item 2)
PU 10 pieces PU 100 pieces PU 210 pieces PU 210 pieces PU 320 pieces
3 U Height
bottom
20817-606 20817-501 60817-340 60817-340 60817-341
6 U Height
top
20817-606 20817-501 60817-340 60817-340 60817-341
bottom
20817-606 20817-501 60817-340 60817-340 60817-341
1
2
1
1
1
2
2"— m/ent SCHROFF -f 4 m 14 \ 1 1 L F
7.25
Plug-in units – for CompactPCI, VME64x
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Text
20.2
d
b
128.4
115.2
115.2
YX
YX
7.45
7.455.08
5.08
d
3
3
3
14.7
14.7
9.99
2.6
ø
2.3
6.03
2.7
8.4
7.7
13.8
3.3
9.99
2.6
ø
2.3
6.03
2.7
8.4
7.7
13.8
3.3
b
b
c
c0.9
0.9
6.2
5
5
6.2
2.5ø
2.5ø
2.5
2.5
ø2.5 ø 2.5
261.75
235.4
235.4
Y
X
20.2
d
b
d
33
YX
9.99
2.6
ø
2.3
6.03
2.7
8.4
7.7
13.8
3.3
9.99
2.6
ø
2.3
6.03
2.7
8.4
7.7
13.8
3.3
b
c0.9
5
6.2
2.5ø
2.5
b
c0.9
6.2
5
2.5ø
2.5

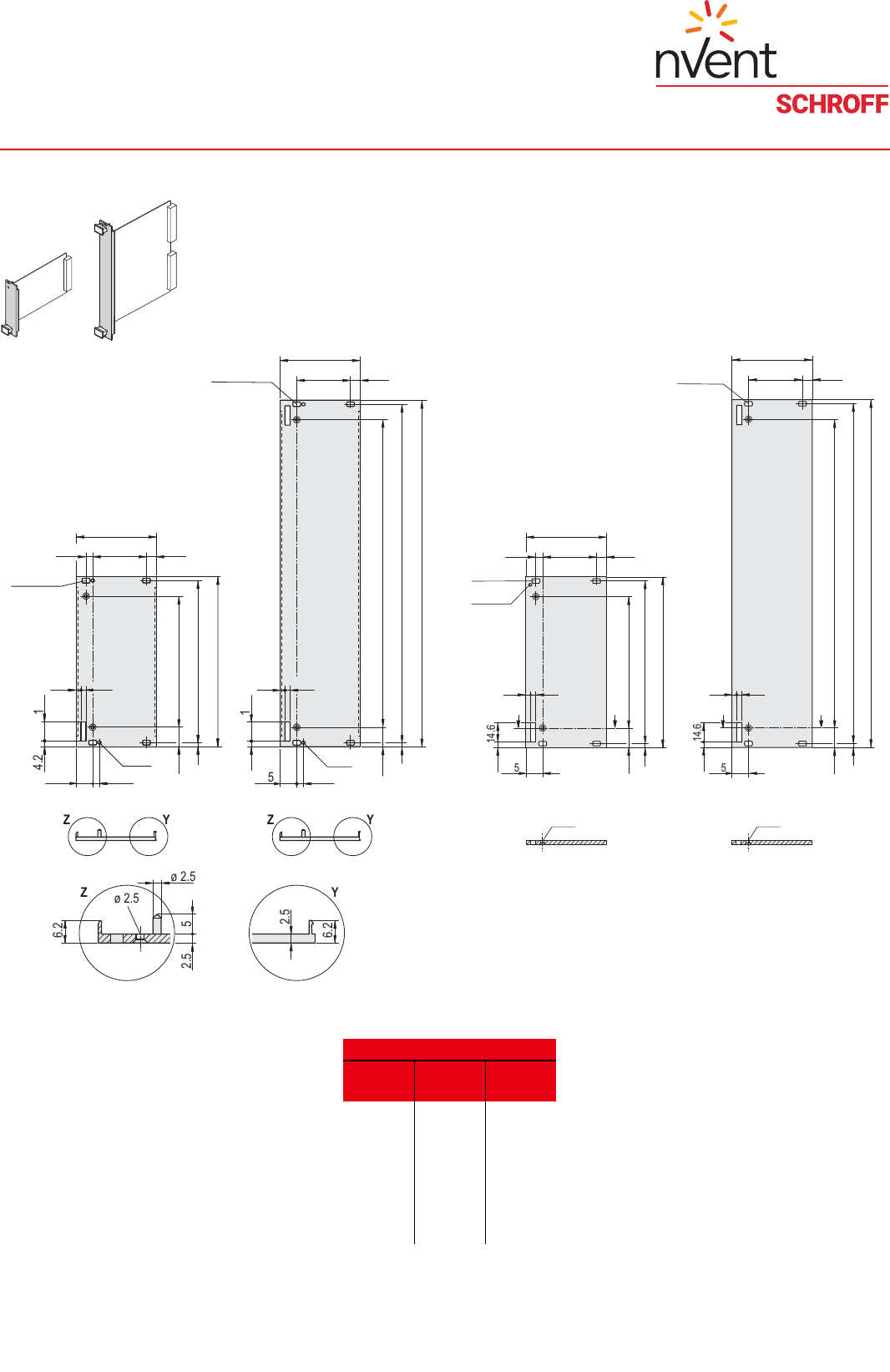

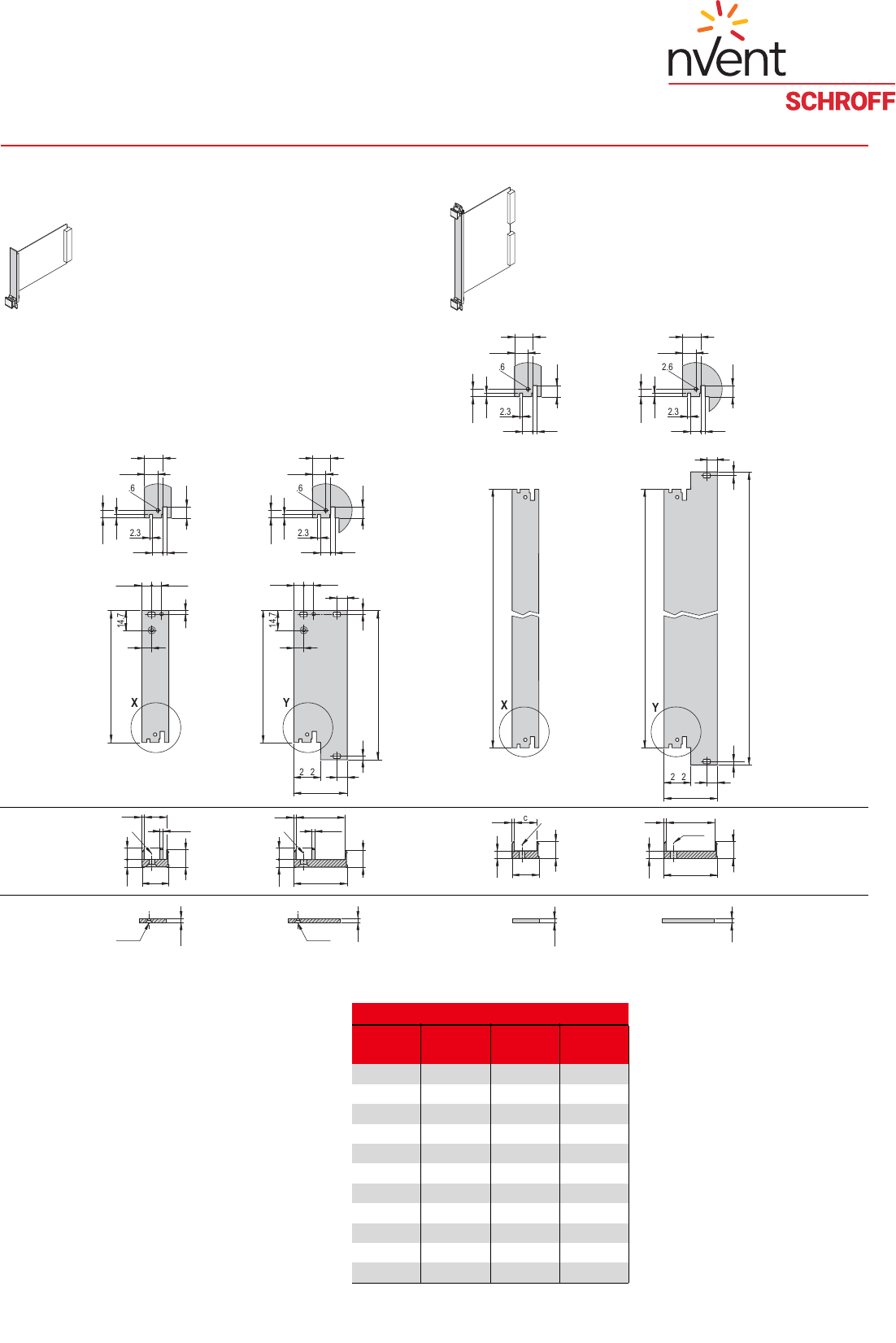

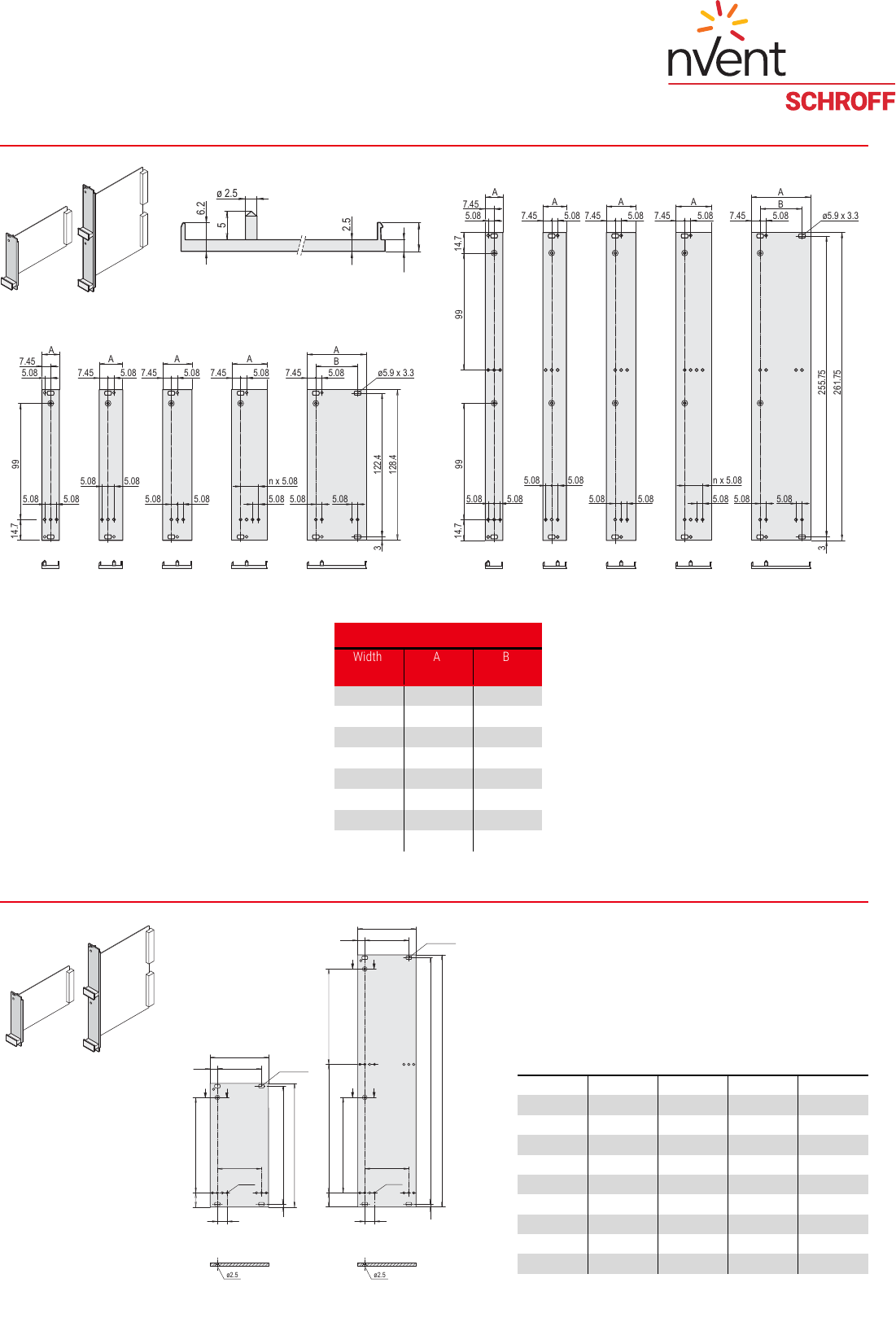

DIMENSIONS FRONT PANELS, U-PROFILES, INSERTER/EXTRACTOR HANDLES, TYPE IEL/IET, REAR I/O, SHIELDABLE
PCB fixing without offset
3 U 6 U
04608068 04608076
04608069 04608075
4 HP ≥5HP 4 HP ≥5HP
Dimensions table
Width b c d
HP mm mm mm
419.98 17.45 –
5 25.06 22.53 –
630.14 27.61 –
7 35.22 32.69 –
840.30 37.77 7.45
9 45.38 42.85 7.45
10 50.46 47.93 7.45
11 55.54 53.01 7.45
12 60.62 58.09 7.45
14 70.78 68.25 7.45
16 80.94 78.41 7.45
SCHROFF s Fa F% ._J fiH‘fi—l‘ :xLL4‘ w WM '1ng mm 1‘ die:
SCHROFF PRODUCT CATALOG 05/2018
7.26 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x
|
Text
Text
20.2d
b
128.4
115.2
115.2
YX
YX
7.45
e
7.45
e
5.085.08
d
3
3
3
14.7
14.7
9.999.99
2.6
ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
b
b
c
c0.9
0.9
6.2
5
5
6.2
2.5ø
2.5ø
2.5
2.5
ø2.5 ø 2.5
YX
9.999.99
2.6
ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
261.75
235.4
235.4
Y
X
20.2d
b
d
33
b
b
cc 0.90.9
6.2
6.2
2.5ø
2.5
2.5
ø2.5
DIMENSIONS FRONT PANELS, U-PROFILES, INSERTER/EXTRACTOR HANDLES, TYPE IEL, IET, SHIELDABLE
PCB fixing without offset / with 0.1" offset
3 U 6 U
04608067 04608066
04608064 04608065
4 HP ≥5HP 4 HP ≥5HP
YX
9.999.99
2.6ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
261.75
235.4
235.4
Y
X
20.2d
b
d
33
Dimensions table
without offset with 0.1" offset
Width b c d ee
HP mm mm mm mm mm
419.98 17.45 –7.45 9.99
5 25.06 22.53 – 7.45 9.99
630.14 27.61 –7.45 9.99
7 35.22 32.69 – 7.45 9.99
840.30 37.77 7.45 7.45 9.99
9 45.38 42.85 7.45 7.45 9.99
10 50.46 47.93 7.45 7.45 9.99
11 55.54 53.01 7.45 7.45 9.99
12 60.62 58.09 7.45 7.45 9.99
14 70.78 68.25 7.45 7.45 9.99
16 80.94 78.41 7.45 7.45 9.99
2"— m/ent SCHROFF
7.27
Plug-in units – for CompactPCI, VME64x
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Text
20.2d
b
128.4
115.2
115.2
YX
YX
7.45
7.45d
3
3
3
14.7
14.7
9.999.99
2.6
ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
ø2.5
2.5
ø2.5
2.5
2.5
2.5
YX
9.999.99
2.6
ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
261.75
235.4
235.4
Y
X
20.2d
b
d
33

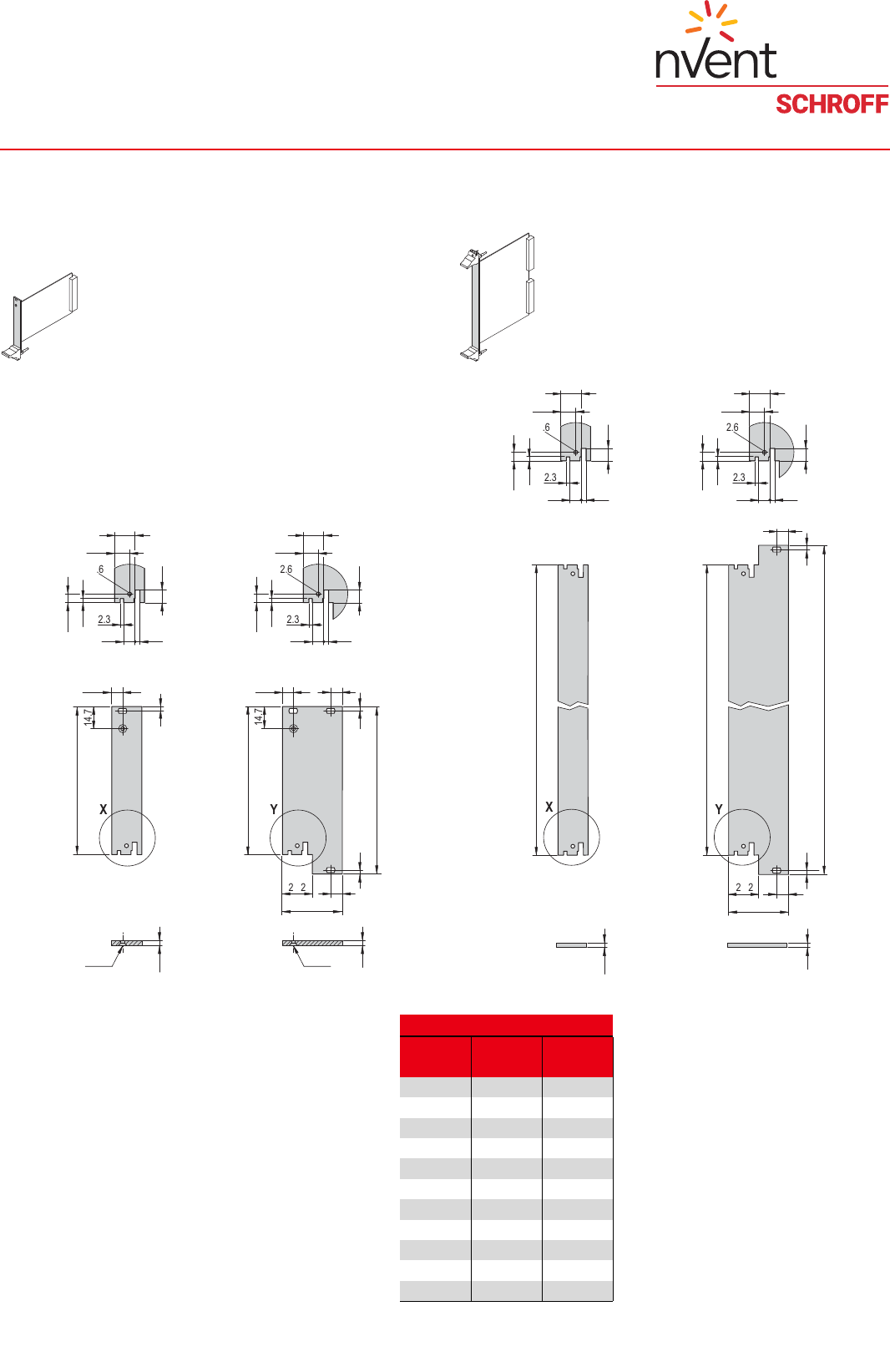

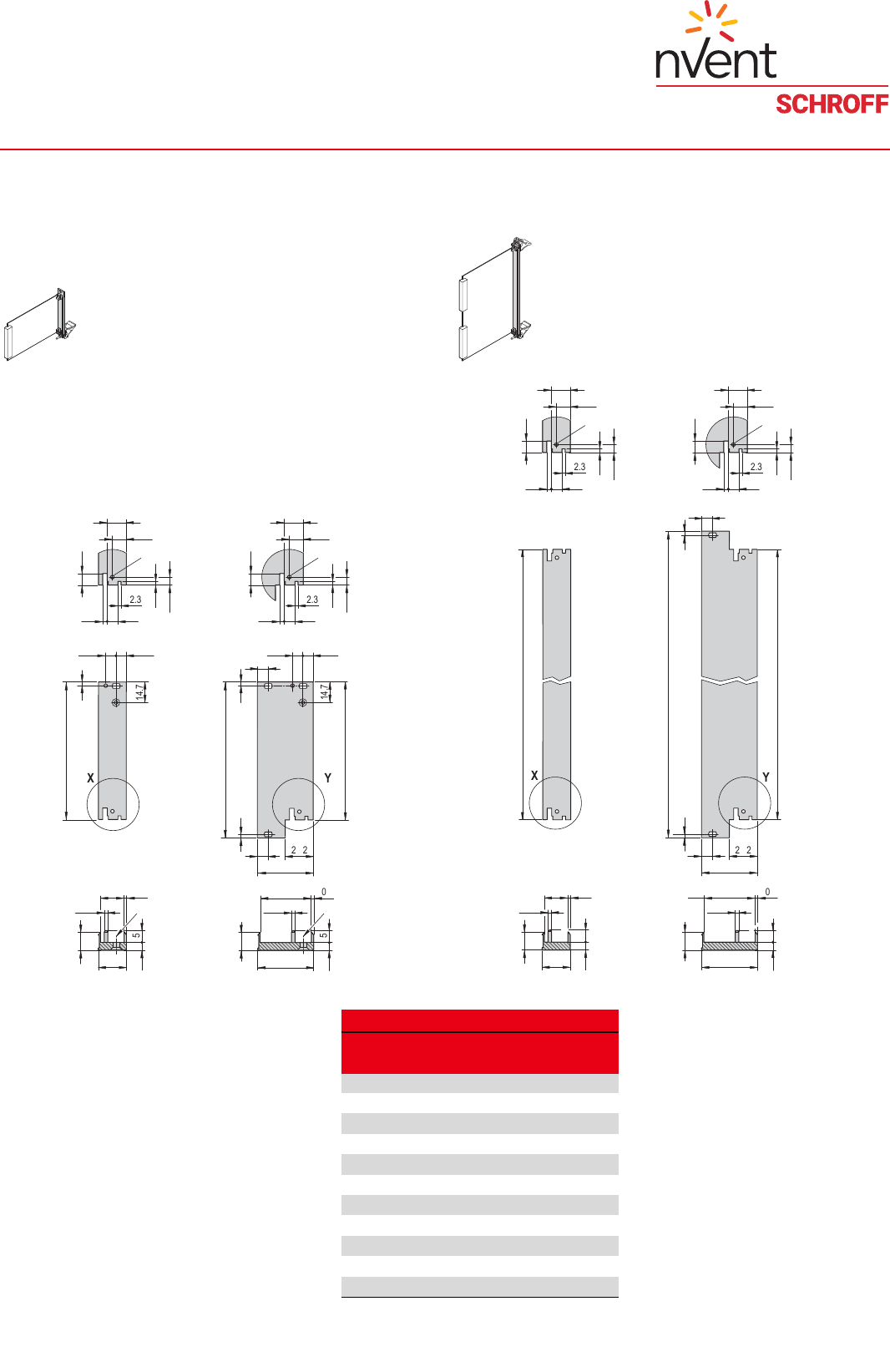

DIMENSIONS FRONT PANELS, INSERTER/EXTRACTOR HANDLES, TYPE IEL/IET, UNSHIELDED
PCB fixing without offset
3 U 6 U
04608080 04608079
04608077 04608078
4 HP ≥5HP 4 HP ≥5HP
Dimensions table
Width b d
HP mm mm
419.98 –
5 25.06 –
630.14 –
7 35.22 –
840.30 7.45
9 45.38 7.45
10 50.46 7.45
11 55.54 7.45
12 60.62 7.45
14 70.78 7.45
16 80.94 7.45
L nt 2‘ e n\/ SCHROFF
SCHROFF PRODUCT CATALOG 05/2018
7.28 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x
|
Text
Text

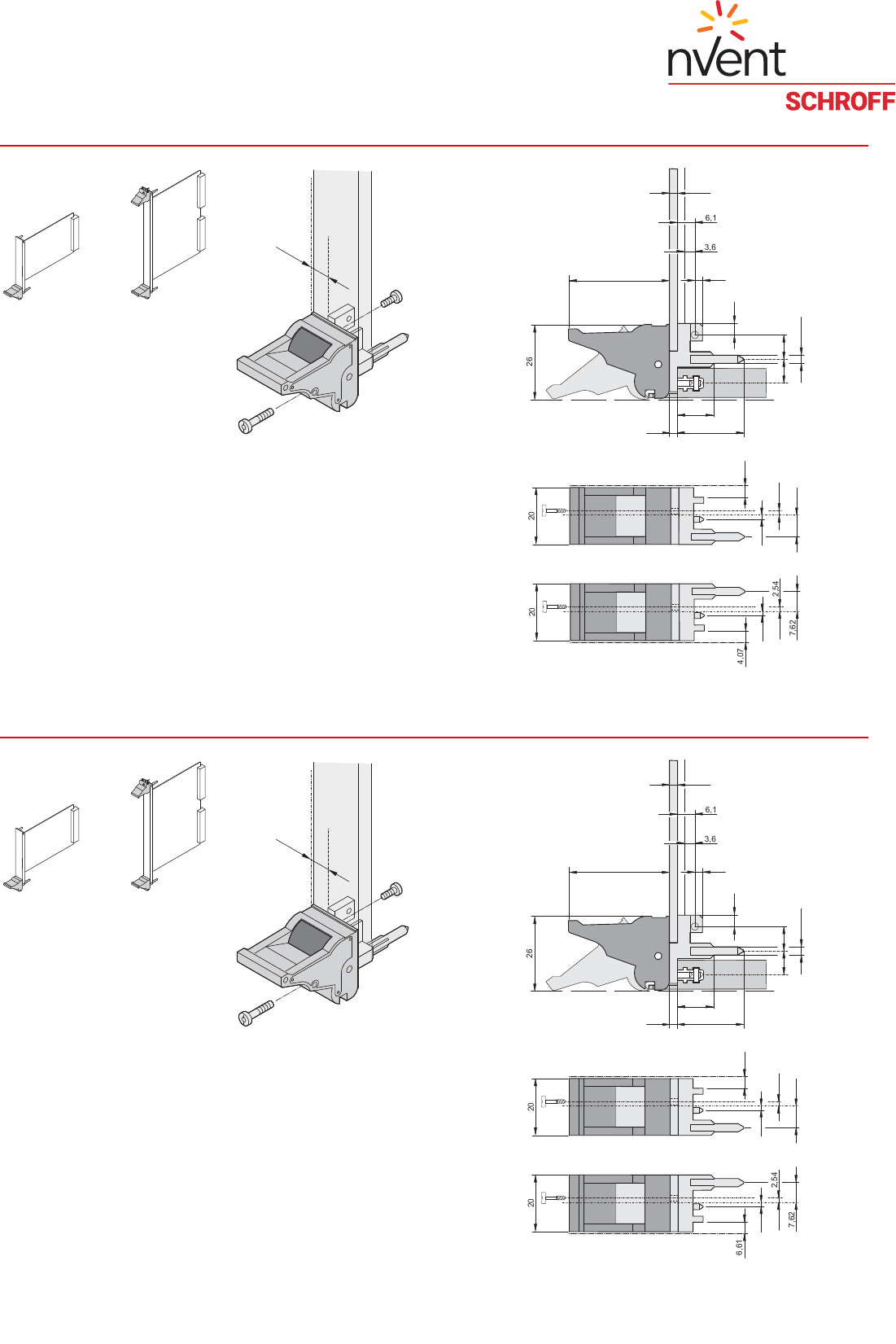

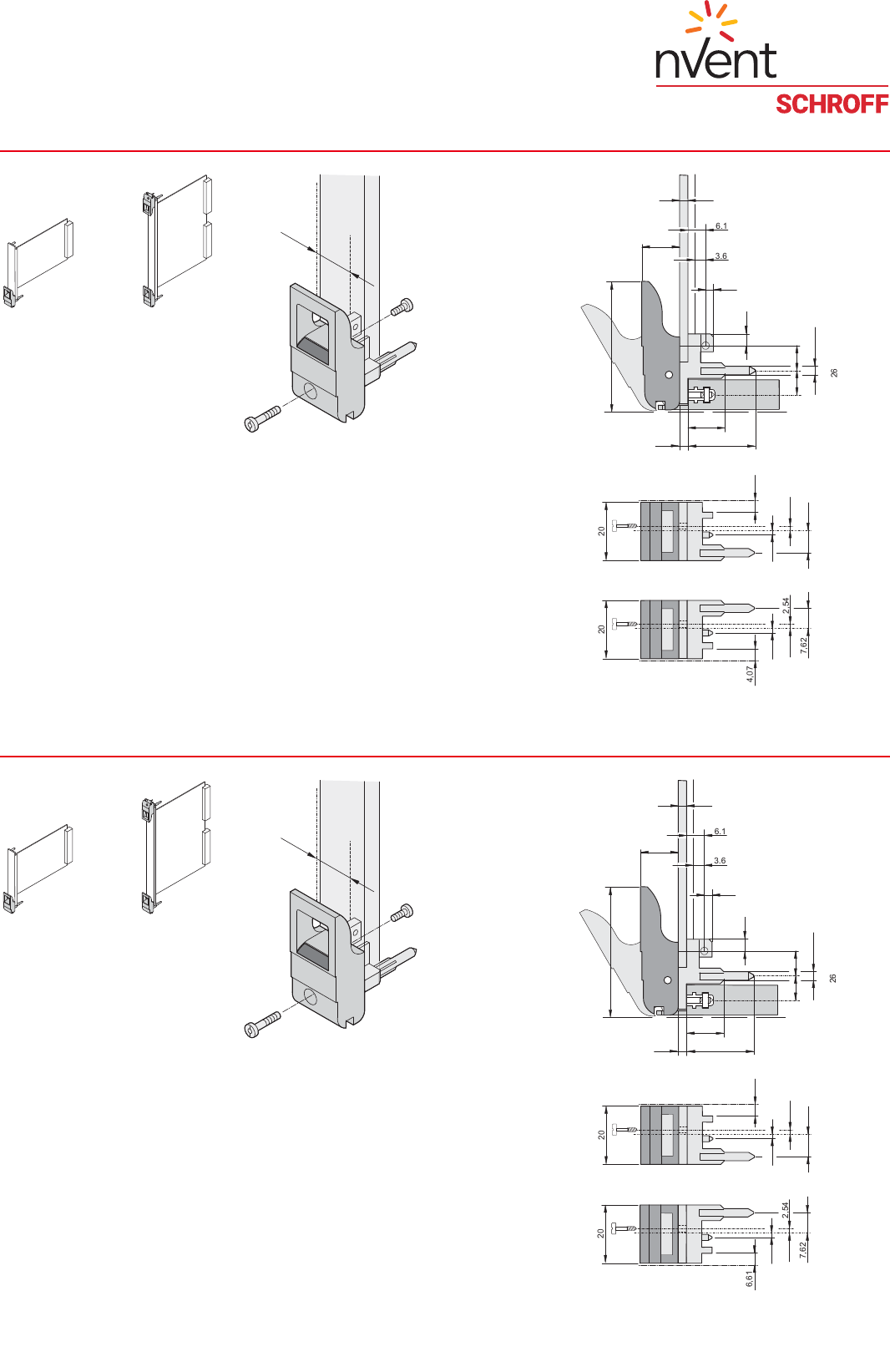

DIMENSIONS INSERTER/EXTRACTOR HANDLE, TYPE IEL
04608071 04608070
04608050 04603059
bottom
04607053
top
04607054
4,07
3,8
8,55
8,15
Ø2,95
26
35
22,75
12,75
2,5
2,5
6,1
3,6
2,5
4,07
2,54
2,54
7,62
20
4,07
2,54
2,54
7,62
20
DIMENSIONS INSERTER/EXTRACTOR HANDLE, TYPE IEL, 0.1" OFFSET
04608071 04608070
04608051 04603059
bottom
04603061
top
04607055
6,61
3,8
8,55
8,15
Ø2,95
26
35
22,75
12,75
2,5
2,5
6,1
3,6
2,5
6,61
2,54
2,54
7,62
20
6,61
2,54
2,54
7,62
20
nVént SCHROFF
7.29
Plug-in units – for CompactPCI, VME64x
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Text
DIMENSIONS INSERTER/EXTRACTOR HANDLE, TYPE IET
04608073 04608072
04608054 04603060
bottom
04607056
top
04607057
4,07
45
14
22.75
12.75
2.5
2.5
6.1
3.6
2.5
3,8
8,55
8,15
Ø2,95
26
4,07
2,54
2,54
7,62
20
20
4,07
2,54
2,54
7,62
DIMENSIONS INSERTER/EXTRACTOR HANDLE, TYPE IET, 0.1" OFFSET
04608073 04608072
04608055 04603060
bottom
04603062
top
04607058
6,61
45
14
22.75
12.75
2.5
2.5
6.1
3.6
2.5
3,8
8,55
8,15
Ø2,95
26
6,61
2,54
2,54
7,62
20
20
6,61
2,54
2,54
7,62
2"— m/ent SCHROFF
SCHROFF PRODUCT CATALOG 05/2018
7.30 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x,
|
for CompactPCI, VME64x, VXS, VPXPart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days
•Suitable for insertion and extraction forces up to 1500 N (per pair)
•To IEEE 1101.10 and IEC 60297-3-102
•Codable to IEC 60297-3-103/ IEEE 1101.10
•Front panel, shielded (6 U)
•Versions allowing microswitches to be fitted on request
•Online download of 3D CAD data
DELIVERY INCLUDES (Kit)
ORDER INFORMATION
•Dimension drawing of front profile, see page 7.32

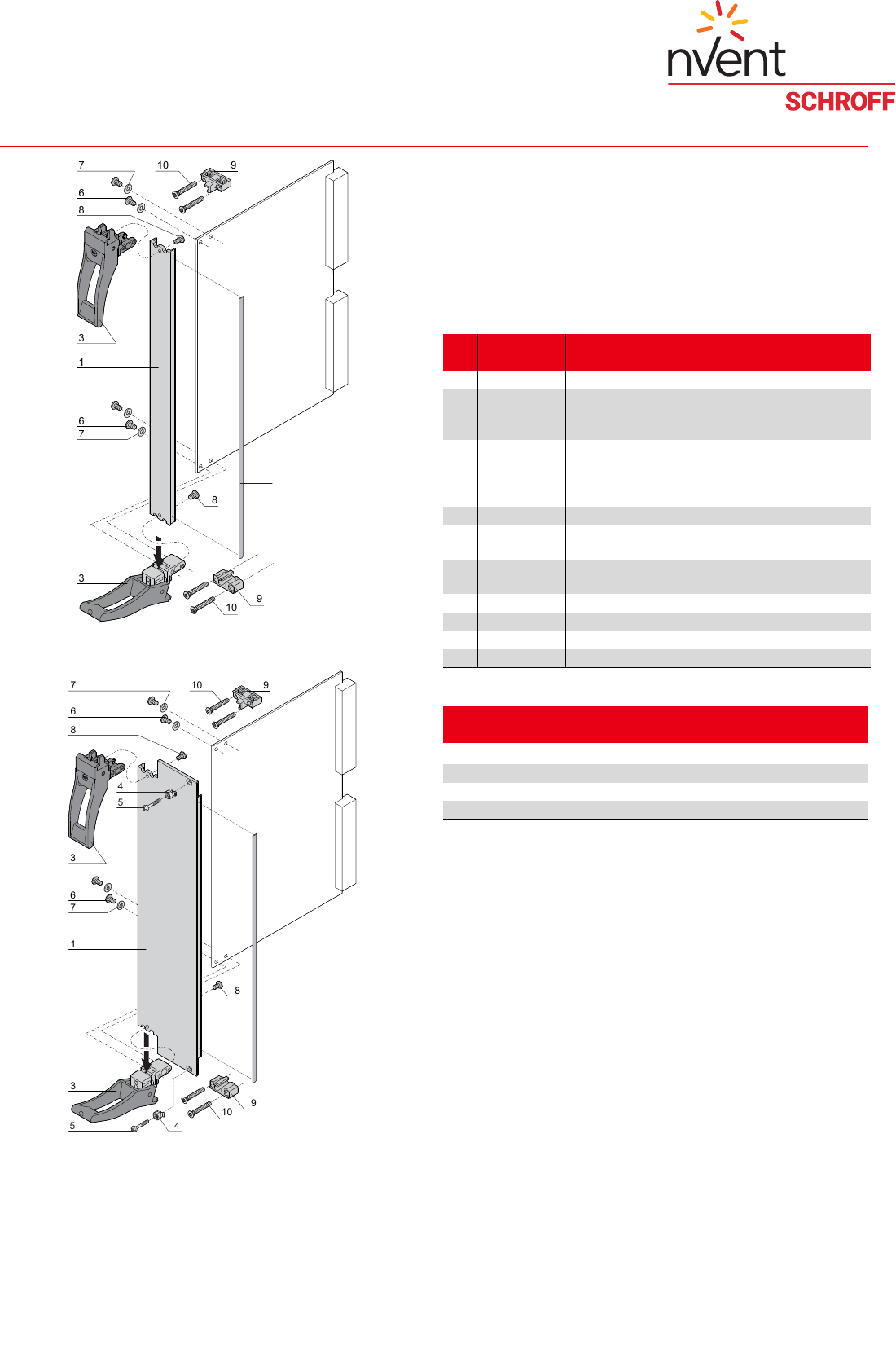

PLUG-IN UNITS WITH XL INSERTION/EXTRACTOR HANDLE FOR COMPACTPCI, VME64X, VXS AND VPX APPLICATIONS
04613055
< 8 HP
04613056
≥8HP
6
1
3
6
8
7
7109
9
10
3
2
8
6
1
3
6
8
7
710 9
9
10
4
5
4
5
3
2
8
Item Qty Description
<8 HP ≥8 HP
1 1 1 Front panel (U profile), AI, front anodized, rear conductive
2 1 1 EMC sealing (textile),
core: foam,
sleeve: textile cladding, CuNi coated
3 2 2 Handle with integrated alignment pin for perforated strips
and guide rails,
lever: plastic, PC, black, RAL 9005
Key: Plastic, PC, light gray, RAL 7035
4 - 2 Sleeve, PA, gray
5 - 2 Pozidrive collar screw, M2.5 × 12.3, St,
nickel-plated
6 4 4 Panhead screw with Torx/slot, M2.5 × 6, St,
zinc-plated, self-locking
7 4 4 Washer A2.7, DIN 125, St, nickel-plated
8 4 4 Pan head screw with torx M2.5 × 7, St, zinc-plated
9 1 1 XL bearing, zinc diecast, nickel-plated
10 4 4 Countersunk screw with torx M2.5 × 17, St, zinc-plated
Width Part no.
HP
6 U Height
4
20848-769
8
20848-770
12
20848-771
2"— m/ent SCHROFF 6 U Height
7.31
Plug-in units – for CompactPCI, VME64x,
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
for CompactPCI, VME64x, VXS, VPX
NOTE
•Please order front panels separately
INDIVIDUAL
COMPONENTS INSERTER/EXTRACTOR HANDLE, TYPE XL, FRONT PANELS, MICROSWITCH
Inserter/extractor handle, type
XL
U front profile, shieldable, for
inserter/extractor handle, type XL
EMC gasket (textile) Microswitch
item 1
without
cut-out for
microswitch
with
cut-out for
microswitch
with cable and plug
04605008 04608081 04608082 04608083 BGA45760 04608084 bga46315
kit, incl. die-cast bearing and
assembly kit;
insertion and extraction force up to
1500 Nm per pair;
handle in PA, fibreglass reinforced,
UL 94V 0;
robust board fixing with double bolt
fixing, microswitches can be fitted
Al,
front anodised,
sides and rear
conductive,
for sleeve and
collar screw
see page
7.37
Al,
front anodised,
sides and rear
conductive
for sleeve and
collar screw
see page
7.37
always fixed laterally on the front
panel, in the groove of the profile,
textile gasket,
core: foam,
sleeve: textile cladding with
CuNi coating,
UL 94 V-0
Molex connector housing
51021-0300,
Molex crimp contact 50058-8000
and fixing clip (item 3), plastic,
PC, UL 94 V-0,
max. switched current 50 mA,
operating range -25 °C to +70 °C,
mech. life
≥20,000 switching cycles,
electr. life
≥20,000 switching cycles;
suitable mating connector
(item 2) e.g. Molex 53261-0319,
53048-0310, 53047-0310, 53398-
0319, 51047-0300,
not included in scope of delivery
Width PU 10 pieces 1 piece (SPQ 5)1) 1 piece (SPQ 5)1) PU 10 pieces PU 100 pieces PU 10 pieces
HP
6 U Height
4
20817-874
30849-153 30849-154
21101-855 21101-856 20817-877
8
30849-155
30849-156
12
30849-157 30849-158
Dimensions see page 7.30 7.30 7.30
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
4,07
2,5
4,07
2,5
1
3
2
SCHROFF Vials ; 3 W 9 ‘9‘ m w W
SCHROFF PRODUCT CATALOG 05/2018
7.32 nVent.com/SCHROFF
Plug-in units – for CompactPCI, VME64x,
|
Text
Text
30
7,75
9
11,7
19,8
15
3,2
180
230,85
14,214,2
32,85
40,3
261,75
3
3
15,45
15,45
30
7,75
9
11,7
20,5
19,8
15
3,2
180
14,214,2
53,17
60,62
261,75
3
3
15,45
15,45
30
7,75
9
11,7
20,5
19,8
15
3,2
180

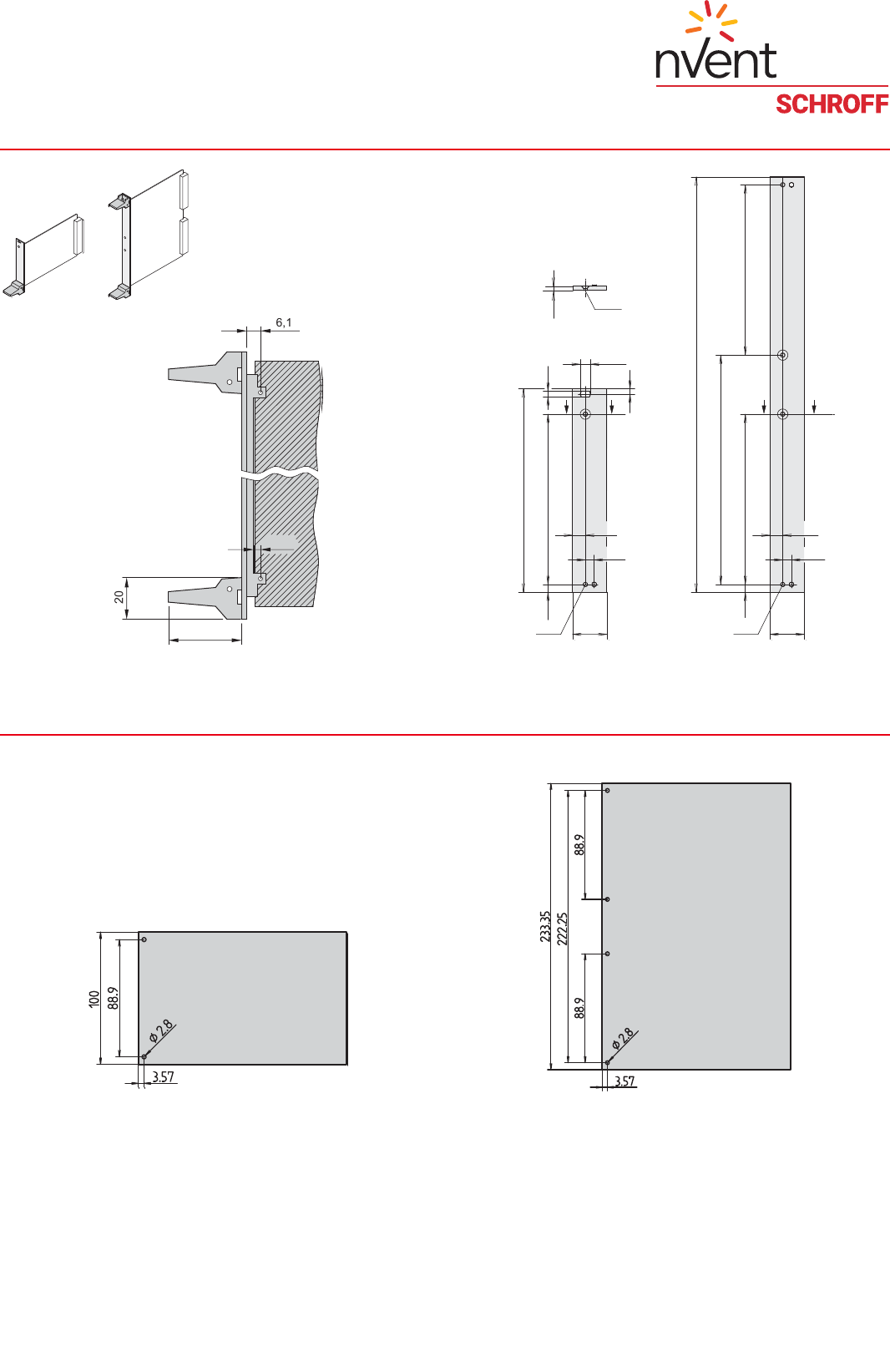

DIMENSIONS U FRONT PROFILE FOR EXTRACTOR HANDLE TYPE XL, SHIELDABLE
6 U/4 HP 6 U/8 HP 6 U/12 HP
04605053 04605054 04605055
DIMENSIONS INSERTER/EXTRACTOR HANDLE, TYPE XL
04608113
10
3,6
5,6
2"— m/ent SCHROFF
7.33
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
3 U
04604050
6 U
04604051
for VMEMain Catalogue
•Shielded
DELIVERY COMPRISES (kit)
ORDER INFORMATION
•Dimension drawings of front profile see page 7.38
•Description of microswitch see page 7.31

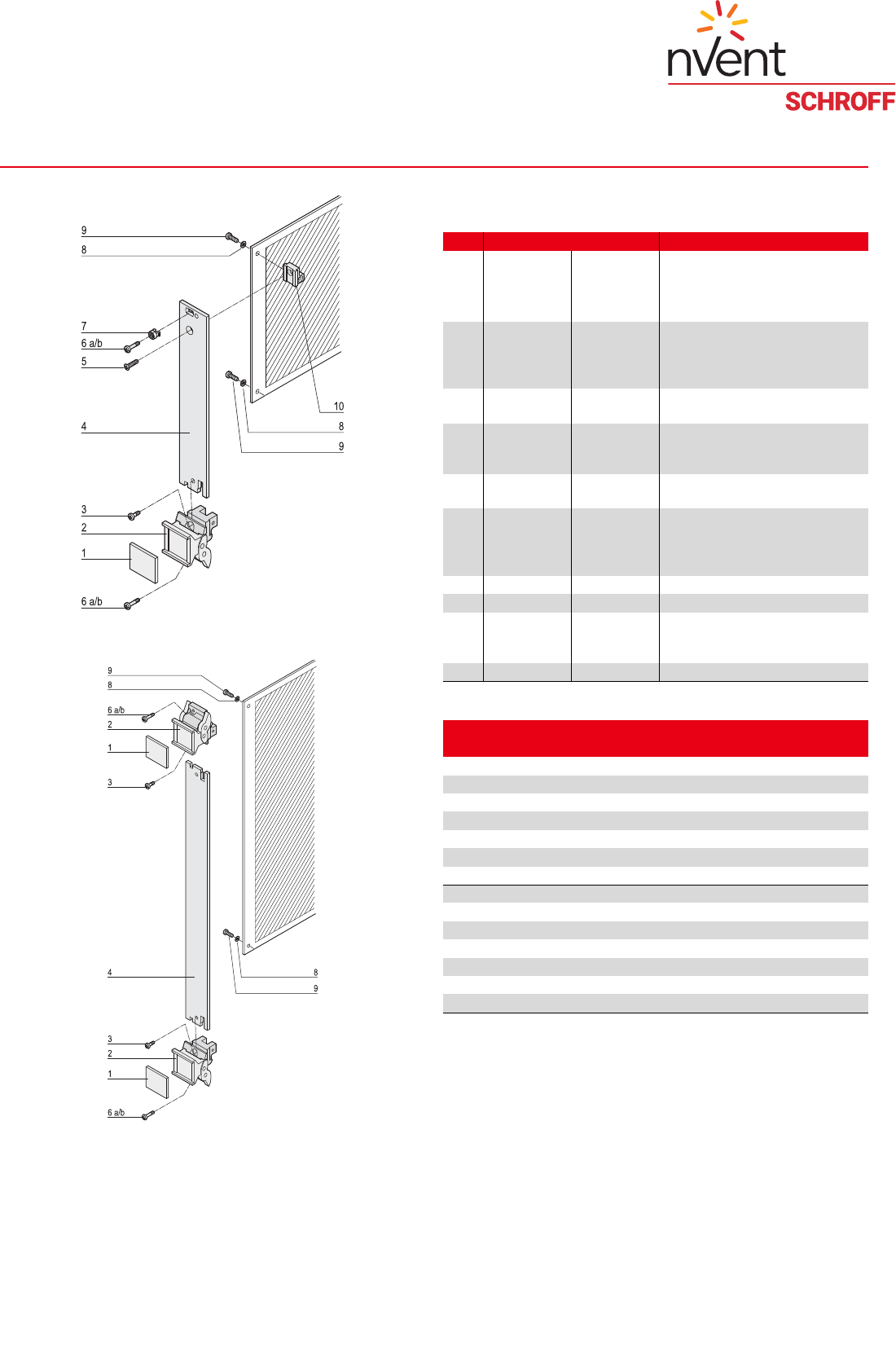

KITS PLUG-IN UNITS WITH TRAPEZIFORM EXTRACTOR
HANDLE, TYPE 2
Item Qty Description
3 U 6 U
<8HP ≥8HP <8HP ≥8HP
1 1 1 2 2 Identification plate, Al, 1.5 mm,
anodised, cut edges untreated
2 1 1 2 2 Extractor handle, trapeziform,
type 2, lever: PPE, light grey,
RAL 7035, block die-cast zinc,
nickel-plated, with integrated
alignment pin for perforated strip
31122Pozidrive flathead screw, St,
M2.5 x 6, nickel-plated
4 1 1 1 1 Front panel, U profile, AI,
front anodised, rear conductive
5 1 1 – – Raised Pozidrive countersunk
screw M2.5 × 8, St, nickel-plated
6a
6b
2
2
4
4
2
2
4
4
Pozidrive collar screw,
M2.5 × 12.3, St, nickel-plated,
collar screw, Pozidrive/slot,
M2.5 × 11, St, nickel-plated,
7 1 3 – 2 Sleeve, PA, grey
8 2 2 2 2 Washer A 2.7, DIN 125
92222Panhead screw with Torx/slot,
M2.5 x 6, St, zinc-plated,
self-locking
10 1 1 – – Board support, die-cast zinc
11 1 1 1 1 EMC sealing (textile), core: foam,
sleeve: textile cladding,
Cu-Ni coated
Height Width Part no.
UHP
34
20848-686
3 6
20848-687
38
20848-688
310
20848-689
312
20848-690
6 4
20848-691
66
20848-692
6 8
20848-693
610
20848-694
612
20848-695
SCHROFF N] s? fi
SCHROFF PRODUCT CATALOG 05/2018
7.34 nVent.com/SCHROFF
Plug-in units – for VME
|
Main Catalogue
•Unshielded
DELIVERY COMPRISES (kit)
ORDER INFORMATION
•Dimension drawing of front profile see page 7.38
•Description of microswitch see page 7.31
KITS PLUG-IN UNITS WITH TRAPEZIFORM EXTRACTOR
HANDLE, TYPE 2
3 U
04604052
6 U
04604053
Item Qty Description
3 U 6 U
<8HP ≥8HP <8HP 8 HP
1 1 1 2 2 Identification plate, Al, 1.5 mm,
anodised, cut edges plain
2 1 1 2 2 Extractor handle, trapeziform,
type 2, lever: PPE, light grey,
RAL 7035, block: die-cast zinc,
nickel-plated
31122Flathead screw M2.5x6,
nickel-plated
4 1 1 1 1 Front panel, Al, 2.5 mm,
front: anodised,
rear: irisdescent green chromated
5 1 1 – – Raised Pozidrive countersunk
screw, M2.5 × 8, St, nickel-plated
6a
6b
2
2
4
4
2
2
4
4
Slotted Pozidrive collar screw,
M2.5 x 12.3, St, nickel-plated,
slotted Pozidrive collar screw,
M2.5 x 11, St, nickel-plated
7 1 3 – 2 Sleeve, PA, grey
8 2 2 2 2 Washer A 2.7, DIN 125
92222Slotted Torx panhead screw,
M2.5 x 6, St, zinc-plated,
self-locking
10 1 1 – – Board support, die-cast zinc
Height Width Part no.
UHP
34
20817-860
3 5
20817-861
36
20817-862
3 7
20817-863
38
20817-864
310
20817-865
312
20817-866
6 4
20817-867
65
20817-868
6 6
20817-869
67
20817-870
6 8
20817-871
610
20817-872
612
20817-873
FFFFFFF
7.35
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Main Catalogue
ORDER INFORMATION
INDIVIDUAL
COMPONENTS U FRONT PROFILES/FRONT PANELS FOR TRAPEZIFORM EXTRACTOR HANDLE, TYPE 2
Front panel, U profile,
shieldable
Textile EMC gasket Front panel, flat, unshielded
04608060 BGA45760 04608063
Al extrusion, 2.5 mm,
front anodised, rear conductive;
alignment pin pressed-in (3 U only),
stainless steel; manufacturing
process causes various surface
structures to appear
between 4 to 12 HP and
14 to 16 HP
always fixed laterally on the front panel, in the groove of the profile,
textile gasket, core: foam,
sleeve: textile cladding with CuNi coating, UL 94 V-0,
temperature range -40 ... 70 °C
Front panel, Al, 2.5 mm,
front anodised, rear irisdescent
green chromated
Width 1 piece (SPQ 5)1) PU 10 pieces PU 100 pieces 1piece (SPQ 5)
1)
HP
3 U Height
4
30848-312
21101-853 21101-854
30848-327
5
30848-300 30848-328
6
30848-313 30848-329
7
30848-301 30848-330
8
30848-314 30848-331
10
30848-315 30848-333
04608109 12
30848-316 30848-335
6 U Height
4
30848-317
21101-855 21101-856
30848-336
5
30848-304 30848-337
6
30848-318 30848-338
7
30848-305 30848-339
8
30848-319 30848-340
10
30848-320 30848-342
04608107 12
30848-321 30848-344
Dimensions see page 7.38 7.36
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
4,07
4,07
SCHROFF W 3 u Height P] s u Height (fr/H bouom
SCHROFF PRODUCT CATALOG 05/2018
7.36 nVent.com/SCHROFF
Plug-in units – for VME
|
ORDER INFORMATION
INDIVIDUAL

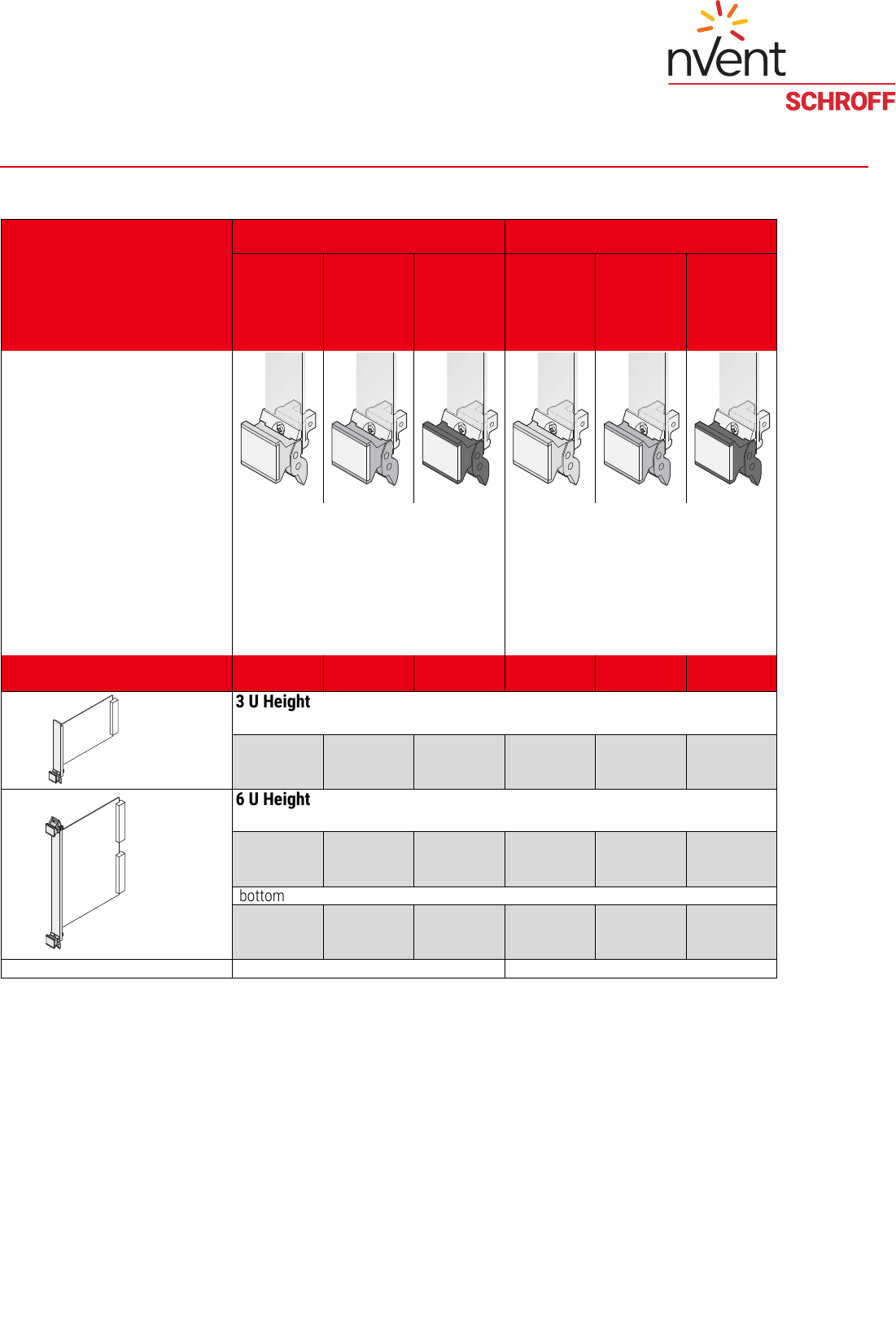

COMPONENTS EXTRACTOR HANDLE, TRAPEZIFORM, TYPE 2
Trapeziform extractor handle, type 2
without alignment pin
Trapeziform extractor handle, type 2
with alignment pin
lever,
light grey, RAL
7035
lever,
dark grey,
RAL 7032
lever,
black,
RAL 9005
lever,
light grey,
RAL 7035
lever,
dark grey,
RAL 7032
lever,
black,
RAL 9005
04608085 BGA45760 04608087 BGA45760 04608086 04608087
Extractor handle, PPE; block, die-cast zinc,
zinc-plated; identification plate, Al, 1.5 mm,
anodised, cut edges plain;
Pozidrive flat-head screw, M2.5 x 6, nickel-plated;
slotted Pozidrive collar screw, M2.5 x 12.3, St,
nickel-plated;
slotted Pozidrive collar screw, M2.5 × 11, St,
nickel-plated,
Extractor handle, PPE; block, die-cast zinc,
zinc-plated; Identification plate, Al, 1.5 mm,
anodised, cut edges plain;
Pozidrive flat-head screw, M2.5 x 6, nickel-plated; slotted
Pozidrive collar screw, M2.5 x 12.3, St,
nickel-plated;
slotted Pozidrive collar screw, M2.5 × 11, St,
nickel-plated,
Width 1 piece (SPQ 10)1) 1 piece (SPQ 10)1) 1 piece (SPQ 10)1) 1 piece (SPQ 10)1) 1piece (SPQ10)
1) 1 piece (SPQ 10)1)
HP
3 U Height
bottom
20817-858 20817-854 20817-856 20817-833
20817-829
20817-831
04608114
6 U Height
top
20817-858 20817-854 20817-856 20817-833
20817-829
20817-831
bottom
20817-858 20817-854 20817-856 20817-833
20817-829
20817-831
04608115
Dimensions see page 7.39 7.39
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
2"— m/ent SCHROFF Fixing material %@ @@%%%%@W
7.37
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL

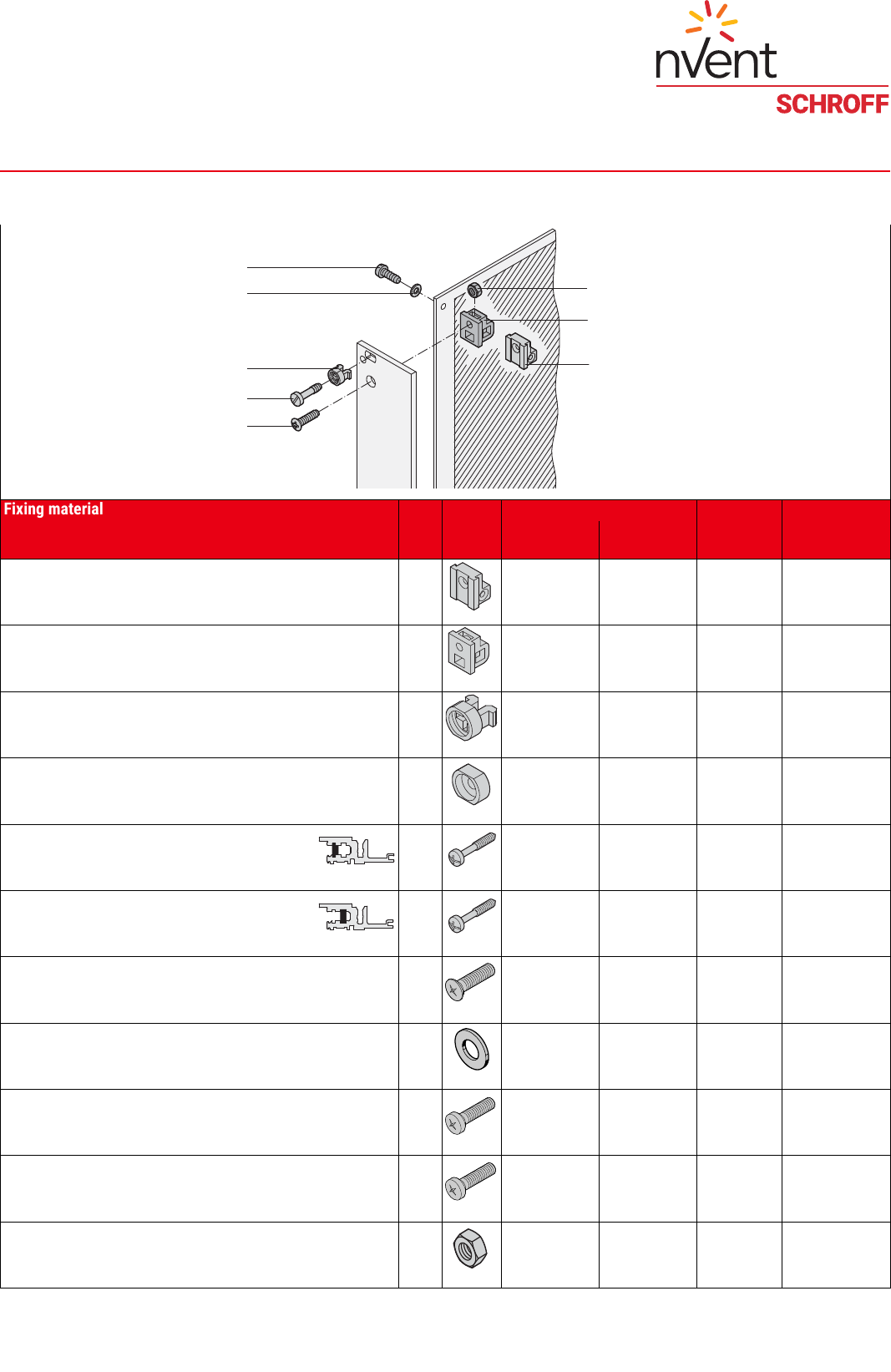

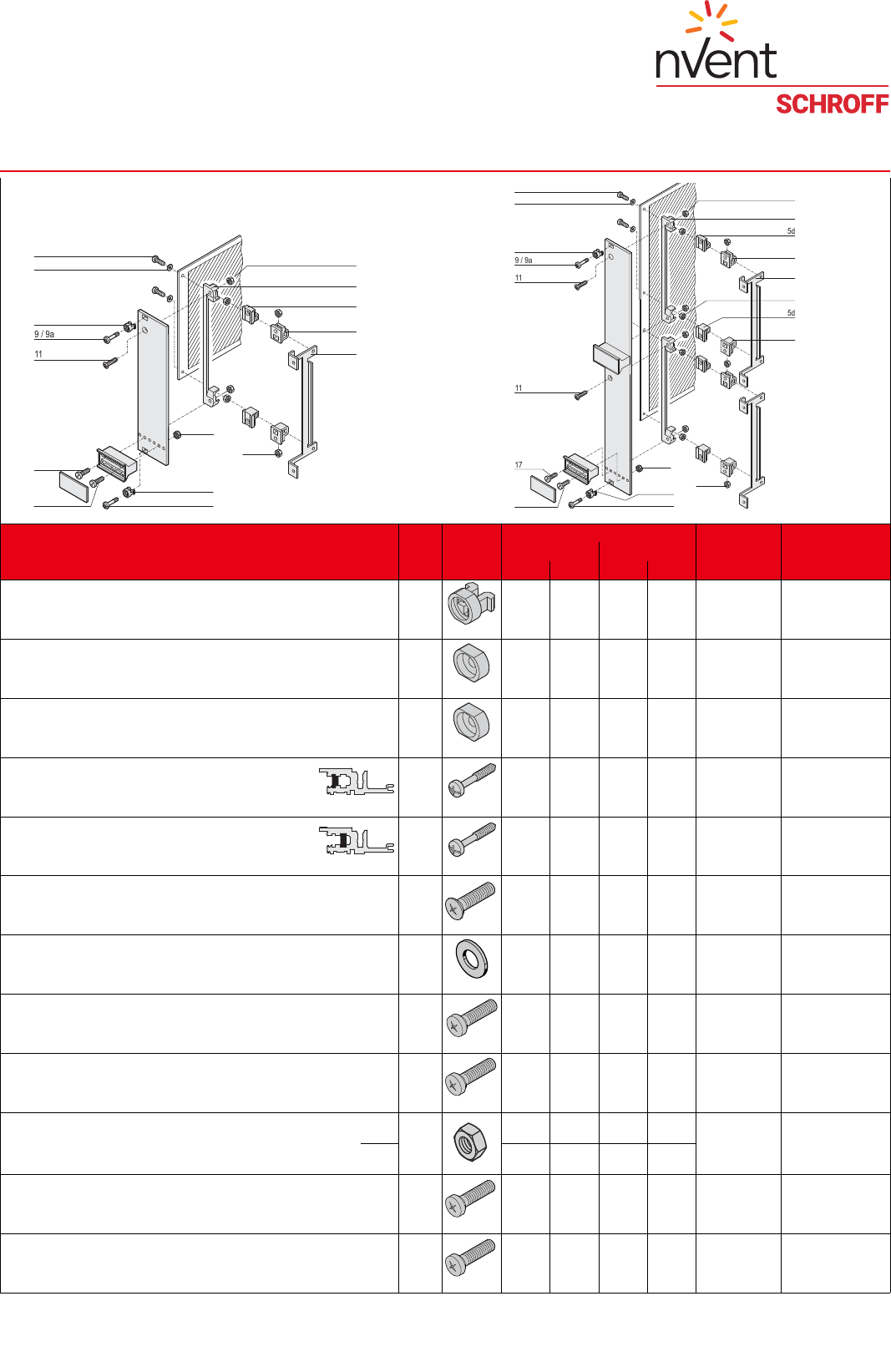

COMPONENTS FIXING MATERIAL FOR TRAPEZIFORM EXTRACTOR HANDLE, TYPE 2
bga46045
Fixing material Item Required quantity Qty/PU Part no.
3 U 6 U
< 8 HP ≥ 8 HP < 8 HP ≥ 8 HP
Printed board bracket
Zn die-cast
1 1 1 – – 1Stück
(LLG 10)1)
60807-181
06707050
Pozidrive panhead screw
M2.5 × 6, St, nickel-plated
3 2222100
21101-219
AZA45177
Slotted panhead screw with Torx 8
M2.5 × 6, St, zinc-plated
Self-securing thread
3a 2222100
24560-159
aza45940
Washer
2.7, St, nickel-plated
4 2222100
21100-721
AZA46586
Raised Pozidrive countersunk panhead screw
M2.5 × 8, St, nickel-plated
5 1 1 – – 100
21100-429
06702056
Raised countersunk panhead screw with Torx 8
M2.5 × 8, St, nickel-plated
5a 1 1 – – 100
24560-164
06708050
Slotted Pozidrive collar screw
M2.5 × 11, St, nickel-plated 6 1 3 – 2 100
21100-748
AZA46586 AZA46586
Slotted Pozidrive collar screw
M2.5 × 12.3, St, nickel-plated 6a 1 3 – 2 100
21101-101
AZA46586 AZA46586
Plastic sleeve, for form hole 5.9 x 3.3
PA, UL 90 V-2, grey
7 1 3 – 2 100
21100-464
aza45933
Metal sleeve, for form hole 5.9 x 3.3, press-in
Stainless steal
7a 1 3 – 2 100
21100-662
aza45934
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
7/7a
6/6a
5/5a
4
1
3/3a
SCHROFF
SCHROFF PRODUCT CATALOG 05/2018
7.38 nVent.com/SCHROFF
Plug-in units – for VME
|
Text
Text
DIMENSIONS FRONT PANELS, U PROFILES, FOR TRAPEZIFORM EXTRACTOR HANDLES, TYPE 2
3 U 6 U
04608109 04608107
shieldable
unshielded
04608064 04608077 04608065 04608078
4 HP ≥5HP 4 HP ≥5HP
20.2d
b
128.4
115.2
115.2
YX
YX
7.45
e
7.45
e
5.085.08
d
3
3
3
14.7
14.7
9.999.99
2.6
ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
b
b
c
c0.9
0.9
6.2
5
5
6.2
2.5ø
2.5ø
2.5
2.5
ø2.5 ø 2.5
YX
9.999.99
2.6
ø2.6ø
2.32.3
6.03
6.03
2.7
2.7
8.4
8.4
7.77.7
13.813.8
3.33.3
261.75
235.4
235.4
Y
X
20.2d
b
d
33
b
b
cc 0.90.9
6.2
6.2
2.5ø
2.5
2.5
ø2.5
2.5
2.5
ø2.5
2.5
ø2.5
2.5
Dimensions table
Width b c d
HP mm mm mm
419.98 17.45 –
5 25.06 22.53 –
630.14 27.61 –
7 35.22 32.69 –
840.30 37.77 7.45
9 45.38 42.85 7.45
10 50.46 47.93 7.45
11 55.54 53.01 7.45
12 60.62 58.09 7.45
14 70.78 68.25 7.45
16 80.94 78.41 7.45
SCHROFF
7.39
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
2,5 6,1
3,65
13,8
5,93,7
15,4
19,8
23,4
4,07
4,07
2,5 6,1
3,65
13,8
5,93,7
15,4
19,8
23,4

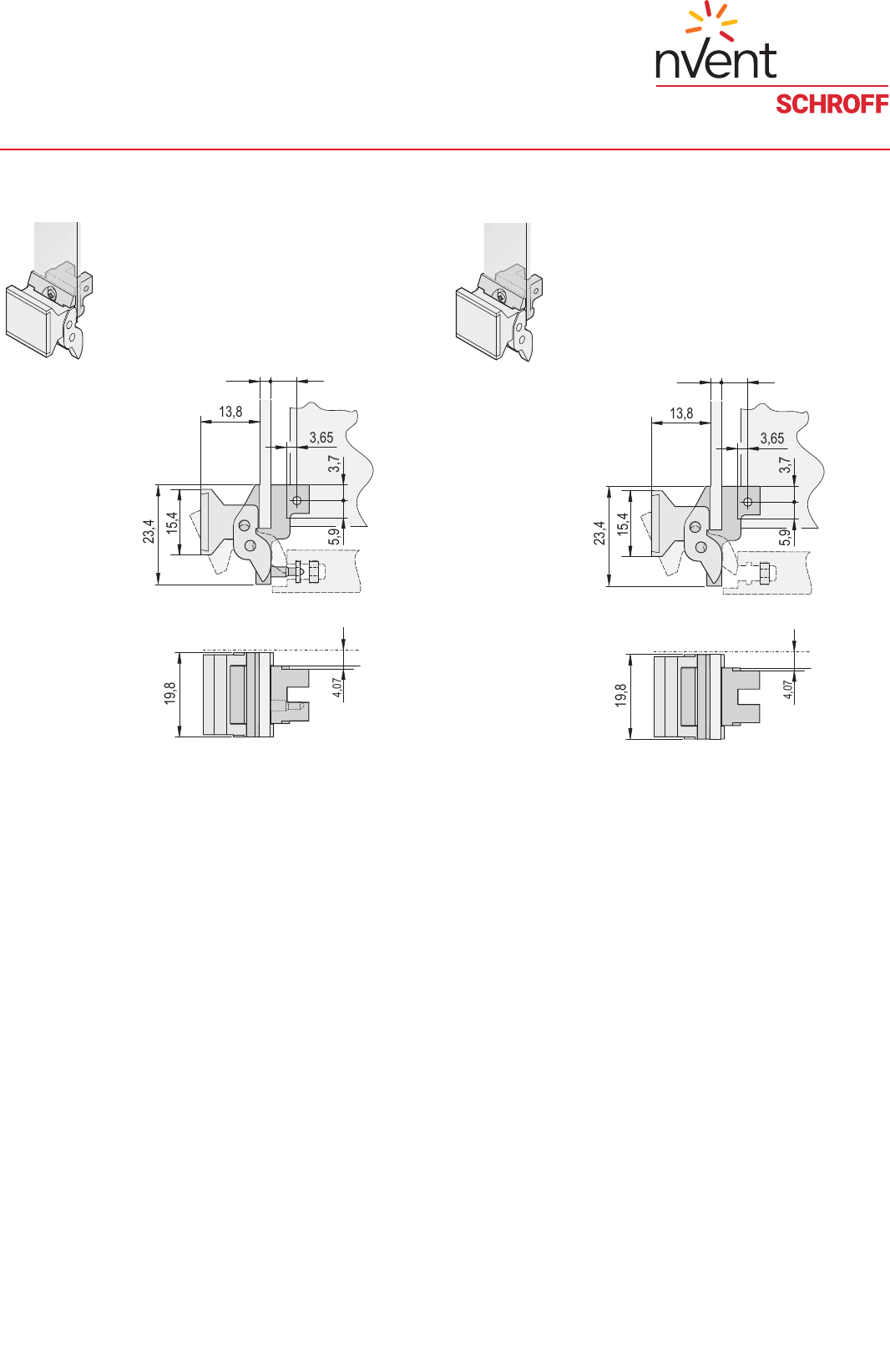

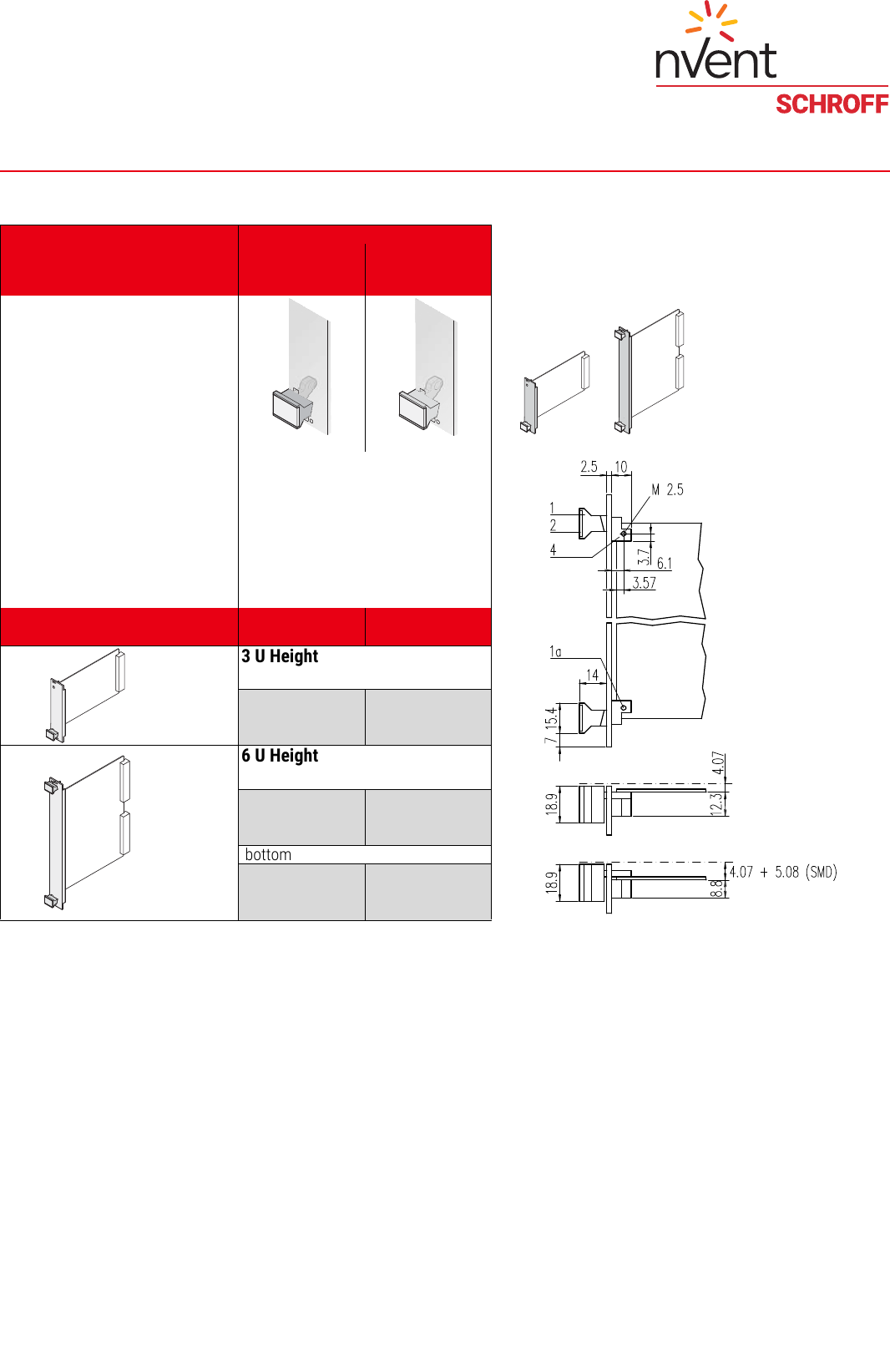

DIMENSION DRAWINGS EXTRACTOR HANDLE, TRAPEZIFORM, TYPE 2
with alignment pin without alignment pin
2"— m/ent SCHROFF r25 7» 4 W W
SCHROFF PRODUCT CATALOG 05/2018
7.40 nVent.com/SCHROFF
Plug-in units – for VME
|
3 U
04602058
6 U
04602059
for VME
•At 6 U the board position can be offset by 1 HP to the right by
swapping the top and bottom board supports; thus space is
created for SMD components on the left (solder) side;
for board thickness 1.6 mm only
DELIVERY COMPRISES (kit)
ORDER INFORMATION
NOTE
•Dimension front panel see page 7.45

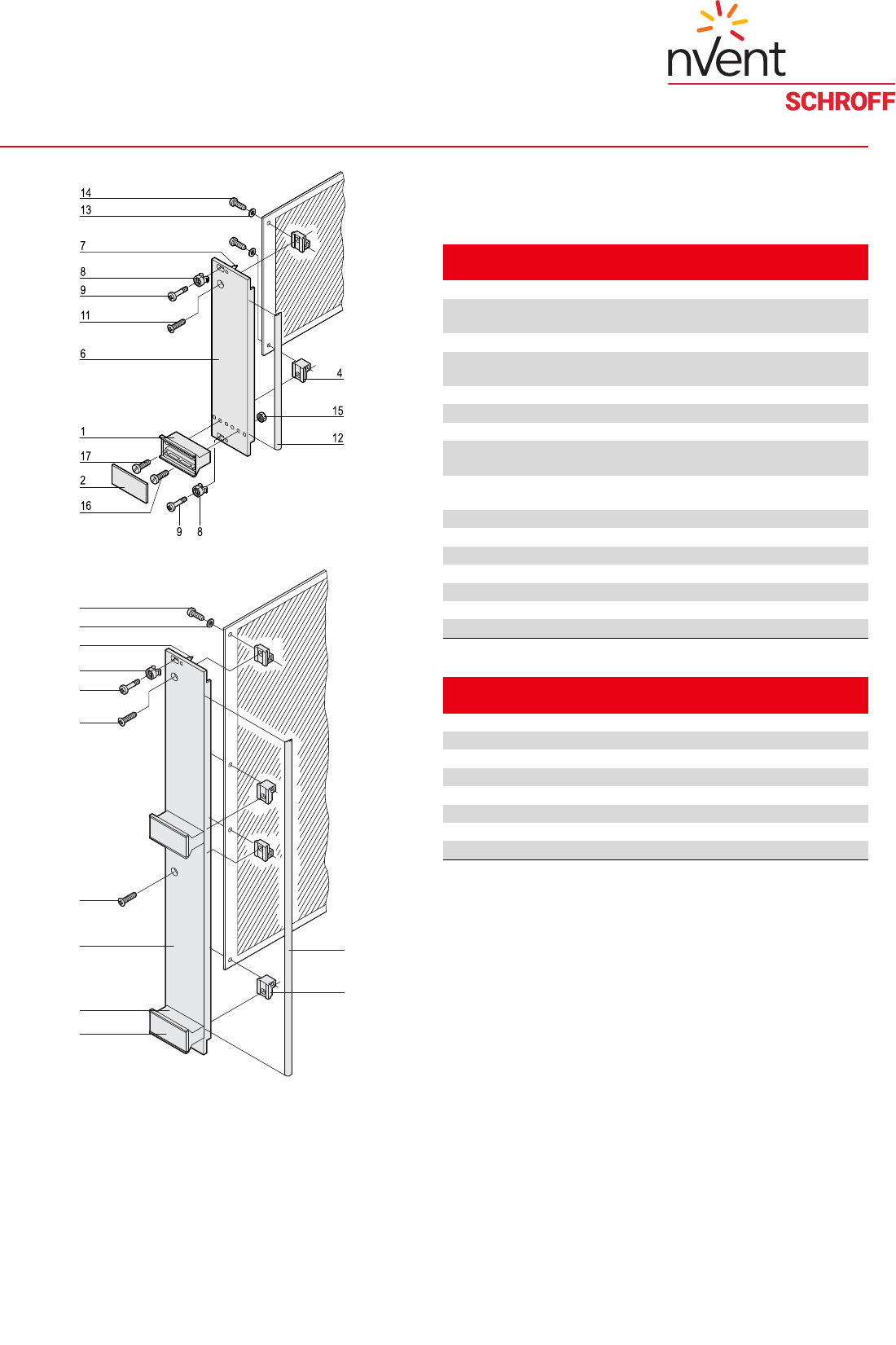

KITS PLUG-IN UNITS WITH TRAPEZIFORM EXTRACTOR
HANDLE, TYPE 1 – FRONT PANEL, U-PROFILE, SHIELDED
5
4
12
13
14
7
8
9
11
6
2
3
1
7
98
8
14 13
9
11
4a
6
1a
2
3
1
4
12
Item Qty Description
3 U 6 U
111Extractor handle, trapeziform type, PPE, grey, bottom
1a - 1 Extractor handle, trapeziform type, PPE, grey, top
2 1 2 Identification plate, Al, 1.5 mm, anodised,
cut edges plain
3 1 2 Pivot bush, Ms
4 1 1 Board support, die-cast zinc, bottom
4a - 1 Board support, die-cast zinc, top
5 1 - Board support, die-cast zinc
6 1 1 Front panel, U profile, for trapeziform extractor handle, front
anodised, rear conductive
7 2 2 Alignment pin, pressed-in, stainless steel
8 2 2 Sleeve, PA, grey, up to 7 HP front panel width
8 4 4 Sleeve, PA, grey, from 8 HP front panel width
9 2 2 Collar screw, Pozidrive/slot, St, nickel-plated, M2.5 × 12.3,
front panel width up to 7 HP
9 4 4 Collar screw, Pozidrive/slot, St, nickel-plated, M2.5 × 12.3,
front panel width from 8 HP
11 1 2 Raised countersunk panhead screw, M2.5 × 8
12 1 1 EMC gasket (textile)
13 2 2 Washer, A2.7, DIN 125
14 2 2 Pozidrive flathead screw, St, nickel-plated,
M2.5 × 10
Width 3 U 6 U
HP Part no. Part no.
4
20848-485 20848-492
6
20848-487 20848-494
8
20848-489 20848-496
10
20848-490
20848-497
12
20848-491 20848-498
2"— m/ent SCHROFF ’ M / / EM //////4
7.41
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
3 U
04602060
6 U
04602061
•At 6 U the board position can be offset by 1 HP to the right by swapping
the top and bottom board supports; thus space is created for SMD com-
ponents on the left (solder) side;
for board thickness 1.6 mm only
DELIVERY COMPRISES (kit)
ORDER INFORMATION
NOTE
•Dimension front panel see page 7.45
KITS PLUG-IN UNITS WITH TRAPEZIFORM EXTRACTOR
HANDLE, TYPE 1 – FRONT PANEL UNSHIELDED
5
4
13
14
8
9
11
6
2
3
1
98
8
14 13
9
11
4a
4
6
1a
2
3
1
Item Qty Description
3 U 6 U
1 11Extractor handle, trapezium shape, PPE, grey, bottom
1a – 1 Extractor handle, trapezium shape, PPE, grey, top
2 1 2 Identification plate, Al, 1.5 mm, anodised,
cut edges plain
3 12Pivot bush, Ms
4 1 1 Board support, die-cast zinc, bottom
4a – 1 Board support, die-cast zinc, top
5 1 – Board support, die-cast zinc
6 11Front panel for trapeziform extractor handle, front anodised,
rear irisdescent green chromated
8 2 2 Sleeve, PA, grey, up to 7 HP front panel width
8 44Sleeve, PA, grey, from 8 HP front panel width
9 2 2 Collar screw, Pozidrive/slot, St, nickel-plated, M2.5 × 11 and
12.3, front panel width up to 7 HP
9 44Collar screw, Pozidrive/slot, St, nickel-plated, M2.5 × 11 and
12.3, front panel width from 8 HP
11 1 2 Raised countersunk panhead screw, M2.5 × 8
13 22Washer, A2.7, DIN 125
14 2 2 Pozidrive flathead screw, St, nickel-plated, M2.5 × 10
Width 3 U 6 U
HP Part no. Part no.
4
20817-443 20817-448
5
20817-444 20817-449
6
20817-445 20817-450
7
20817-446 20817-451
8
20817-447 20817-452
10
20817-456 20817-458
12
20817-457 20817-459
SCHROFF
SCHROFF PRODUCT CATALOG 05/2018
7.42 nVent.com/SCHROFF
Plug-in units – for VME
|
ORDER INFORMATION
INDIVIDUAL
COMPONENTS FRONT PANELS AND EMC GASKETS, FOR TRAPEZOIDAL EXTRACTOR HANDLE, TYPE 1
Front panel,
U profile,
shieldable
Textile EMC gasket Front panel,
unshielded
04608091 BGA45760 04608092
Al profile,
front anodised, rear
conductive,
alignment pin
pressed-in, stainless
steel
always fixed laterally on the front panel, in
the groove of the profile,
textile gasket, core: foam,
sleeve: textile cladding with CuNi coating,
UL 94 V-0,
temperature range -40 ... 70 °C
front panel, Al,
2.5 mm,
front anodised, rear
irisdescent green
chromated
Width 1 piece (SPQ 5)1) PU 10 pieces PU 100 pieces 1 piece (SPQ 5)1)
HP
3 U Height
4
30848-461
21101-853 21101-854
30847-659
5–
30847-660
6
30848-463 30847-661
7–
30847-662
8
30848-465 30847-663
10
30848-466 30847-664
04608117 12
30848-467 30847-665
6 U Height
4
30848-468
21101-855 21101-856
30847-666
5–
30847-667
6
30848-470 30847-668
7–
30847-669
8
30848-472 30847-670
10
30848-473 30847-671
04608116 12
30848-474 30847-672
Dimensions see page 7.45 7.45
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity
(SPQ); please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
4,07
2,5
4,07
2,5
2"— m/ent SCHROFF a}, 25 ‘0 M1 25 1 7 j fl 4 h "‘r 6,1 357 3 u Height 1C .fl. V, 5’: a u Height ‘ a fi bollom , ,,,,,,, , m fl: 4117 + 538 (SW) 30 m f to
7.43
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL
COMPONENTS TRAPEZIFORM EXTRACTOR HANDLES, TYPE 1
Trapeziform extractor handle
black grey
04608093 04608094 04608117 04608116
handle closed laterally, PPE, UL 94 V-1, black; pivot
bush; identification plate, Al, 1.5 mm, anodised, cut
edges plain;
board support die-cast zinc;
in the 6 U version, space can be created for SMD
components on the left side by swapping the top and
bottom handles and thus moving the PCB position 1 HP
to the right
Width 1 piece (SPQ 10)1) 1piece (SPQ 10)
1)
HP
3 U Height
top
20817-329 20817-327
04608119
6 U Height
top
20817-330 20817-328
bottom
20817-329 20817-327
04608118 bga42556
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
SCHROFF /%
SCHROFF PRODUCT CATALOG 05/2018
7.44 nVent.com/SCHROFF
Plug-in units – for VME
|
ORDER INFORMATION
INDIVIDUAL
COMPONENTS FIXING MATERIAL FOR TRAPEZIFORM EXTRACTOR HANDLE, TYPE 1
bga42545
Fixing material Item Required Qty Qty/PU Part no.
3U 6U
< 8 HP ≥ 8 HP < 8 HP ≥ 8 HP
Board support, die-cast zinc, with thread M2.5,
for front panel and PCB fixing
5 1 2 2 4 1piece
(SPQ 10)1)
60807-181
06707050
Board support, plastic, PBT, UL 94 V-0, grey,
with recess for hexagon nut M2.5, for fixing front panel
5a 1 2 2 4 1piece
(SPQ 10)1)
60807-183
AZA45177
Plastic sleeve, for form hole 5.9 x 3.3
PA, UL 90 V-2, grey
8 2 4 2 4 100
21100-464
aza45933
Metal sleeve, for form hole 5.9 x 3.3, press-in
Stainless steal
8a 2 4 – – 100
21100-662
aza45934
Pozidrive/slotted collar screw
M2.5 × 11, St, nickel-plated 9 2 4 2 4 100
21100-748
AZA46586 AZA46586
Pozidrive/slotted collar screw
M2.5 × 12.3, St, nickel-plated 9a 2 4 2 4 100
21101-101
AZA46586 AZA46586
Raised Pozidrive countersunk screw
M2.5 × 8, St, nickel-plated
11 2 2 2 2 100
21100-429
06702056
Washer
2.7 DIN 125, St, nickel-plated, 100 pieces
13 2 2 2 2 100
21100-721
AZA46586
Pozidrive panhead screw
M2.5 × 10, St, nickel-plated
for item 5
14 2 2 2 2 100
21101-220
AZA45177
Panhead screw, self-tapping
2.5 x 8, St, zinc-plated
for item 5b
14a 1 1 – – 100
21100-710
06702057
Hexagon nut
M2.5, nickel-plated steel
for item 5b
15 1 1 – – 100
21100-144
aza43239
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
8/8a
9/9a
11
1315
5a
5
14 /14a
\‘l, n\7ént SCHROFF DA D P_. v 7W, * § W 7 2C /\Y i
7.45
Plug-in units – for VME
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Text
ZZ
Z
YY
Y
A
B
122.4
99
128.4
5.08
12.5
3.6 3.9
3
14.7
4.214.6
7.455.08
2.5 5
2.5
6.2
6.2
ø5.9x 3.3
ø5.9x 3.3
ø2.5 ø2.5
A
B
255.75
232.35
261.75
5.08
12.5
3.6 3.9
3
14.7
4.214.6
7.45
ø2.5
ø2.5
ø5.9x 3.3
A
B
122.4
99
128.4
ø3
12.5
3.6 3.9
3
4.214.6
14.7
7.455.08
ø5.9x 3.3
A
B
255.75
232.35
261.75
12.5
3.6 3.9
3
4.214.6
14.7
7.45
A-A A-A
AA AA
ø2.5 ø2.5
DIMENSIONS FRONT PANELS FOR TRAPEZOIDAL EXTRACTOR HANDLES, TYPE 1, SHIELDED/UNSHIELDED
04608117 04608116
04603054 04603063
3 U 6 U 3 U 6 U
Dimensions table
Width A B
HP mm mm
419.98–
525.06–
630.14–
735.22–
8 40.30 20.32
10 50.46 30.48
12 60.62 40.64
SCHROFF bottom 9U bottom
SCHROFF PRODUCT CATALOG 05/2018
7.46 nVent.com/SCHROFF
Plug-in units – for Multibus II
|
for Multibus II
ORDER INFORMATION

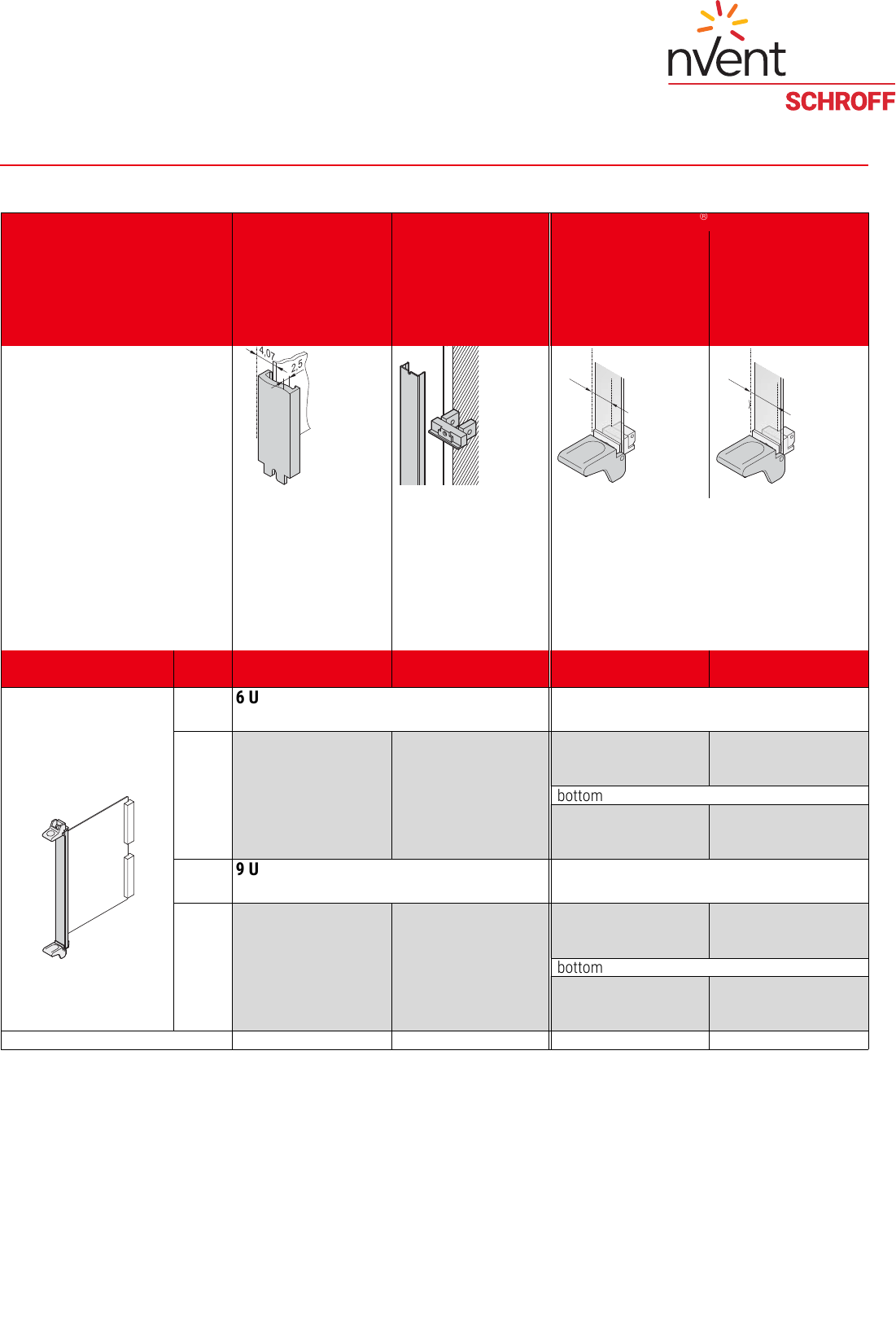

INDIVIDUAL
COMPONENTS FRONT PANELS/EXTRACTOR HANDLES FOR MULTIBUS® II, SYMMETRICAL/SMDVERSION
U front profile Mounting block Extractor handle for Multibus® II
symmetrical handle SMD handle
for
D-Sub connector (50 pin)
grey, RAL 7032 grey, RAL 7032
04608095 04608098 04608099 04608108
Al extrusion, 1 mm for fixing D-Sub
connectors 50-pin,
thread on front UNC4/40;
required quantity:
for 6 U 1x, for 9 U 2x
extractor handle for Multibus®II, PC, UL 94 V-0;
bearing, Zn die-cast, nickel-plated;
slotted cheesehead screw, M2.5 x 6,
Pozidrive/slotted collar screw, M2.5 × 12.3, St, nickel-plated
in the 6 U version, space can be created for SMD components on the left
side by swapping the top and bottom handles and thus moving the PCB
position 1 HP to the right
Width 1 piece (SPQ 5)1) 1 piece (SPQ 10)1) 1 piece (SPQ 10)1) 1piece (SPQ 10)
1)
HP
6 U
Height
6 U Height
top
30829-001 60829-008
20829-011 20829-004
4 bottom
20829-011 20829-003
9 U
Height
9 U Height
top
30829-007 60829-008
20829-011 20829-004
4 bottom
20829-011 20829-003
04608120
Dimensions see page 7.47 7.47 7.47 7.47
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
4,07
2,5
4,07
9,15
(SMD)
2"— m/ent SCHROFF kw? “r U1
7.47
Plug-in units – for Multibus II
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Text
H
230,4
6a
7
8
4.7
30.9
3.5
11.7
20.6
20 20
4.07
1)
1)
4.07+5.08
(SMD)
8.2
5.5
5
DIMENSION DRAWINGS FRONT PANELS, U PROFILE / FRONT PANEL FOR MULTIBUS® II
6/9 U 6 U
04608120 04608136
Dimensions
table
Height Height
Umm
6230.4
9 363.7
A4-2580 BGA46120
DIMENSIONS EXTRACTOR HANDLES, MOUNTING BLOCK FOR MULTIBUS® II
04608121 BGA42549 for D-Sub connector (50 pin)
BGA42585
gba42579
SCHROFF f
SCHROFF PRODUCT CATALOG 05/2018
7.48 nVent.com/SCHROFF
Plug-in units – for IEC 60297, key form 1
|
for IEC 60297, key form 1
ORDER INFORMATION
INDIVIDUAL

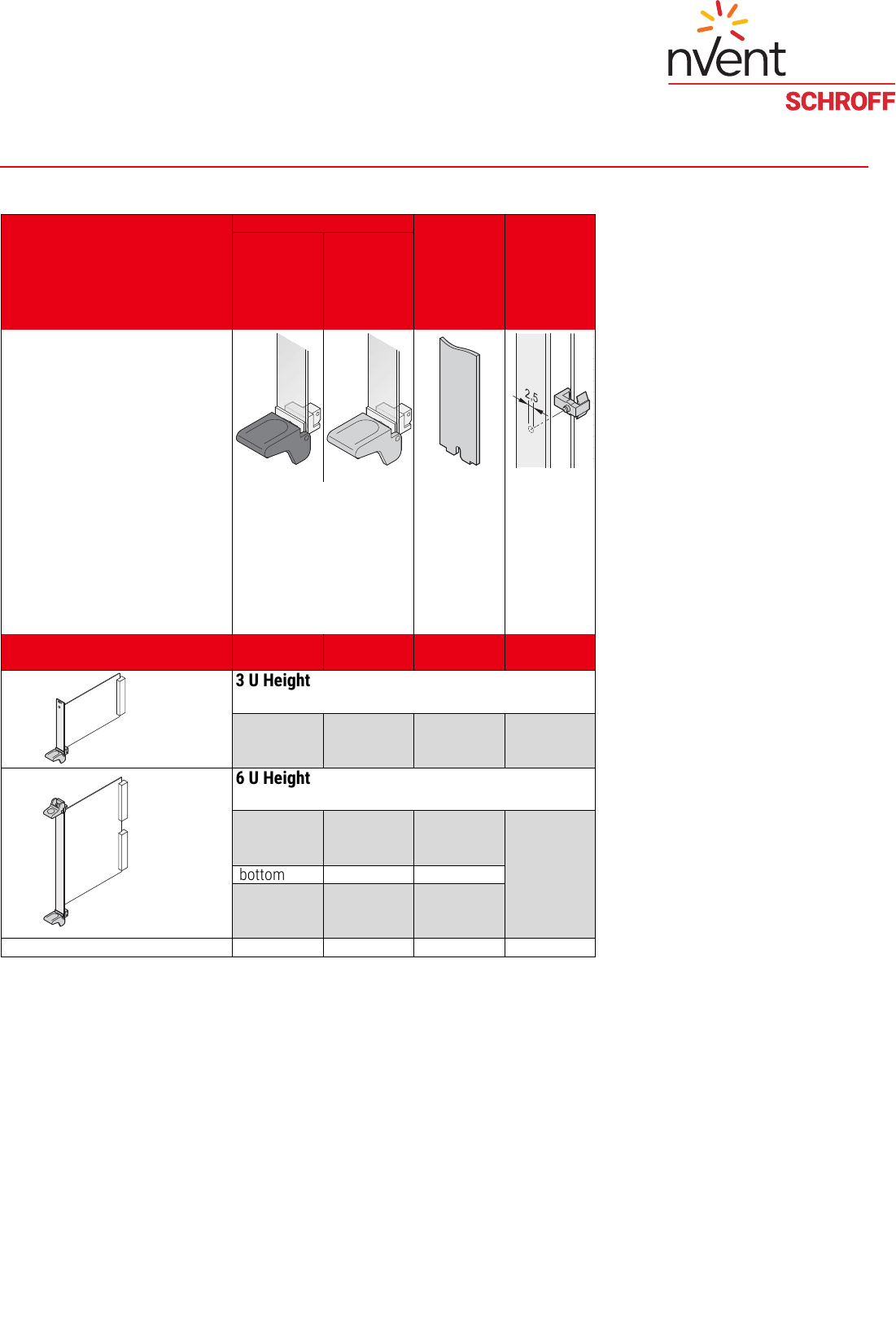

COMPONENTS EXTRACTOR HANDLES IN KEY FORM 1
Extractor handle Front panel Fixing clip
black grey
04608101 04608102 04608103 bga42544
extractor handle in key form 1, PC,
UL 94 V-0; bearing Zn die-cast, nickel-
plated; slotted cheesehead screw,
M2.5 x 6 (fitted);
in the 6 U version, space can be created
for SMD components on the left side by
swapping the top and bottom handles
and thus moving the PCB position 1 HP
to the right
Al, 2.5 mm;
available on
request
for fixing PCB to
the front panel
(blind hole X2.6,
depth 1.3 mm);
also for SMD
applications; clip,
PPE,
UL 94 V-0, red
Width 1piece
(SPQ 10)1) 1 piece
(SPQ 10)1) PU 100 pieces
HP
3 U Height
bottom
20817-345 20817-325
– –
04608123
6 U Height
top
20817-346 20817-326
–
21100-719
bottom
20817-345 20817-325
–
04608122
Dimensions see page 7.50 7.50 7.50
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
2,5
SCHROFF
7.49
Plug-in units – for IEC 60297, key form 1
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL
COMPONENTS FIXING MATERIAL FOR EXTRACTOR HANDLE IN KEY FORM 1
bga42545
Fixing material Item Required Qty Qty/PU Part no.
3U 6U
Board support, die-cast zinc, with thread M2.5,
for front panel and PCB fixing
5 1 – 1piece (SPQ
10)1)
60807-181
06707050
Board support, plastic, PBT, UL 94 V-0, grey,
with recess for hexagon nut M2.5, for fixing front panel
5a 1 – 1piece (SPQ
10)1)
60807-183
AZA45177
Plastic sleeve, for form hole 5.9 x 3.3
PA, UL 90 V-2, grey
8 1 – 100
21100-464
aza45933
Metal sleeve, for form hole 5.9 x 3.3, press-in
Stainless steal
8a 1 – 100
21100-662
aza45934
Pozidrive/slotted collar screw
M2.5 × 11, St, nickel-plated 9 2 2 100
21100-748
AZA46586 AZA46586
Pozidrive/slotted collar screw
M2.5 × 12.3, St, nickel-plated 9a 2 2 100
21101-101
AZA46586 AZA46586
Raised Pozidrive countersunk screw
M2.5 × 8, St, nickel-plated
11 1 – 100
21100-429
06702056
Washer
2.7 DIN 125, St, nickel-plated, 100 pieces
13 2 2 100
21100-721
AZA46586
Pozidrive panhead screw
M2.5 × 10, St, nickel-plated
for item 5
14 2 2 100
21101-220
AZA45177
Pan head screw, self-tapping
2.5 x 8, St, zinc-plated
for item 5b
14a 1 – 100
21100-710
06702057
Hexagon nut
M2.5, nickel-plated steel
for item 5b
15 3 6 100
21100-144
aza43239
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
8/8a
9/9a
11
1315
5a
5
14 /14a
\‘L n\7ént m U‘ U‘ Alzip/fl/H SCHROFF 3’1 7,5 6‘7
SCHROFF PRODUCT CATALOG 05/2018
7.50 nVent.com/SCHROFF
Plug-in units – for IEC 60297, key form 1
|
Af 2,5DIN 74
1,5
1,5
3
6,1
6,1
99,6
233,4
114,3
2,6
2,6
14,7
14,7
7,45
Ø
5,9x3,1
20
20
2,5
2,5
DIMENSIONS EXTRACTOR HANDLES/FRONT PANELS KEY FORM 1
04608089 04603055
04603056 04603057
3 U 6 U
SCHROFF 3 U Height 6 U Height bonem
7.51
Plug-in units – for IEC 60297, key form 2
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
for IEC 60297, key form 2
ORDER INFORMATION

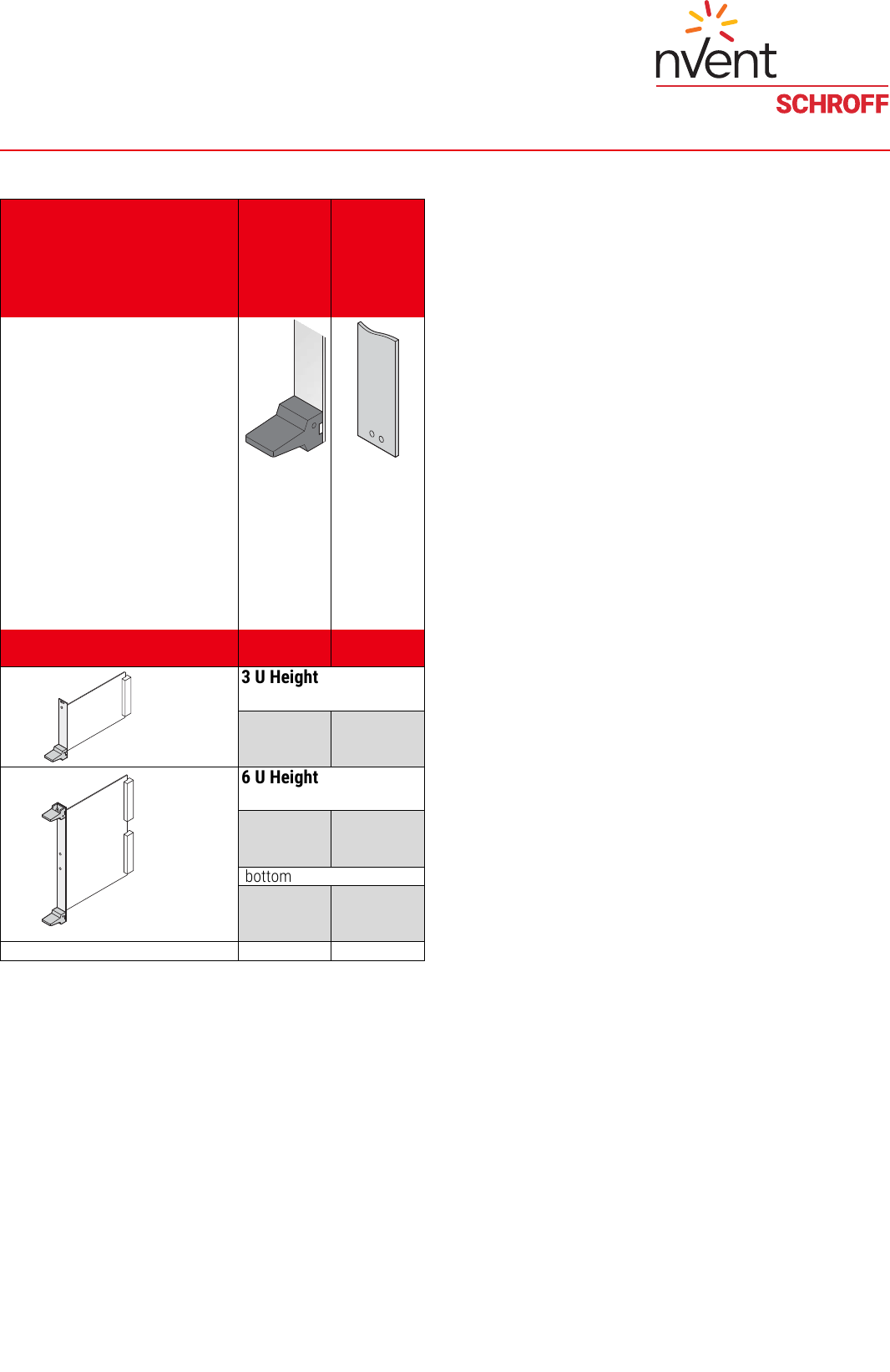

INDIVIDUAL COMPONENTS EXTRACTOR HANDLES IN KEY FORM 2
Extractor handle Front panel
black
04608104 04608106
extractor handle,
PBT, UL 90 V-0;
bearing
Zn die-cast, nickel-
plated; incl.
assembly kit for
handle mounting
Al, 2.5 mm;
available on
request
Width 1 piece (SPQ 10)1)
HP
3 U Height
top
20808-137
–
04608124
6 U Height
top
20808-137
–
bottom
20808-137
–
04608125
Dimensions see page 7.53 7.53
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in
standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
SCHROFF %€% Fixing material fl@o%éga%%@@@@
SCHROFF PRODUCT CATALOG 05/2018
7.52 nVent.com/SCHROFF
Plug-in units – for IEC 60297, key form 2
|
FIXING MATERIAL FOR EXTRACTOR HANDLES, KEY FORM 2
INDIVIDUAL COMPONENTS FIXING MATERIAL FOR EXTRACTOR HANDLES, KEY FORM 2
bga42545 04608137
Fixing material Item Required Qty Qty/PU Part no.
3U 6U
Board support, die-cast zinc, with thread M2.5,
for front panel and PCB fixing 5 1 2 1piece
(SPQ 10)1)
60807-181
06707050
Board support, plastic, PBT, UL 94 V-0, grey,
with recess for hexagon nut M2.5, for fixing front panel
5a 1 2 1piece
(SPQ 10)1)
60807-183
AZA45177
Plastic sleeve, for form hole 5.9 x 3.3
PA, UL 90 V-2, grey
8 1 – 100
21100-464
aza45933
Metal sleeve, for form hole 5.9 x 3.3, press-in
Stainless steal
8a 1 – 100
21100-662
aza45934
Pozidrive/slotted collar screw
M2.5 × 11, St, nickel-plated 9 2 2 100
21100-748
AZA46586
Pozidrive/slotted collar screw
M2.5 × 12.3, St, nickel-plated 9a 2 2 100
21101-101
AZA46586
Raised Pozidrive countersunk screw
M2.5 × 8, St, nickel-plated
11 1 – 100
21100-429
06702056
Washer
2.7 DIN 125, St, nickel-plated, 100 pieces
13 2 2 100
21100-721
AZA46586
Pozidrive panhead screw
M2.5 × 10, St, nickel-plated
for item 5
14 2 2 100
21101-220
AZA45177
Panhead screw, self-tapping
2.5 x 8, St, zinc-plated
for item 5b
14a 1 – 100
21100-710
06702057
Hexagon nut
M2.5, nickel-plated steel
for item 5b
15 3 – 100
21100-144
aza43239
PCB bracket
4 clearance holes for front panel/PCB fixing,
4 recesses for hexagon nuts; PBT, UL 94 V‑0, red
16 1 2 1 piece
(SPQ 10)
60807-011
04608138
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
8/8a
9/9a
11
1315
5a
5
14 /14a
16
15
2"— m/ent SCHROFF 100 88.9 3'57 33 35 22225 889 859 357
7.53
Plug-in units – for IEC 60297, key form 2
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Text
20
35
6,1
3,57
99
99
99
118,2
3,3 2,5
3
4,5
4,5
7,457,45
5,085,08
ø2,5ø2,5
ø5,9
2020
241,35
133,35
A-A
ø2,5
AAAA
DIMENSIONS HANDLES/FRONT PANELS KEY FORM 2
04608124 04608125
BGA42573 BGA42578
3 U 6 U
20
35
6,1
3,57
99
99
99
118,2
3,3 2,5
3
4,5
4,5
7,457,45
5,085,08
ø2,5ø2,5
ø5,9
2020
241,35
133,35
A-A
ø2,5
AAAA
DIMENSIONS DRILL HOLE DIMENSIONS ON THE PCB KEY FORM 2
3 U 6 U
BGA43076 BGA43077
2"— m/ent SCHROFF
SCHROFF PRODUCT CATALOG 05/2018
7.54 nVent.com/SCHROFF
Plug-in units – for IEC 60297, trapeziform
|
3 U
04602062
6 U
04602063
for IEC 60297, trapeziform
•Front panel, U-profile, shielded
•Handle without extraction function
DELIVERY COMPRISES
ORDER INFORMATION
KITS PLUG-IN UNIT WITH STATIC TRAPEZIFORM HANDLE
14
13
7
8
9
11
11
6
2
1
4
12
Item Qty Description
3 U 6 U
1 1 2 Plastic handle, trapeziform, PPE, grey
2 1 2 Identification plate, Al, 1.5 mm, anodised,
cut edges plain
4 2 4 Board support, die-cast zinc
6 1 1 Front panel, U profile, for trapeziform handle,
front anodised, rear conductive
7 2 2 Alignment pin, pressed-in, stainless steel
8 2 2 Sleeve, PA, grey, up to 7 HP front panel width
8 4 4 Sleeve, PA, grey, from 8 HP front panel width
9 2 2 Pozidrive/slotted collar screw, St, nickel-plated, M2.5 × 11
and 12.3, front panel width up to 7 HP
9 4 4 Pozidrive/slotted collar screw, St, nickel-plated, M2.5 × 11
and 12.3, front panel width from 8 HP
11 1 2 Raised countersunk screw, St, nickel-plated, M2.5 × 8
12 1 1 EMC sealing (textile)
13 2 4 Washer, A2.7, DIN 125
14 2 4 Pozidrive flathead screw, St, nickel-plated, M2.5 × 10
15 1 2 Hexagon nut, St, nickel-plated, M2.5
16 1 2 Pozidrive flathead screw, St, nickel-plated, M2.5 × 12
17 1 2 Pozidrive flathead screw, St, nickel-plated, M2.5 × 16
Width 3 U 6 U
HP Part no. Part no.
3
20848-663
20848-671
4
20848-664 20848-672
5
20848-665 20848-673
6
20848-666 20848-674
7
20848-667
20848-675
8
20848-668 20848-676
10
20848-669 20848-677
12
20848-670
20848-678
nVént S
7.55
Plug-in units – for IEC 60297, trapeziform
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
3 U
04602064
6 U
04602065
•Front panel unshielded
•Handle without extraction function
DELIVERY COMPRISES
ORDER INFORMATION
KITS PLUG-IN UNIT WITH STATIC TRAPEZIFORM HANDLE
14
13
8
9
11
6
1
17
2
98
16
15
4
14
13
8
9
11
11
6
2
1
4
Item Qty Description
3 U 6 U
1 1 2 Plastic handle, trapeziform, PPE, grey
2 12Identification plate, Al, 1.5 mm, anodised,
cut edges untreated
4 24Board support, die-cast zinc
6 11Front panel for trapeziform handle,
front anodised, rear irisdescent green chromated
8 2 2 Sleeve, PA, grey, up to 7 HP front panel width
8 44Sleeve, PA, grey, from 8 HP front panel width
9 2 2 Pozidrive/slotted collar screw, St, nickel-plated, M2.5 × 11
and 12.3, front panel width up to 7 HP
9 44Pozidrive/slotted collar screw, St, nickel-plated, M2.5 × 11
and 12.3, front panel width from 8 HP
11 1 2 Raised countersunk screw, St, nickel-plated, M2.5 × 8
13 24Washer, A2.7
14 2 4 Pozidrive flathead screw, St, nickel-plated, M2.5 × 8
15 12Hexagon nut, St, nickel-plated, M2.5
16 1 2 Pozidrive flathead screw, St, nickel-plated, M2.5 × 12
17 12Pozidrive flathead screw, St, nickel-plated, M2.5 × 16
Width 3 U 6 U
HP Part no. Part no.
3
20818-017
20809-507
4
20818-018 20818-025
5
20818-019 20818-026
6
20818-020 20818-027
7
20818-021 20818-162
8
20818-022 20818-028
10
20818-023 20818-029
12
20818-024 20818-120
SCHROFF 3 U Height 6 U Height
SCHROFF PRODUCT CATALOG 05/2018
7.56 nVent.com/SCHROFF
Plug-in units – for IEC 60297, trapeziform
|
ORDER INFORMATION
INDIVIDUAL
COMPONENTS FRONT PANELS FOR STATIC CANTILEVER HANDLES
Front panel, U-profile, shieldable Front panel
unshielded
Front panel, U-
profile
Textile EMC gasket
04608130 bga45760 04608131
Al extrusion, front
anodised, rear
conductive,
alignment pin
pressed-in,
stainless steel
always fixed laterally on the front panel,
in the groove of the profile,
textile gasket, core: foam,
sleeve: textile cladding with
CuNi coating,
UL 94 V-0,
temperature range -40 ... 70 °C
front panel, Al 2.5
mm;
front anodised;
rear iridescent
green chromated
Width 1piece
(SPQ 5)1) PU 10 pieces PU 100 pieces 1piece
(SPQ 5)1)
HP
3 U Height
3
30849-086
21101-853 21101-854
30847-602
4
30849-087 30847-603
5
30849-088 30847-604
6
30849-089 30847-605
7
30849-090 30847-606
8
30849-091 30847-607
10
30849-092 30847-608
04608126 12
30849-093 30847-609
6 U Height
3
30849-097
21101-855 21101-856
30847-625
4
30849-098 30847-626
5
30849-099 30847-627
6
30849-100 30847-628
7
30849-101
–
8
30849-102 30847-630
10
30849-103 30847-631
04608127 12
30849-104
–
Dimensions see page 7.60 7.60
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity
(SPQ); please order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
4,07
2,5
4,07
2,5
2"— m/ent SCHROFF 3/ s u Height
7.57
Plug-in units – for IEC 60297, trapeziform
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
ORDER INFORMATION
INDIVIDUAL

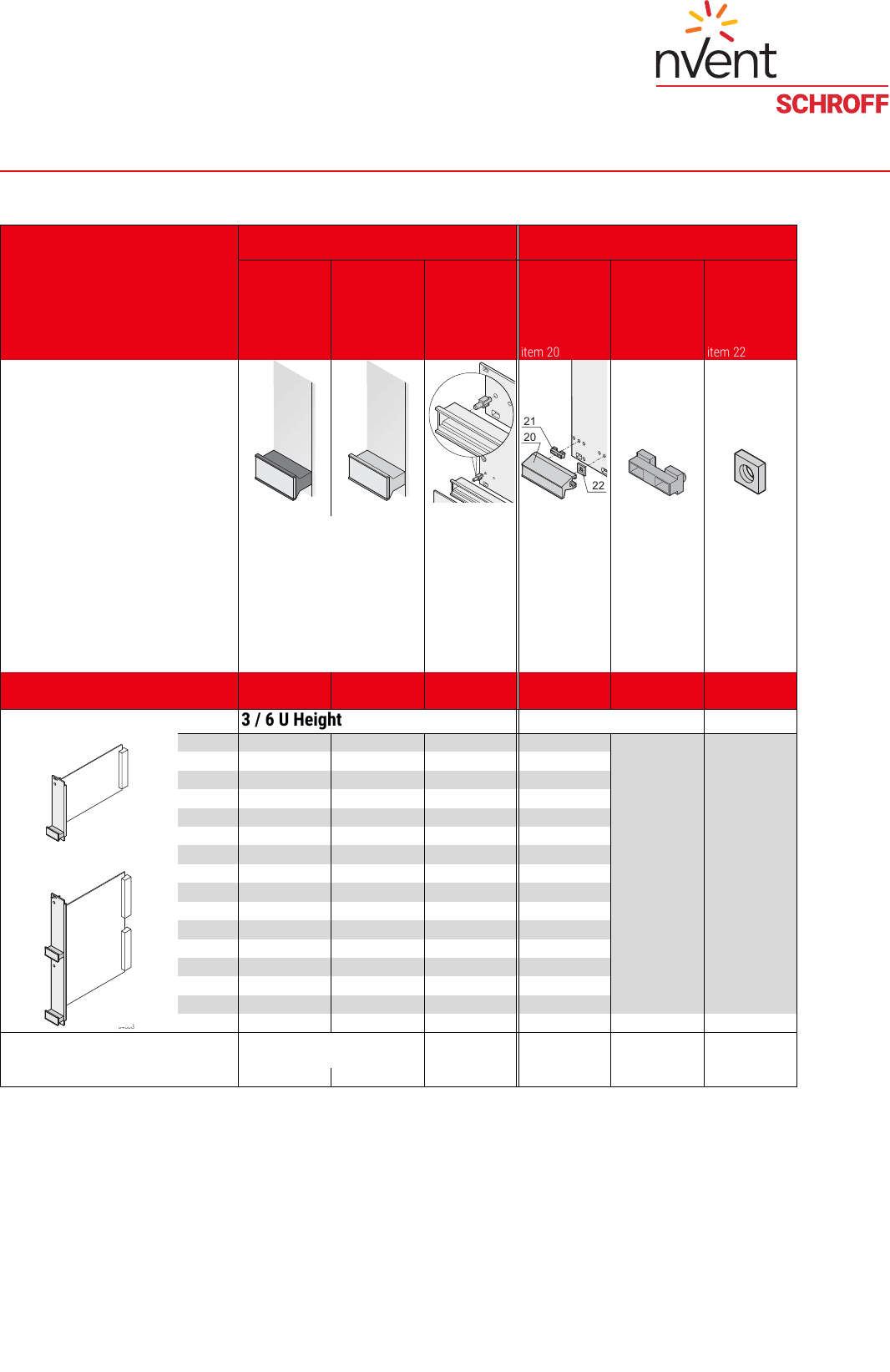

COMPONENTS STATIC TRAPEZIFORM HANDLE
Plastic handle in trapeziform Al profile handle
Trapeziform
handle
black
Trapeziform
handle
grey
Fixing clip Handle
item 20
Fixing part for Al
profile handle
item 21
Square nut
item 22
04608132 04608133 04808064 04608134 04608135 06707050
handle: PPE, UL 94 V-1; identification
plate: Al, 1.5 mm, anodized, cut edges
plain; please order clip separately;
3, 4 HP each have 2 alignment pins,
5 ... 42 TE have no alignment pins;
required qty: 1 handle for 3 HE
2handlesfor6HE
clip, PPE, UL 94 V-
0, black
Al extrusion,
anodised;
fixing part, POM,
black;
square nut, St,
nickel-plated;
at length of
1000 mm only
Al extrusion
fixing part, POM,
black
DIN 562, M2.5, St,
nickel-plated
Width 1piece
(SPQ 5)1) 1piece
(SPQ 5)1) PU 100 pieces 1piece
(SPQ 10)1) PU 100 pieces PU 100 pieces
HP
3 / 6 U Height
3
20809-396 20809-294
–
20809-281
– –
4
20809-397 20809-295
–
20809-282
5
20808-080 20808-003 21101-239 20809-283
6
20808-081 20808-060 21101-239 20809-284
7
20808-082 20808-061 21101-239 20809-285
8
20808-083 20808-062 21101-239 20809-286
9
20808-084 20808-063 21101-239 20809-287
10
20808-085 20808-004 21101-239 20809-288
12
20808-086 20808-064 21101-239 20809-289
14
20808-087 20808-065 21101-239 20809-290
21
20808-088 20808-066 21101-239 20809-291
28
20808-089 20808-067 21101-239 20809-292
40
20808-090 20808-009 21101-239
–
42
20808-091 20808-068 21101-239 20809-293
61
20808-092
20808-012
– –
04608128 04608129 1000 mm – – –
30809-428 21100-476 21100-359
Fixing material see page 7.59
Item 15, 16, 17
Dimensions see page 7.59 7.59 7.59 7.59 7.59
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
lease order at least the SPQ quantity or a multiple
Part no. includes one packing unit (PU); delivery is exclusively made in PU
20
22
21
\‘L n\7ént SCHROFF 222 25 889 889
SCHROFF PRODUCT CATALOG 05/2018
7.58 nVent.com/SCHROFF
Plug-in units – for IEC 60297, trapeziform
|

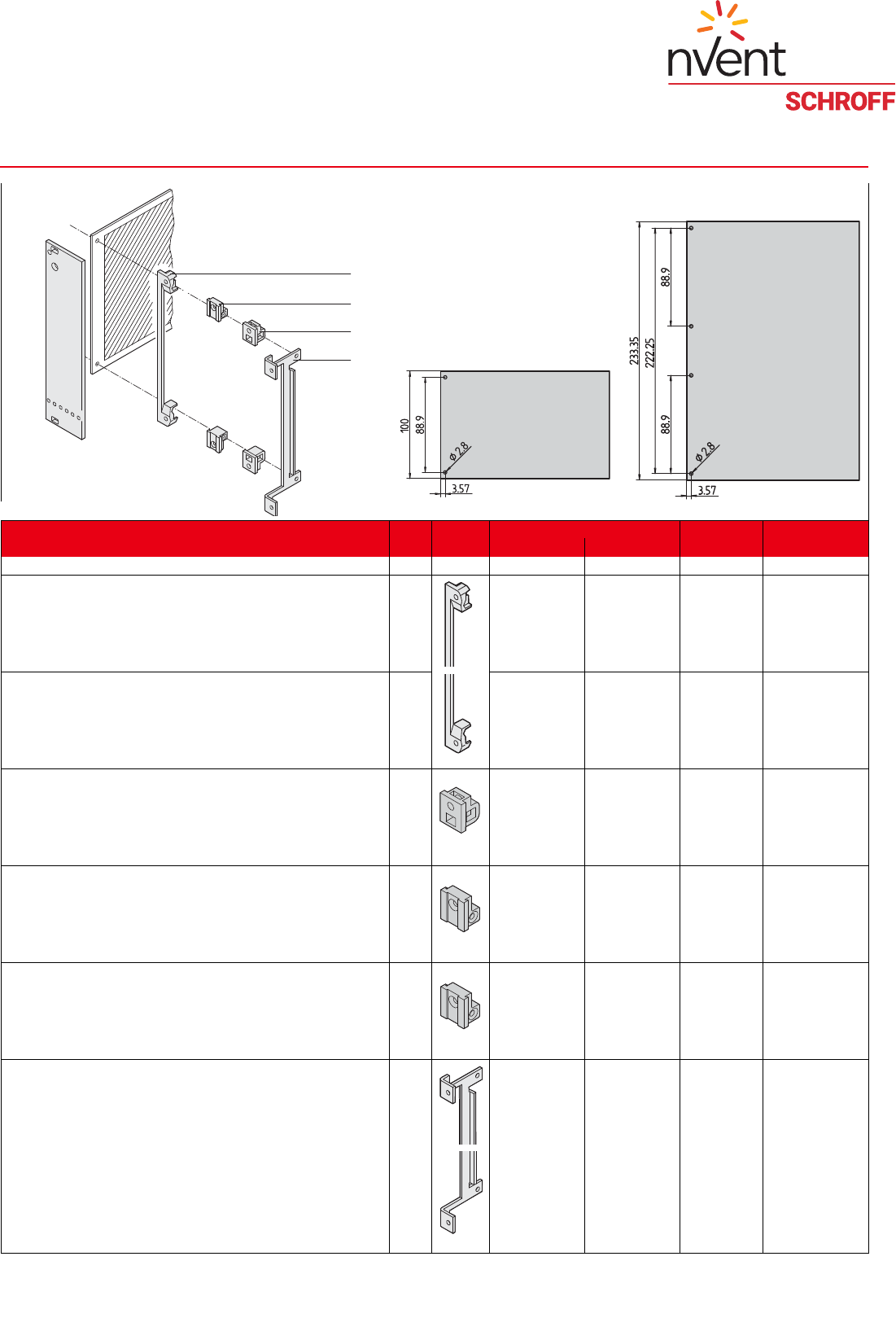

INDIVIDUAL
COMPONENTS PCB BRACKET FOR STATIC TRAPEZIFORM HANDLE
Drill hole dimensions on PCB
04609052 3 HE 6 HE bga43076 bga43077
Item Required Qty Qty/PU Part no.
3U 6U
PCB bracket
4 clearance holes for front panel/PCB fixing,
4 recesses for hexagon nuts; PBT, UL 94 V-0, red
512
1piece
(SPQ 10)1)
60807-011
PCB bracket
4 threads M2.5 for front panel/PCB fixing,
PBT, UL 94 V-0, grey, 1 piece
5a 1 2 1piece
(SPQ 10)1)
60807-211
AZA45177
PCB bracket
Clearance hole for front panel fixing, with recess for hexagon nut, drill hole
for self-tapping screw for PCB fixing,
PBT, UL 94 V-0, grey, 1 piece
5b 2 4 1piece
(SPQ 10)1)
60807-183
AZA45177
PCB bracket
2 threads M2.5 for front panel/PCB fixing, die-cast zinc, 1 piece
5c 2 4 1piece
(SPQ 10)1)
60807-181
06707050
PCB bracket
Thread M2.5 for front panel fixing, clearance hole for PCB fixing, die-cast
zinc, 1 piece
5d 2 4 1piece
(SPQ 10)1)
60807-203
06707050
PCB bracket
4 M2.5 threads for fixing front panel/PCB for recessed PCB mounting
(20 mm), mounting depth 192.24 mm, St, zinc-plated;
not for europacPRO, multipacPRO, ratiopacPRO, propacPRO or compacPRO,
1 piece
5e 1 2 1piece
(SPQ 10)1)
30808-871
AZA46586
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
5/5a
5c/5d
5b
5e
SCHROFF
7.59
Plug-in units – for IEC 60297, trapeziform
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
INDIVIDUAL
COMPONENTS FIXING MATERIAL FOR STATIC TRAPEZIFORM HANDLE
3U 6U
top
bottom
04609053 04609054
Item Required Qty Qty/PU Part no.
3U 6U
< 8 HP ≥ 8 HP < 8 HP ≥ 8 HP
Plastic sleeve, for form hole 5.9 x 3.3
PA, UL 90 V-2, grey 8 2 4 2 4 100
21100-464
aza45933
Metal sleeve, for form hole 5.9 x 3.3, press-in
Stainless steal 8 2 4 2 4 100
21100-662
aza45934
Metal sleeve, for form hole 5.9 x 3.3, to press-in
Nickel-plated brass 8a 2 4 2 4 100
21100-660
aza45934
Pozidrive/slotted collar screw
M2.5 × 11, St, nickel-plated
not for europacPRO and cases
9 2 4 2 4 100
21100-748
AZA46586 AZA46586
Pozidrive/slotted collar screw
M2.5 × 12.3, St, nickel-plated 9a 2 4 2 4 100
21101-101
AZA46586 AZA46586
Raised Pozidrive countersunk screw
M2.5 × 8, St, nickel-plated 11 1 1 2 2 100
21100-429
06702056
Washer
2.7 DIN 125, St, nickel-plated, 100 pieces 13 2 2 4 4 100
21100-721
AZA46586
Pozidrive panhead screw
M2.5 × 8, nickel-plated steel
if using item 13
14 2 2 4 4 100
21101-069
06702057
Panhead screw, self-tapping
2.5 x 8, St, zinc-plated
for items 5 and 5b
14a 1 1 – – 100
21100-710
06702057
Hexagon nut
M2.5, nickel-plated steel
for items 5 and 5b
5
15
4 4 8 8
100
21100-144
5b 2 2 4 4
aza43239
Pozidrive panhead screw
M2.5 × 12, nickel-plated steel 16 1 1 2 2 100
21101-221
06702057
Pozidrive panhead screw
M2.5 × 16, nickel-plated steel 17 1122100
21101-222
06702057
1) SPQ (standard pack quantity): Part number includes 1 piece, but delivery is exclusively made in standard pack quantity (SPQ);
please order at least the SPQ quantity or a multiple
14 /14a
13
8/8a/8b
9/9a
11
17
15
15
15
5/5a
5c/5d
5b
5e
16
8/8a/8b
9/9a
17
16
15
15
14 /14a
13
8/8a/8b
8/8a/8b
9/9a
9/9a
11
11
5/5a
15
5c/5d
5c/5d
5b
15
5b
5e
2"— m/ent SCHROFF J. A m .Afi A A a m 503 m5 mus 593 ms mg m mm mm N It \ 7%, \ \ \ A A A A A m a sueif M5 $5nenfl ‘5ne 7m ‘5“ m ‘503 “59”: ° " ... ‘ .. , . a 5 g a 503 5m max HE 505 nxsnx 5m; 598 w sax ll sex i new; lml sue sue 505 M Ha 1 mm lane 7, 7 §7 37,, 7L if L/ h 0 b i Jfir h 0 —7 —1 /~.;. 1/ .3 A H A;
SCHROFF PRODUCT CATALOG 05/2018
7.60 nVent.com/SCHROFF
Plug-in units – for IEC 60297, trapeziform
|
Text
Text
Text
“Z” “Y”
6.2
6.2
5
2.5
ø2.5
2.5
“Z” “Y”
14.7 99
7.45
7.457.457.457.455.08 5.08
5.08
5.08
5.08 5.08
nx5.08
5.085.08
5.08
5.08 5.08
5.08 5.08 5.08
AAA A A
B
ø5.9x 3.3
122.4
3
128.4
3TE 4TE 5 TE 6 TE >6 TE
“Z” “Y”
3TE 4TE 5 TE 6 TE >6 TE
14.7
14.7 99
99
7.45
7.457.457.457.455.08 5.08 5.08 5.08 5.08
A
AA A
A
B
ø5.9x 3.3
255.75
3
261.75
5.08
5.08
5.08 5.08
nx5.08
5.085.08
5.08
5.08 5.08
DIMENSIONS FRONT PANELS, U PROFILE, SHIELDABLE FOR STATIC TRAPEZIFORM HANDLE
04608126 04608127 04608111
04603064 04608110
3 U 6 U
Dimensions table
Width A B
HP mm mm
314.90 -
4 19.98 -
525.06 -
6 30.14 -
735.22 -
8 40.30 25.40
10 50.46 35.56
12 60.62 45.72
A-A A-A
AA
A
AA
A
ø2.5 ø2.5
7.45
7.45
99
133.4
122.4
128.4
14.7
99
99
14.7
D
D
C
C
255.8
3
3
261.8
ø5.9x 3.3
ø5.9x 3.3
ø2.5
ø2.5
A
A
B
B
DIMENSIONS FRONT PANELS FOR STATIC TRAPEZIFORM HANDLE
04608126 04608127 Dimensions table
Width A B C D
HP mm mm mm mm
3 14.90 - - -
419.98 - - -
5 25.06 - 10.16 -
630.14 - - 15.24
7 35.22 - - 20.32
840.30 25.40 -25.40
10 50.46 35.56 - 35.56
12 60.62 45.72 -45.72
04603053
3 U 6 U
SCHROFF
7.61
Plug-in units – for IEC 60297, trapeziform
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Text
Main CataloguePart number in bold face type: ready for despatch within 2 working daysPart number in normal type: ready for despatch within 10 working days

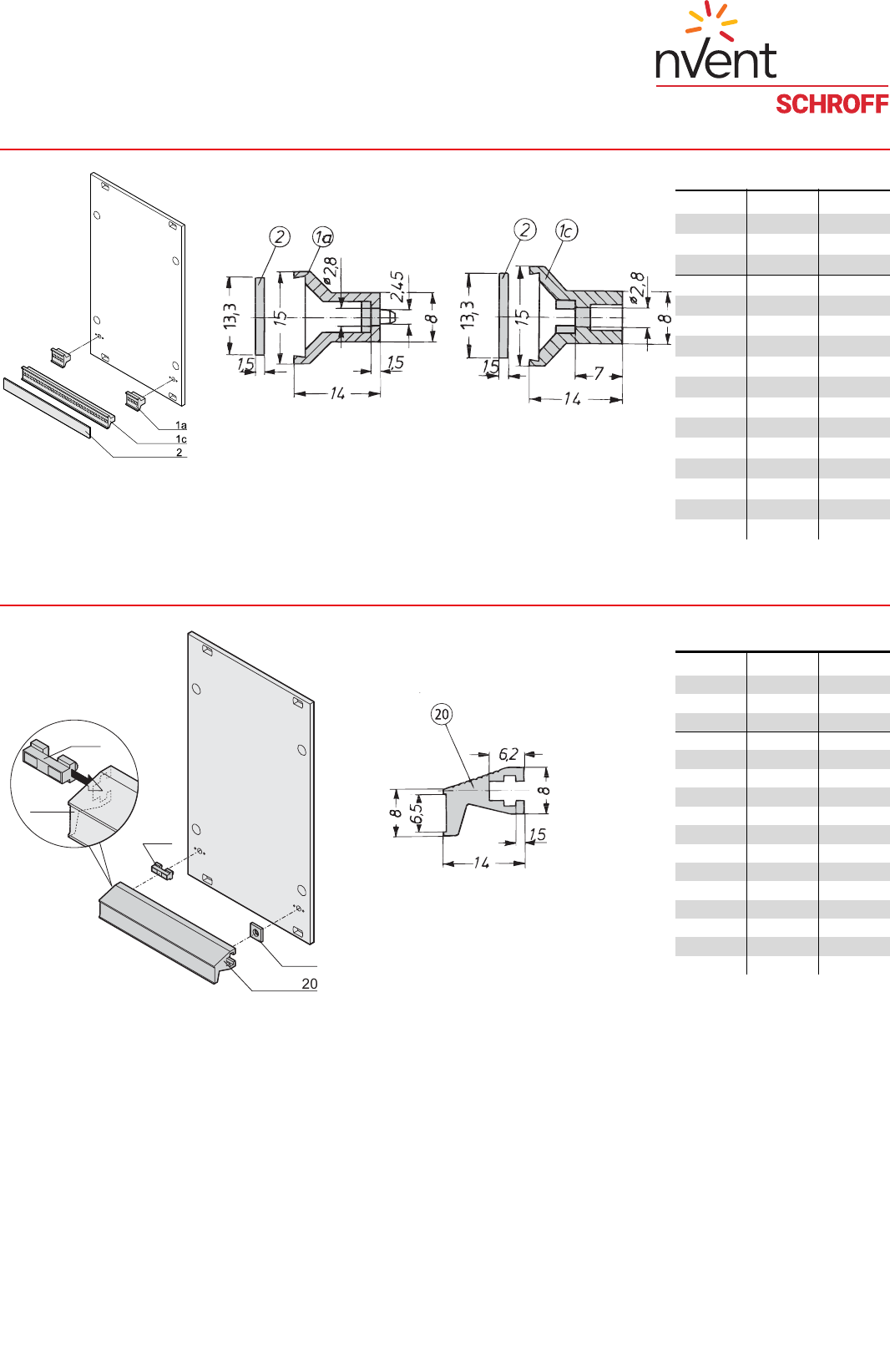

DIMENSIONS STATIC PLASTIC HANDLES, TRAPEZIFORM
Dimensions table
Item Width Width
HP mm
1a 3 13.8
1a 418.9
1c 5 24.0
1c 629.0
1c 7 34.1
1c 839.2
1c 9 44.3
1c 10 49.4
1c 12 59.6
1c 14 69.7
1c 21 105.2
1c 28 140.8
1c 40 201.8
1c 42 212.0
1c 61 308.5
BGA46447 A4--328a A4--328c
DIMENSIONS ALUMINIUM EXTRUSION HANDLES
04602069 A4-328d
20
22
21
21
21
Dimensions table
Item Width Width
20 HP mm
20 313.8
20 418.9
20 524.0
20 629.0
20 734.1
20 839.2
20 944.3
20 10 49.4
20 12 59.6
20 14 69.7
20 21 105.2
20 28 140.8
20 40 201.8
20 42 212.0
20 - 1000
\‘ L m/ent SCHROFF V 1
SCHROFF PRODUCT CATALOG 05/2018
7.62 nVent.com/SCHROFF
Plug-in units – with mechanical shielding
|
04602077
a4-237
with mechanical shielding
•Usable connectors in accordance with EN 60603 (DIN 41612):
Construction type B, C, D, F, H, R;
DELIVERY COMPRISES (kit)
ORDER INFORMATION
NOTE
•Keying/coding with separate keying/coding strip is not possible
•Please order shielding plates separately
PLUG-IN UNIT WITH MECHANICAL SHIELDING, 3 U KITS
•Mechanical protection of sub-assembly
•Earthing of shielding panels possible by Faston connectors 6.3 × 0.6 mm
•For euroboards 100 × 160 mm
Handles
without extraction function
Handles
with extraction function
04694001 04692003 04692005
3 U KIT, SHIELDING COMPONENT SIDE, HANDLES WITH/WITHOUT EXTRACTION FUNCTION
1
4
3
2
24,60
1
0,8
Item Qty Description
1 1 Front panel, AI, 2.5 mm,
front: anodised, rear: irisdescent green chromated
2 1 Trapeziform handle, PPE, UL 94 V-1, grey
3 1 Board support, PBT, UL 94 V-0, red
51 Assembly kit (also for shielding panels)
Width HPlug-in unit without extrac-
tionfunction
Plug-in unit with extrac-
tionfunction
HP mm Part no. Part no.
6 24.60
20809-502
20809-516
Item 4 Shielding panel
component side for 7 HP front
panel width, stainless steel, 0.8
mm, 1 piece
20809-371 20809-371
2"— m/ent SCHROFF
7.63
Plug-in units – with mechanical shielding
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
04602078
a4-236a
•Usable connectors in accordance with EN 60603 (DIN 41612):
Construction type B, C, D, F, H, R;
DELIVERY COMPRISES
ORDER INFORMATION
NOTE
•Keying/coding with separate keying/coding strip is not possible
•Where the shielding plate is used for the solder side, the PCB is offset to
the right by 1 HP
3 U KITS, BOTH SIDES SHIELDED (SOLDER/COMPONENT SIDE), HANDLES WITH/WITHOUT EXTRACTION FUNCTION
1
3
2
4
5
1
0,8
1,6
6
4-7TE
4,07 +1TE
Item Qty Description
1 1 Front panel, AI, 2.5 mm,
front: anodised, rear: irisdescent green chromated
2 1 Trapeziform handle, without extraction function, PPE,
UL 94 V-1, grey
3 2 Board support, PBT, UL 94 V-0, red
61 Assembly kit (also for shielding panels)
Width HPlug-in unit without ex-
traction function
Plug-in unit
with extraction func-
tion
HP mm Part no. Part no.
49.60
20809-495 –
514.70
20809-496 20809-511
619.80
20809-497 20809-512
724.90
20809-498
20809-513
Item 4 Shielding panel component
side for 4 HP front panel
width, stainless steel, 0.8 mm, 1
piece
20809-329 20809-329
Item 4 Shielding panel component
side or 5 HP front panel
width, stainless steel, 0.8 mm, 1
piece
20809-357 20809-357
Item 4 Shielding panel component
side for 6 HP front panel
width, stainless steel, 0.8 mm, 1
piece
20809-359 20809-359
Item 4 Shielding panel component
side for 7 HP front panel
width, stainless steel, 0.8 mm, 1
piece
20809-371 20809-371
Item 5 Shielding panel on solder
side, stainless steel, 0.8 mm, 1
piece
30809-571 30809-571
2"— m/ent SCHROFF m a 2.3 2an 123 L as: g 153,7 69 1 3a 1.5 ’1‘1
SCHROFF PRODUCT CATALOG 05/2018
7.64 nVent.com/SCHROFF
Plug-in units – with mechanical shielding
|
For PCBs 100 × 160 mm
LKA40520
For PCBs 233.35 × 160 mm
LKA30451
Main Catalogue
•Mechanical protection of the solder side
ORDER INFORMATION
SPQ (standard pack quantity): Part number includes 1 piece,
but delivery is exclusively made in standard pack quantity:
please order at least 10 pieses of PCB covers or a multiple
PCB COVER FOR EUROBOARDS
11092008
Description Qty Part no.
PCB cover (thickness 0.9 mm) for euroboards (100 x
160 mm), PBT, black, max. operating temperature
without permanent deformation 55 °C
1 piece (SPQ
10)
61000-007
PCB cover (thickness 0.9 mm) with similar
temperature expansion coefficients to FR4 PCB; for
euroboards (100 x 160 mm), LCP, UL 94 V-0, white,
max. operating temperature without permanent
deformation 85 °C
1 piece (SPQ
10)
61000-177
PCB cover for double euroboards
(233.35 x 160 mm), PP, UL 94 V-0, black
1 piece (SPQ
10)
61000-012
Slotted flathead screw
M2.5 × 6, height of head 1.2 mm, PU 100 pieces
21102-007
Slotted flathead screw
M2.5 × 12, height of head 1.2 mm, PU 100 pieces
21102-008
2"— m/ent SCHROFF
7.65
Plug-in units – with mechanical shielding
nVent.com/SCHROFF |
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
12303051
Main Catalogue
•Mechanical protection of solder side
•Cover is perforated for better cooling of components
DELIVERY COMPRISES
ORDER INFORMATION
NOTE
•Fixing clips are required for mounting the perforated covers; please order
separately
PCB COVER FOR COMPACTPCI
Item Qty Description
1 1 Cover, plastic, 0.5 mm, antistatic, perforated,
UL 94 V-0;
max. operating temperature 65 °C,
max. continuous operating temperature 55 °C
Height Depth Part no.
Umm
680
24579-039
3160
24579-037
6160
24579-038
Fixing clips PU 100 pieces
21101-914
nVent.com/SCHROFF
©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
CADDY ERICO HOFFMAN RAYCHEM SCHROFF TRACER
Our powerful portfolio of brands:
North America
Warwick, RI, USA
Tel +1.800.525.4682
San Diego, CA, USA
Tel +1.800.854.7086
Europe, Middle East & India
Straubenhardt, Germany
Tel +  
Betschdorf, France
Tel +     
Warsaw, Poland
Tel +    
Hemel Hempstead,
Great Britain
Tel +    
Lainate, Italy
Tel +   
Dubai, United Arab Emirates
Tel +    
Bangalore, India
Tel +  
Istanbul, Turkey
Tel +90 216 250 7374
Asia Pacific
Shanghai, China
Tel +86 21 2412 6943
Singapore
Tel +65 6768 5800
Shin-Yokohama, Japan
Tel +81 45 476 0271

Products related to this Datasheet

MICROSWITCH W/HARNESS/CONECTR
