T-55923GD050J-LW-ABN Specs Datasheet by Kyocera International, Inc.

Spec No. TQSC-SEAFU-E 1YAW02-OU Date August 5. 201 3 TYPE 2 T55923GD050J-LW-ABN Issued Date: August [5 , 2013 {a Ksncena Hlynro LCD Division 2cm WM HERA“; Djw'to TﬂZa/xvfo KgKHIJEERa

Spec No. TQ3C-8EAF0-E1

Y

AW02-00



SPEC

Date

A

ugust 5, 2013

TYPE : T-55923GD050J-LW-ABN

(TCG050VGLP*ANN-AN*02)

< 5.0 inch VGA transmissive color TFT with LED backlight>

KYOCERA DISPLAY CORPORATION

 This specification is subject to change without notice.

Consult Kyocera before ordering.

Original

Issue Date

Designed by: Engineering dept. Confirmed by: QA dept.

Prepared Checked

Approved

Checked

Approved

August 5, 2013

CONTENTS

1. Application

2. Construction and outline

3. Mechanical specifications

4. Absolute maximum ratings

5. Electrical characteristics

6. Optical characteristics

7. Interface signals

8. Input timing characteristics

9. Backlight characteristics

10. Lot number identification

11. Warranty

12. Precautions for use

13. Reliability test data

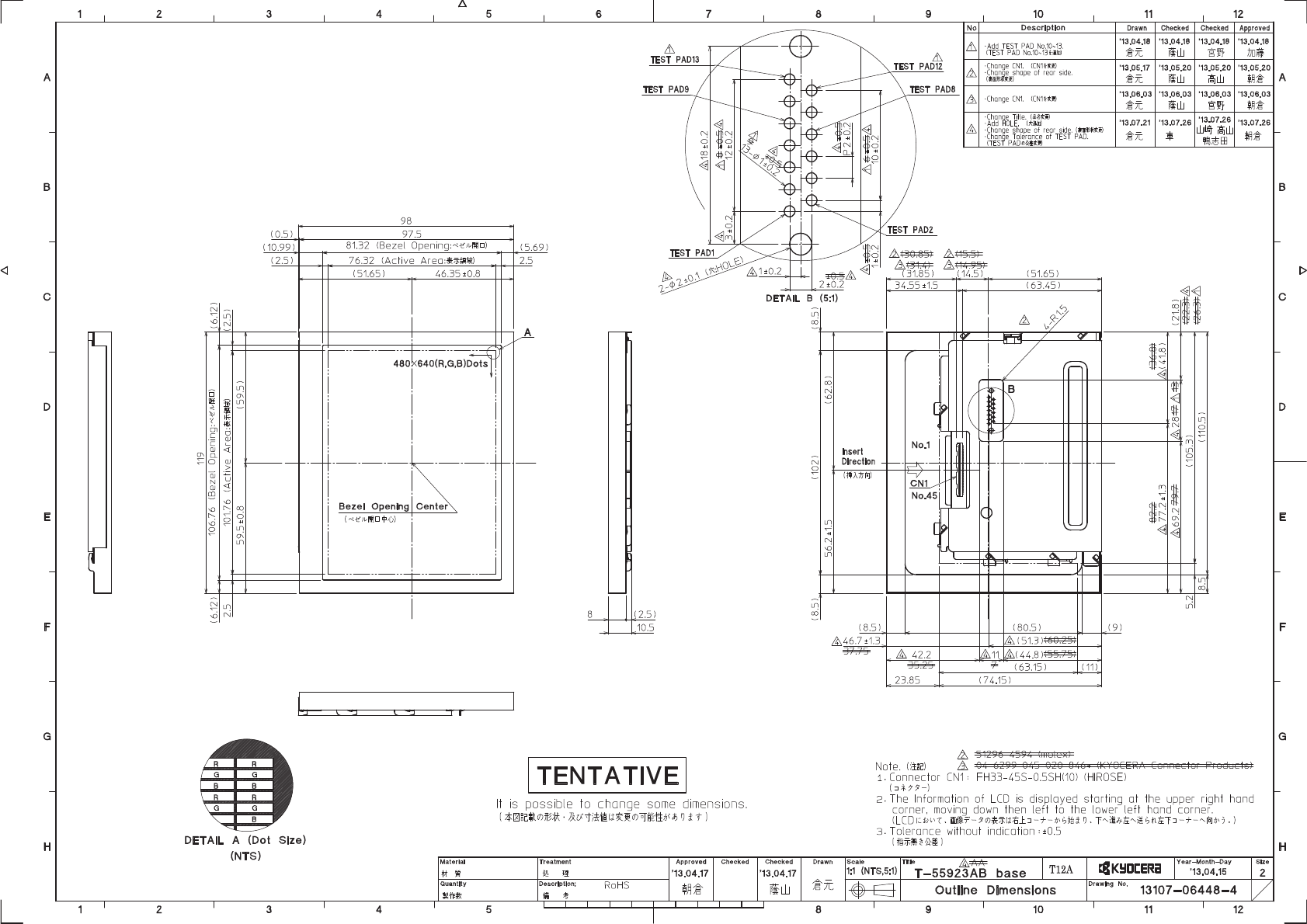

14. Outline drawing

SpuL Nu, PmL Nu, Page {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

-

Warning

1. This Kyocera LCD module has been specifically designed for use only in

electronic devices and industrial machines in the area of audio control,

office automation, industrial control, home appliances, etc. The module

should not be used in applications where the highest level of safety and

reliability are required and module failure or malfunction of such module

results in physical harm or loss of life, as well as enormous damage or loss.

Such fields of applications include, without limitation, medical, aerospace,

communications infrastructure, atomic energy control. Kyocera expressly

disclaims any and all liability resulting in any way to the use of the module

in such applications.

2. Customer agrees to indemnify, defend and hold Kyocera harmless

from and against any and all actions, claims, damages, liabilities,

awards, costs, and expenses, including legal expenses, resulting from or

arising out of Customer's use, or sale for use, or Kyocera modules in

applications.

Caution

1. Kyocera shall have the right, which Customer hereby acknowledges, to

immediately scrap or destroy tooling for Kyocera modules for which no

Purchase Orders have been received from the Customer in a two-year period.

SpuL Nu, PmL Nu, Page i8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

-

Revision record

Date Designed by : Engineering dept. Confirmed by : QA dept.

Prepared Checked Approved Checked Approved

Rev.No. Date Page Descriptions

SpuL Nu, PAIL Nu. Page i8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

1

M407011

1. Application

This document defines the specification of T-55923GD050J-LW-ABN. (RoHS Compliant)

2. Construction and outline

LCD

Backlight system

Polarizer

Additional circuit

: Transmissive color dot matrix type TFT

: LED

: Glare treatment

: Timing controller, Power supply (3.3V input)

(without constant current circuit for LED Backlight)

3. Mechanical specifications

Item Specification Unit

Outline dimensions 1) 98.0(W)×119.0(H)×10.5(D) mm

Active area 76.32(W)×101.76(H)

(12.72cm/5.0 inch(Diagonal)) mm

Dot format 480(W)640×(R,G,B)(H) dot

Dot pitch 0.159(W)×0.053(H) mm

Base color 2) Normally White -

Mass 185 g

1) Projection not included. Please refer to outline for details.

2) Due to the characteristics of the LCD material, the color varies with environmental temperature.

SpuL Nu, PAIL Nu. Page i8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

2

M407011

4. Absolute maximum ratings

4-1.

Electrical absolute maximum ratings

Item Symbol Min. Max. Unit

Supply voltage VDD (-0.3) (4.0) V

Input signal voltage 1) VIN (0) (VDD) V

LED forward current 2) 3) IF - (70) mA

1) Input signal : DCLK, R0㹼R7, G0㹼G7, B0㹼B7, HD, VD, DENA

2) For each “AN-CA”

3) Do not apply reversed voltage.

4-2. Environmental absolute maximum ratings

Item Symbol Min. Max. Unit

Operating temperature 1) TOP (-30) (80) °C

Storage temperature 2) TSTO (-30) (80) °C

Operating humidity 3) HOP (10) 4) %RH

Storage humidity 3) HSTO (10) 4) %RH

Vibration - 5) 5) -

Shock - 6) 6) -

1) Operating temperature means a temperature which operation shall be guaranteed. Since display

performance is evaluated at 25°C, another temperature range should be confirmed.

2) Temp. = (-30)°C㸺(48)h , Temp. = (80)°C㸺(168)h

 Store LCD at normal temperature/humidity. Keep them free from vibration and shock.

An LCD that is kept at a low or a high temperature for a long time can be defective due to

other conditions, even if the low or high temperature satisfies the standard.

(Please refer to “Precautions for Use” for details.)

3) Non-condensing

4) Temp.ӌ(40)°C, (85)%RH Max.

 Temp.㸼(40)°C, Absolute humidity shall be less than (85)%RH at (40)°C.

5)Vibration level 9.8m/s2(1.0G)

Waveform : sinusoidal

Frequency range : 5 to 500Hz

 Frequency sweep rate : 0.5 octave/min

 Duration : one sweep from 5to 500Hz in each of three mutually perpendicular axis(total 3 hours)

6) Acceleration: 1,470 m/s2(150G), Waveform : half sinusoidal wave 2ms

3 times in each direction: ±X, ±Y, ±Z



SpuL Nu, Pdrl Nu. Page 2) Display pattern: Vm) = 3.3V, Temp. = m x 4m 1 D D : 2 D D : 3 D D : ' D D : D D : i D D : 479 D D : 480 D D : (dot) {EKHDEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

3

M407011

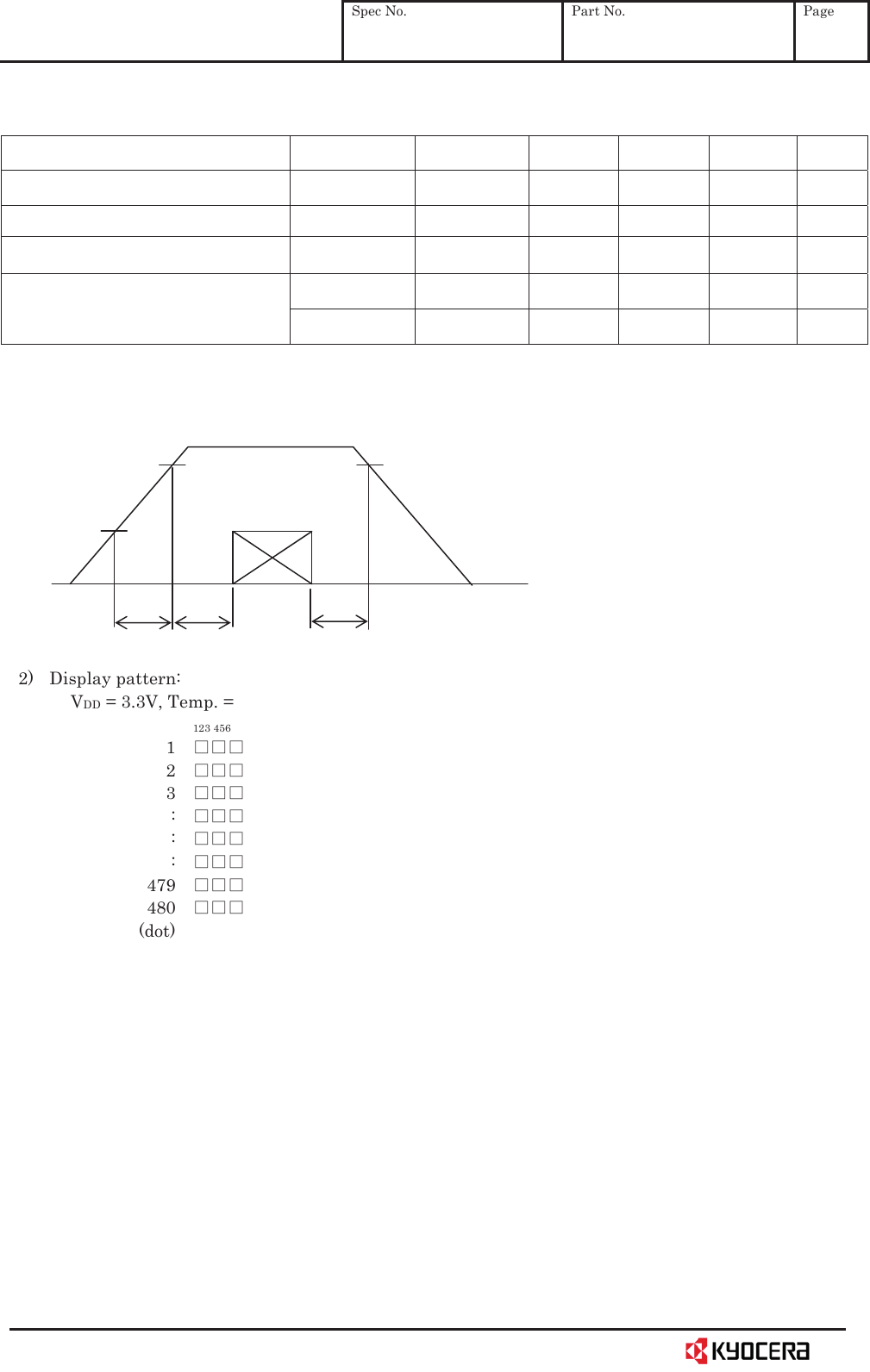

5. Electrical characteristics

  Temp. = (-30)㹼(80)°C

Item Symbol Condition Min. Typ. Max. Unit

Supply voltage 1) VDD - 3.0 3.3 3.6 V

Current consumption IDD 2) - (29.0) (34.0) mA

Permissive input ripple voltage VRP - - - (TBD) mVp-p

Input signal voltage 3) VIL "Low" level (0) - (0.3VDD)V

VIH "High" level (0.7VDD)- (V

DD) V

1) VDD-turn-on conditions

(TBD)㸺t1ӌ(TBD)ms



 (TBD)㸺t2ӌ(TBD)ms



  (TBD)㸺t3ӌ(TBD)s

2) Display pattern:

V

DD = 3.3V, Temp. = 25°C

123 456 789 ࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭࣭1918 1919 1920(dot)

1

2

3

:

479

480

(dot)

ڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧڧ

3) Input signal : DCLK, R0㹼R7, G0㹼G7, B0㹼B7, HD, VD, DENA

3.0V3.0V

0.3V

t1 t2 t3

Signal 3)

SpuL Nu, PAIL Nu. Page {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

4

M407011

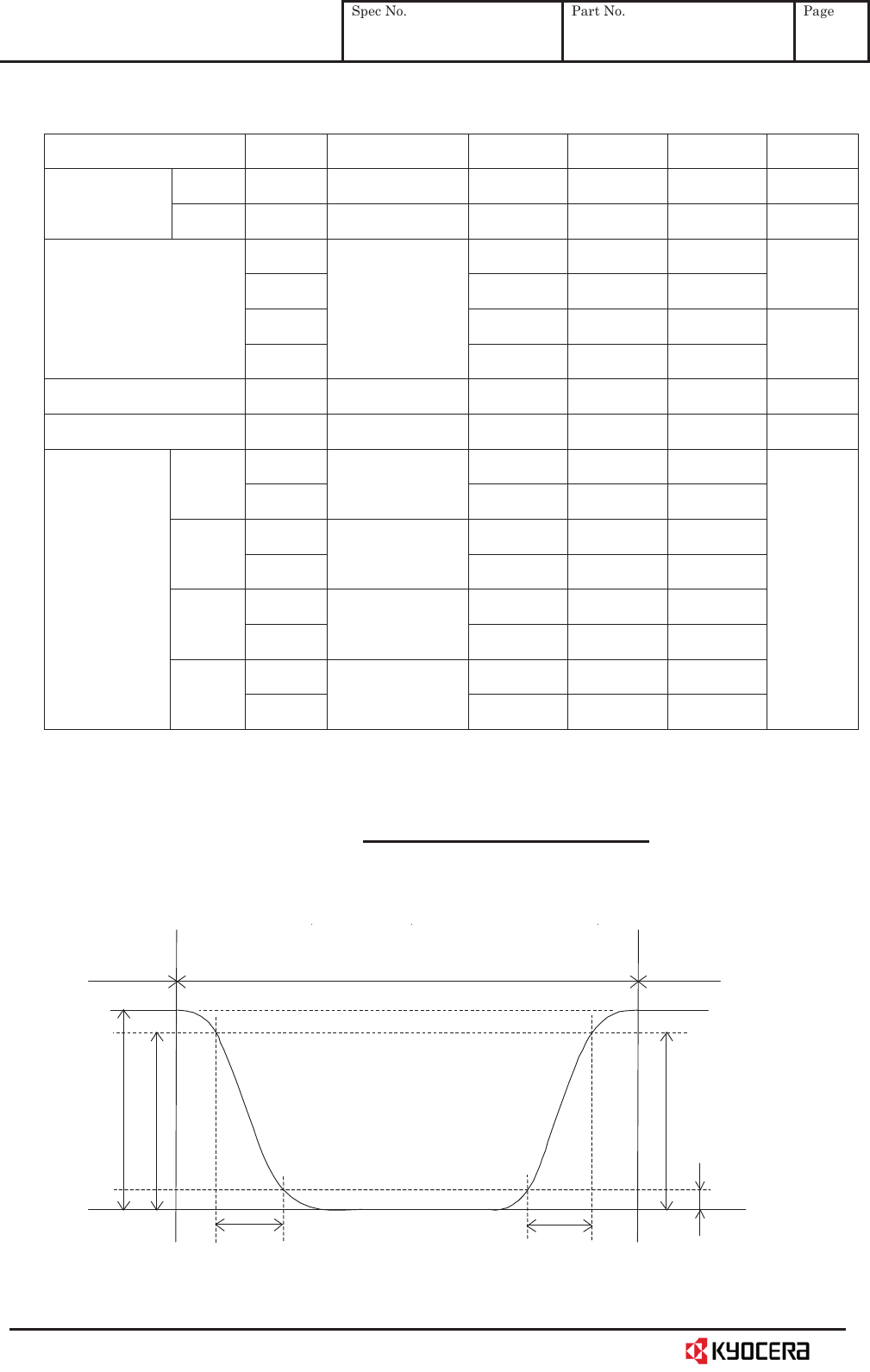

6. Optical characteristics

  Measuring spot =ȭ6.0mm, Temp. = 25°C

Item Symbol Condition Min. Typ. Max. Unit

Response time Rise Ǖ r ȟ=ȭ=0° - (4) - ms

Down Ǖ d ȟ=ȭ=0° - (12) - ms

Viewing angle range

View direction

: 6 o’clock

(Gray inversion)

ȟUPPER

CRӍ10

- (50) -

deg.

ȟLOWER - (60) -

ȭLEFT - (70) -

deg.

䃥RIGHT - (70) -

Contrast ratio CR ȟ=ȭ=0° (350) (500) - -

Brightness L IF=60mA/Line (600) (800) - cd/m2

Chromaticity

coordinates

Red x ȟ=ȭ=0° (0.509) (0.549) (0.589)

-

y (0.316) (0.356) (0.396)

Green x ȟ=ȭ=0° (0.299) (0.339) (0.379)

y (0.499) (0.539) (0.579)

Blue x ȟ=ȭ=0° (0.114) (0.154) (0.194)

y (0.090) (0.130) (0.170)

White x ȟ=ȭ=0° (0.273) (0.313) (0.353)

y (0.289) (0.329) (0.369)

6-1. Definition of contrast ratio

CR(Contrast ratio) 㸻

Brightness with all pixels "White"

Brightness with all pixels "Black"

6-2. Definition of response time

%ULJKWQHVV





ȫG





ȫU

:KLWH %ODFN :KLWH

Spat Nu, Part No. umn do!) 1 20 240 360 16016 320x3-m 480x3 (do!) {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

5

M407011

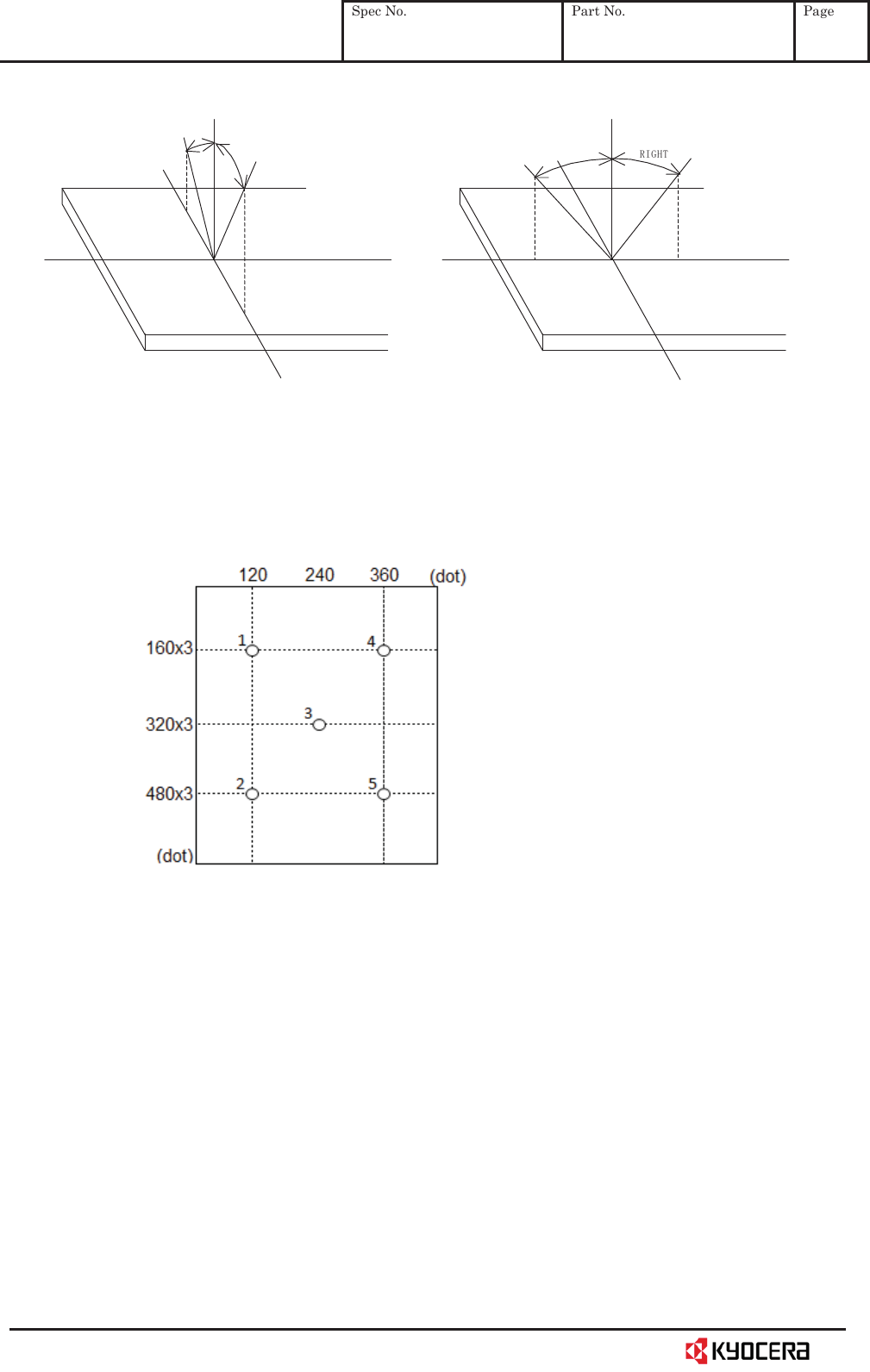

6-3. Definition of viewing angle

6-4. Brightness measuring points

1) Rating is defined as the white brightness at center of display screen(3).

2) 5 minutes after LED is turned on. (Ambient Temp.=25Υ)

[ [

\

\

ȭ

r

ȟ/2:(5

ȟ833(5

[ [

\

ȟ r

ȭ5,*+7

ȭ/()7

ȟGLUHFWLRQ ȭGLUHFWLRQ

\

SpuL Nu, PAIL Nu. Page i8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

6

M407011

7. Interface signals

7-1. Interface signals

No. Symbol Description I/O Note

1 GND

GND -

2 DCLK

Clock signal for sampling each data signal I

3 GND

GND -

4 HD

Horizontal synchronous signal I

5 VD

Vertical synchronous signal I

6 GND

GND -

7 R0

RED data signal (LSB) I

8 R1

RED data signal I

9 R2

RED data signal I

10 R3

RED data signal I

11 R4

RED data signal I

12 R5

RED data signal I

13 R6

RED data signal I

14 R7

RED data signal (MSB) I

15 GND

GND -

16 G0

GREEN data signal (LSB) I

17 G1

GREEN data signal I

18 G2

GREEN data signal I

19 G3

GREEN data signal I

20 G4

GREEN data signal I

21 G5

GREEN data signal I

22 G6

GREEN data signal I

23 G7

GREEN data signal (MSB) I

24 GND

GND -

25 B0

BLUE data signal (LSB) I

26 B1

BLUE data signal I

27 B2

BLUE data signal I

28 B3

BLUE data signal I

29 B4

BLUE data signal I

30 B5

BLUE data signal I

31 B6

BLUE data signal I

32 B7

BLUE data signal (MSB) I

33 GND GND -

34 DENA Signal to settle the horizontal display position I 1)

35 NC No connect -

36 VDD 3.3V power supply -

37 VDD 3.3V power supply -

38 NC No connect -

39 NC No connect -

40 SC Scan direction control I 2)

41 NC No connect -

42 CA1 Cathode 1 -

43 CA2 Cathode 2 -

44 AN2 Anode 2 -

45 AN1 Anode 1 -

LCD connector 㸸 FH33-45S-0.5SH(10) (HIROSE)

Recommended FFC or FPC 㸸 0.5mm pitch

Spuc Nu, Pm Nu. Page TEST Interface Signal Nu. Symbol 1 14 R7(MSB) 2 1 GNU 3 23 G7(MSB) 4 2 DCLK 5 32 max/1515) 6 4 up 7 34 DENA 8 5 VD 9 36 v 10 42 CA1 11 43 CA2 12 44 AN2 13 45 ANl {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

7

M407011

1) The horizontal display start timing is settled in accordance with a rising timing of ENAB signal.

In case ENAB is fixed "Low", the horizontal start timing is determined.

Don't keep ENAB "High" during operation.

2)TBD

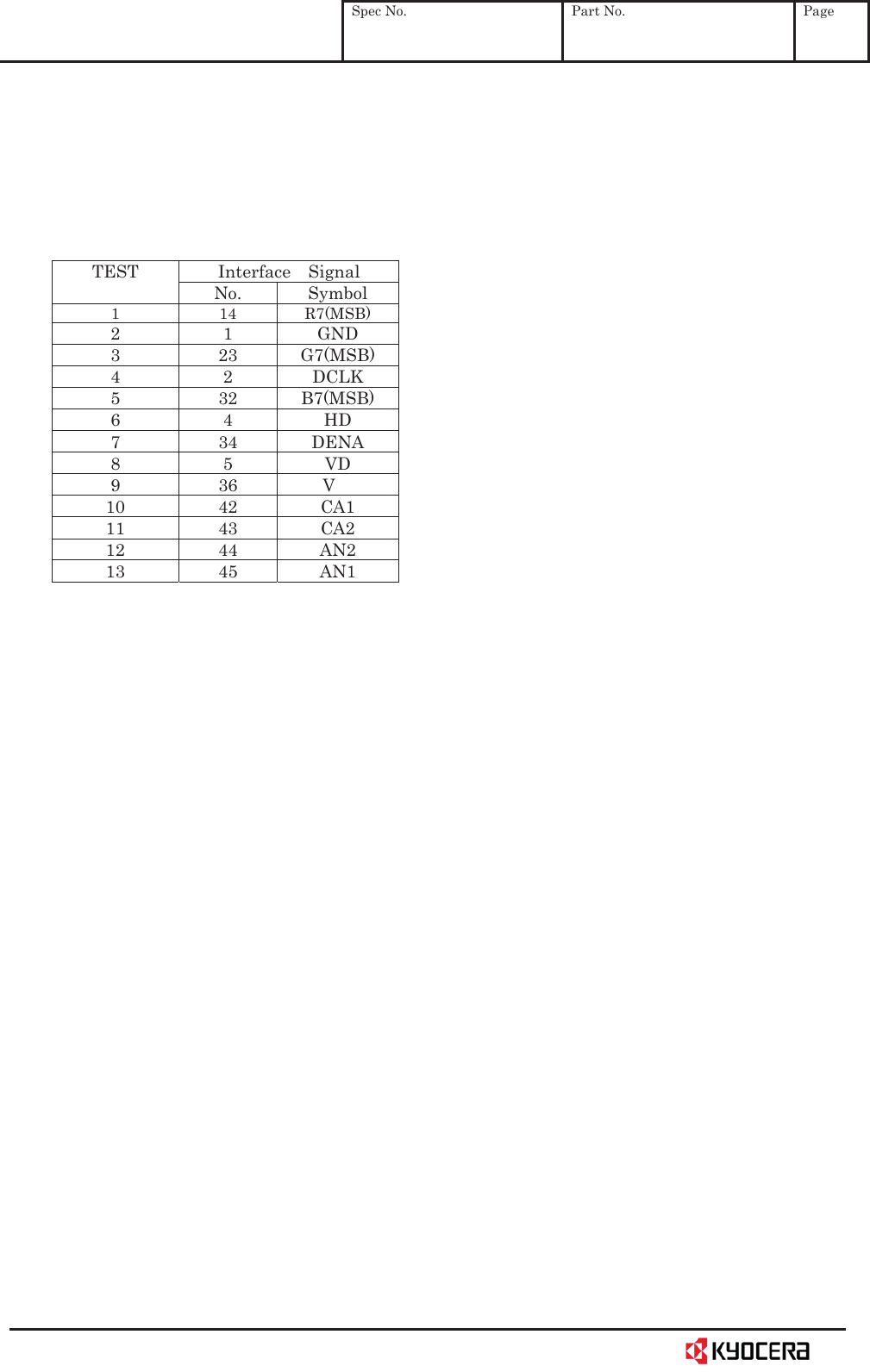

7-2. Test Pad

TEST

PADNo.

InterfaceSignal

No. Symbol

1 14 R7(MSB)

2 1 GND

3 23 G7(MSB)

4 2 DCLK

5 32 B7(MSB)

6 4 HD

7 34 DENA

8 5 VD

9 36 VDD

10 42 CA1

11 43 CA2

12 44 AN2

13 45 AN1

SpuL Nu, Pan Nu. Page D480, DHII . In, um D7. Dm DI. DHI I33, ma D7. ma DI. DHZ . I I I I I R I G I a I I I I I I I 1 D 1, mm {EKHDEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

8

M407011

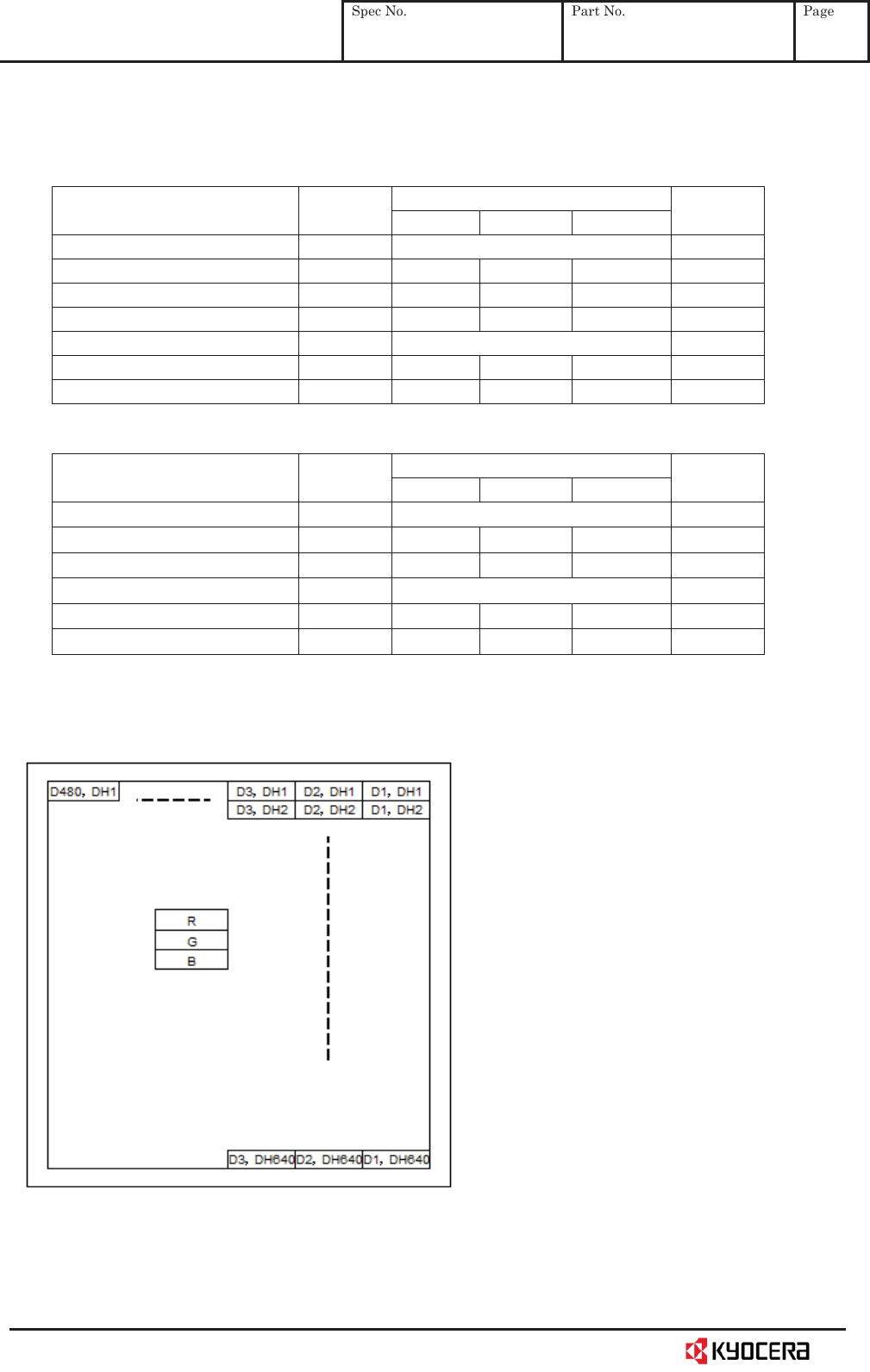

8. Input timing characteristics

8-1. Timing characteristics

1) Horizontal timing

Parameter Symbol Spec. Unit

Min. Typ. Max.

Horizontal Display Area thd 640 DCLK

DCLK frequency fclk - 24 50 MHz

One Horizontal Line th 㻌 760 㻌 DCLK

HS pulse width thpw 1 48 255 DCLK

HS Back Porch (Blanking) thb 88 DCLK

HS Front Porch thfp 1 32 255 DCLK

DE mode Blanking th-thd 85 120 512 DCLK

2) Vertical timing

Parameter Symbol Spec. Unit

Min. Typ. Max.

Vertical Display Area tvd 480 TH

VS period time tv 513 525 767 TH

VS pulse width tvpw 3 3 255 TH

VS Back Porch (Blanking) tvb 32 TH

VS Front Porch tvfp 1 13 255 TH

DE mode Blanking tv-tvd 4 45 255 TH

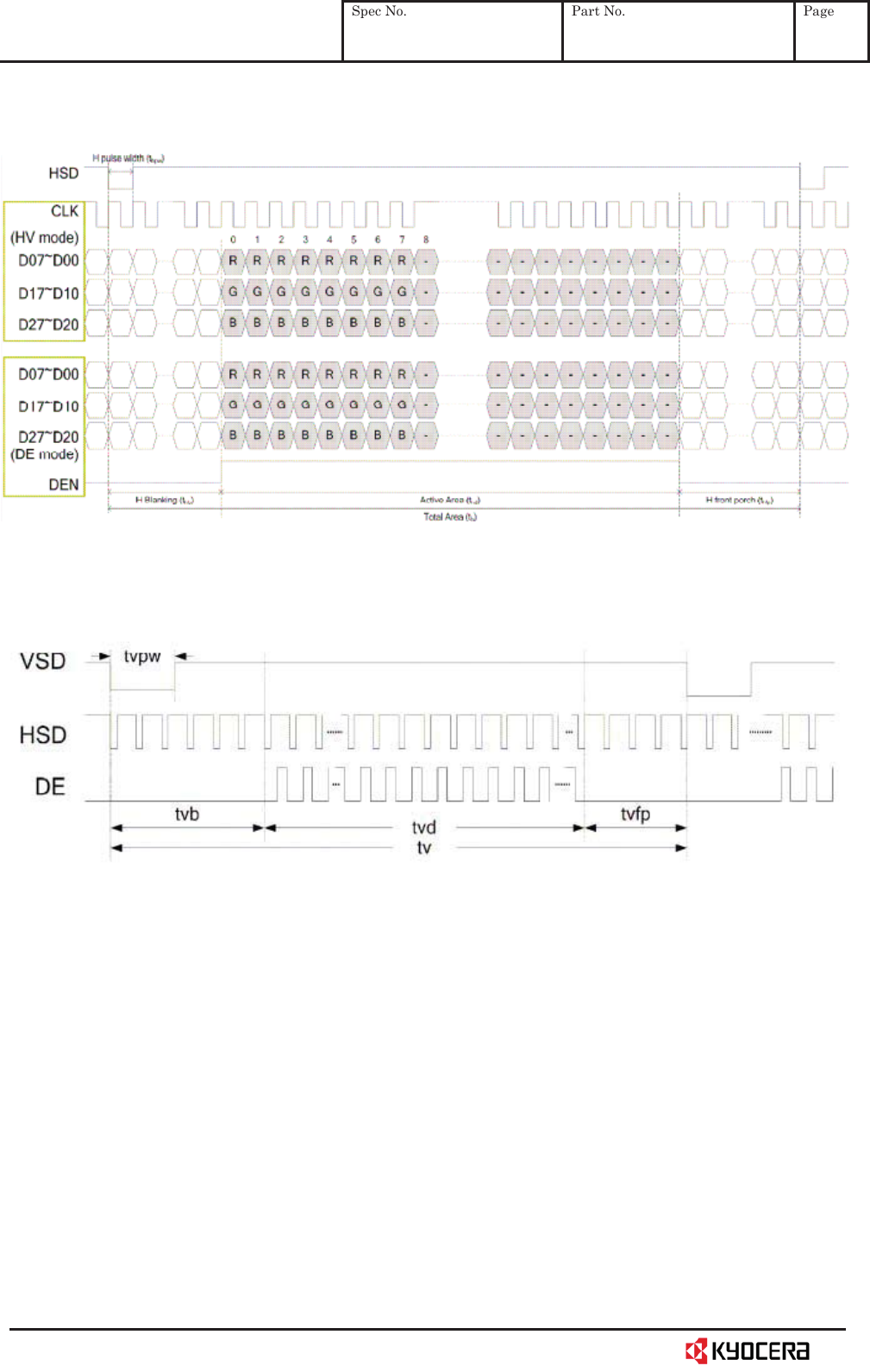

8-2. Input Data Signals and Display position on the screen



Spec No. Pm No. Page Human; HSD L > L \ CLK ‘ L 1 (HVmode) ﬁ'i’dASé‘l Do7'D00 i L vR'RLR RvR‘,R avn L , ....... I , 017‘D10 'G'G‘G ma G GLG- ‘ 027—920 3'??? 1????" Burma f L:R,nrn RARRRLR ; 917-910 ‘ ‘ raca‘a c‘o a ma.— ozrpzo g L=B«BLBBLBBBrB.-‘ (.g (DEmoae) ‘ ‘ DEN L . _, ngagyﬁm LL LLLLL 7 L ,, LL 1.2m.” “mm” 1mg 7 V W 7 7' 7' 77 7“ WV 7 7 7 V VSD > lva < l="" hsd,,,,,,,="" l="" ------="" ,,="" de="" lj="" 1th=""><>< ivd="">4 Mp . . lv , :8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

9

M407011

8-3. Input timing characteristics

1) Horizontal timing

2) Horizontal timing

SpuL Nu, PAIL Nu. Page i8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

10

M407011

9. Backlight characteristics

Item Symbol Min. Typ. Max. Unit Note

Forward current 1) IF - (60) - mA Ta=-30㹼80°C

Forward voltage 1) VF

- (19.7) (21.6) V

IF=60mA, Ta=-30Υ

- (18.4) (20.4) V

IF=60mA, Ta=25Υ

- (17.8) (19.7) V

IF=60mA, Ta=80Υ

Operating life time 2), 3) T - (50,000) - h IF=60mA, Ta=25Υ

1) For each “AN-CA”

2) When brightness decrease 50% of minimum brightness.

The average life of a LED will decrease when the LCD is operating at higher temperatures.

3) Life time is estimated data.(Condition : IF=60mA, Ta=25Υ in chamber).

4) An input current below 15mA may reduce the brightness uniformity of the LED backlight. This

is because the amount of light from each LED chip is different. Therefore, please evaluate carefully

before finalizing the input current.



Spa Nu, Pan Nu. Page EDGE LLB: {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

11

M407011

10. Lot number identification

The production lot number is specified as follows.

ڧڧ ڧ ڧ ڧ ڧ – ڧ ڧڧ

Factory Control Number(ᕤሙ⟶⌮␒ྕ)㸦0㹼99㸧

Data of the Week(〇㐀᭙᪥)(A㹼G)

Factory Number(ศᕤሙ␒ྕ)(0㹼9)

Factory Code(ᕤሙグྕ)(Alphabet)

Production Week(〇㐀㐌)(1㹼5)

Production Month(〇㐀᭶)(1㹼9, X, Y, Z)

Production year(〇㐀ᖺ)(Lowe 2 digits / すᬺᖺᩘୗ 2᱆)

11. Warranty

11-1. Incoming inspection

Please inspect the LCD within one month after your receipt.



11-2. Production warranty

Kyocera warrants its LCD’s for a period of 12 months from the ship date. Kyocera shall, by mutual

agreement, replace or re-work defective LCD’s that are shown to be Kyocera’s responsibility.

Spa Nu, Pan Nu. Page DO NOT {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

12

M407011

12. Precautions for use

12-1. Installation of the LCD

1) Please ground either of the mounting (screw) holes located at each corner of an LCD,

in order to stabilize brightness and display quality.

2) A transparent protection plate shall be added to protect the LCD and its polarizer

3) The LCD shall be installed so that there is no pressure on the LSI chips.

4) The LCD shall be installed flat, without twisting or bending.

5) A transparent protection sheet is attached to the polarizer. Please remove the protection film

slowly before use, paying attention to static electricity.

12-2. Static electricity

1) Since CMOS ICs are mounted directly onto the LCD glass, protection from static electricity is

required.

2) Workers should use body grounding. Operator should wear ground straps.

12-3. LCD operation

1) The LCD shall be operated within the limits specified. Operation at values outside of these limits

may shorten life, and/or harm display images.

12-4. Storage

1) The LCD shall be stored within the temperature and humidity limits specified.

Store in a dark area, and protect the LCD from direct sunlight or fluorescent light.

2) Always store the LCD so that it is free from external pressure onto it.

12-5. Usage

1) DO NOT store in a high humidity environment for extended periods. Polarizer degradation bubbles,

and/or peeling off of the polarizer may result.

2) The front polarizer is easily scratched or damaged. Prevent touching it with any hard material, and

from being pushed or rubbed.

3) The LCD screen may be cleaned by wiping the screen surface with a soft cloth or cotton pad using a

little Ethanol.

4) Water may cause damage or discoloration of the polarizer. Clean condensation or moisture from

any source immediately.

5) Always keep the LCD free from condensation during testing. Condensation may permanently spot

or stain the polarizer.

6) Do not disassemble LCD because it will result in damage.

7) This Kyocera LCD has been specifically designed for use in general electronic devices, but not

for use in a special environment such as usage in an active gas. Hence, when the LCD is supposed

to be used in a special environment, evaluate the LCD thoroughly beforehand and do not expose

the LCD to chemicals such as an active gas.

8) Please do not use solid-base image pattern for long hours because a temporary afterimage may

appear. We recommend using screen saver etc. in cases where a solid-base image pattern must

be used.

9) Liquid crystal may leak when the LCD is broken. Be careful not to let the fluid go into your eyes

and mouth. In the case the fluid touches your body; rinse it off right away with water and soap.

SpuL Nu, PAIL Nu. Page High Lump. atmosphere Contact discharge {EKHEIEEREI

Spec No.

TQ3C-8EAF0-E1YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

13

M407011

13. Reliability test data



Test item Test condition Test time Judgement

High temp.

atmosphere 80°C 240h

Display function

Display quality

: No defect

Low temp.

atmosphere -30°C 240h

Display function

Display quality

: No defect

High temp.

humidity

atmosphere

40°C 90% RH 240h Display function

Display quality

: No defect

Temp. cycle -30°C

80°C

1.0h

0.5h 100cycles Display function

Display quality

: No defect

High temp.

operation 80°C 240h

Display function

Display quality

: No defect

ESD

Contact discharge

(Operation)

150pF, 330Ȑ,s8kV

10 times at 1

sec interval

Display function

Display quality

: No defect

ESD

Signal pin discharge

(Non-operation)

200pF,0Ȑ,s200V

10 times at 1

sec interval

Display function

Display quality

: No defect

1) Each test item uses a test LCD only once. The tested LCD is not used in any other tests.

2) The LCD is tested in circumstances in which there is no condensation.

3) The reliability test is not an out-going inspection.

4) The result of the reliability test is for your reference purpose only.

 The reliability test is conducted only to examine the LCD's capability.

a 4 5 s 7 ‘ a ‘ 9 ‘ 10 n ‘ ‘2 w nmnm WU. cum. cm“ Awuved 4 m... wanna WU. mm. A ‘6 Km 3 I?! 5 mm L ‘1:.u5.2n mm mm Km am ii? 151 m [A W Us“ w“ w:. .u: “Luau: wmm ’ ‘ ‘ m E!) ii? ‘ U, “U U U a: m mm “357.2: mm “3.37.25 ‘ U73?" U.;ng¥‘n:!‘“‘ e i ““3 E” s? VEsv‘ ‘ngu ' ‘ ’ ’ F?& U»; 2/ : my m1 81:7 UUUUUUUUUU w :50 Am Uﬁ: F34 mm»; A 1: LC ' Aggy: ’&:V \r w, 5155‘ :4 15:45‘ , 1 T T puma) $1; Q: E ‘7? ‘ ‘ ‘ w .; ' r \ \ 32- U ‘ i ‘ i A U , m a 2 NW , «, : WU 5 f g F ‘3‘”? ;, v (z): 0 / m L“: U ’A'x ”U, _ G TENT ATIVE “Zr“. 3? ‘R— 2 Tm hlmam 7" LC: w 1,. arm m w: J) , ngm Mr: G a 7 Um Um UUUU U U U. UVU t a m; mm] U U WU , UUU‘ ‘ i — Um ( H mm, ,nun AU‘) DETAIL ATﬁoI Slze) (NTs) mm. cm. m. 4; WWW, 5.. M}? u u , 'Iam." mm T—55923AB base hm ﬁKHDEERi was 2 :2; T”? “”H’ 61;; Em aumne Dlmenslons ”WW 13107—06443—4 J A w 5 I_A_A_A_A_r_l_l_l_l_l a x 9 x m x n x 12

Spec No. TQM}-SEAFU-EZYAWOZ-Ol] Date August 5. 201 3 KYOCERA INSPECTION STANDARD TYPE 2 T55923GDO5OJ-LW-ABN 90%“ KWM‘ MEN“; 0 5m; T aka/71730 {EKHDEEREI

 

Spec No. TQ3C-8EAF0-E2

Y

AW02-00

Date

A

ugust 5, 2013

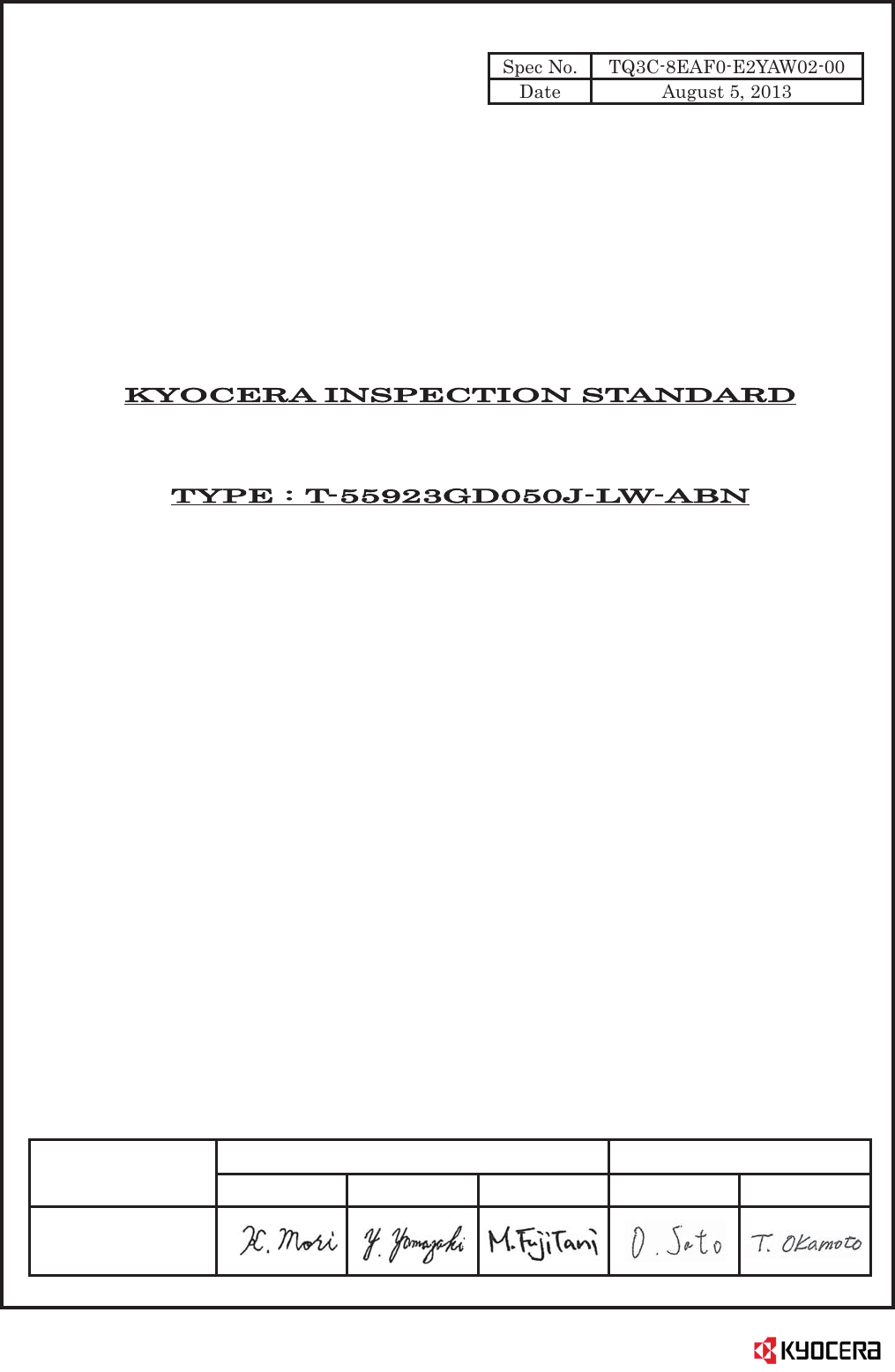

KYOCERA INSPECTION STANDARD

TYPE : T-55923GD050J-LW-ABN

(TCG050VGLP*ANN-AN*02)

KYOCERA DISPLAY CORPORATION

Original

Issue Date

Designed by : Engineering dept. Confirmed by : QA dept.

Prepared Checked

Approved

Checked

Approved

August 5, 2013

5ch Nu PAIL Nu. Page i8 K':IEIEEREI

Spec No.

TQ3C-8EAF0-E2YAW02-00

Part No.

T-55923GD050J-LW-ABN

Page

-

Revision record

Date Designed by : Engineering dept. Confirmed by : QA dept.

Prepared Checked Approved Checked Approved

August 5, 2013

Rev.No. Date Page Descriptions

Spa: Nu Part Nu, Pm ¢:(2\ +b)/Z {EKHEIEEREI



Spec No.

TQ3C-8EAF0-E2YAW02-00

Part No.

7*'-/:$%1

Page

1



 

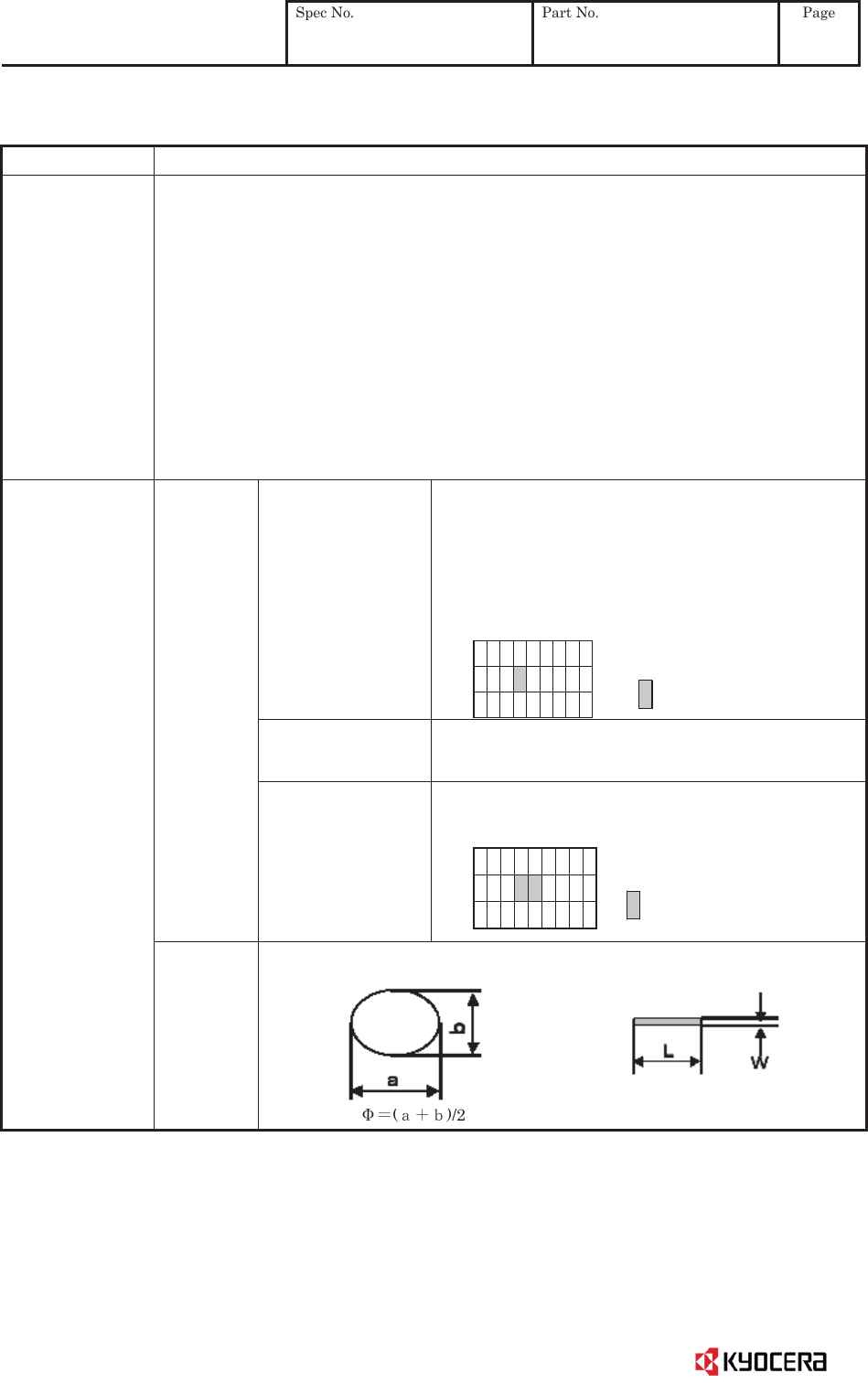

Visuals specification

1) Note

Note

General 1. Customer identified anomalies not defined within this inspection standard shall be

reviewed by Kyocera, and an additional standard shall be determined by mutual

consent.

2. This inspection standard about the image quality shall be applied to any defect within

the active area and shall not be applicable to outside of the area.

3. Inspection conditions

Luminance

Inspection distance

Temperature

Direction

: 300㹼500 Lux min.

: 350 mm.

: Approximate 25Υ

: Normal to the LCD panel s10rhorizontal and

vertical

Definition of

inspection item

Dot defect Bright dot defect The dot is constantly “on” when power applied to the

LCD, even when all “Black” data sent to the screen.

Inspection tool: 5% Transparency neutral density filter.

Count dot: If the dot is visible through the filter.

Don’t count dot: If the dot is not visible through the

filter.

䠮䠣䠞䠮䠣䠞䠮䠣䠞

䠮䠣䠞䠮䠣䠞䠮䠣䠞 

dot defect

Black dot defect The dot is constantly “off” when power applied to the

LCD, even when all “White” data sent to the screen.

Adjacent dot Adjacent dot defect is defined as two or more bright dot

defects or black dot defects.

䠮䠣䠞䠮䠣䠞䠮䠣䠞



dot defect

Definition

of size

Definition of circle size

ȍ㸻(㹟㸩㹠)/2

Definition of linear size

Spa: Nu Pmt Nu, Pm i8 K':IEIEEREI



Spec No.

TQ3C-8EAF0-E2YAW02-00

Part No.

7*'-/:$%1

Page

2



 

2) Standard

Defect Type Limit

Visual defect Scratch 0.01 mm < W ӌ 0.05 mm

L ӌ 10 mm

N ӌ 4

0.01 mm < W

10mm < L

N = 0

0.05 mm < W N = 0

Dent 0.2 mm < ȍ ӌ 0.4 mm N ӌ 4

0.4 mm < ȍ N = 0

Black spot bubble 0.2 mm < ȍ ӌ 0.4 mm N ӌ 5

0.4 mm < ȍ N = 0

Lint L ӌ 3 mm

W ӌ 0.1 mm

N ӌ 4

3 mm ӌ L

W ӌ 0.1 mm

N = 0

0.1 mm < W According to Black spot

Electrical defect Bright dot N ӌ 5

Dark dot N ӌ 5

Total dot N ӌ 8

Two adjacent dot

Bright dot

Dark dot

ӌ 2 pairs

Three or more

adjacent dot

Not allowed

Line defect Not allowed

Moire All Moire is out of inspection.

T-55923GD050J-LW-ABN Specs Datasheet by Kyocera International, Inc.

Products related to this Datasheet
